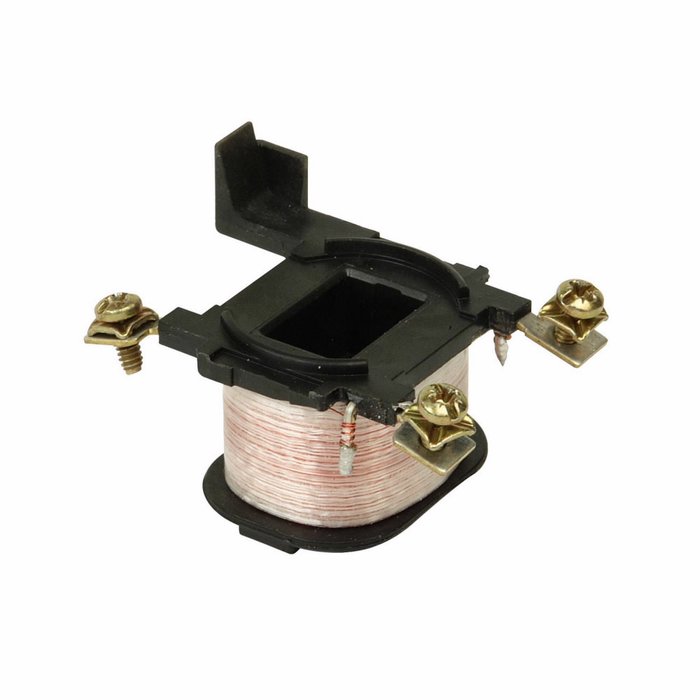

Eaton Freedom Series Replacement Coil, 120/110V, 60/50 Hz

Eaton Freedom Series Replacement Coil, 120/110V, 60/50 Hz

(No reviews yet) Write a Review

Model: 9-2876-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Freedom Series Replacement Coil, 120/110V, 60/50 Hz

The Eaton Freedom Series Replacement Coil is a motor control renewal part engineered for use with Eaton Freedom contactors and starters (NEMA 0, IEC D-F). Rated 120/110V at 60/50 Hz, this compact coil measures approximately 1.8" wide, 1.8" long/deep, and 2.1" high, making it a precise fit for field replacement in existing Freedom-series control assemblies. Designed as a genuine Eaton renewal part, it restores reliable coil operation without replacing the entire contactor or starter.

Key Features

  • Voltage/Frequency Rating: 120/110V, 60/50 Hz coil rating for accurate voltage matching on replacement.
  • Compatibility: Used with Eaton Freedom (NEMA 0, IEC D-F) contactors and starters for a proper fit.
  • Compact Dimensions: Approximately 1.8" wide x 1.8" long/deep x 2.1" high for straightforward installation in existing enclosures.
  • Renewal Part Type: Genuine Eaton Renewal Parts/Accessories coil for authentic fit, form, and function.
  • Backed by Warranty: Covered under Eaton Selling Policy 25-000 -- one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.

Technical Specifications

  • Product Type: Coil
  • Used with: Freedom (NEMA 0, IEC D-F)
  • Product Width: 1.8 in
  • Product Length/Depth: 1.8 in
  • Product Height: 2.1 in
  • Type: Renewal Parts/Accessories
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.

Typical Applications

  • Motor Control Center (MCC) Maintenance and Repair
  • Contactor and Starter Coil Replacement
  • Industrial Motor Control Panels
  • Commercial and Industrial Electrical Facilities
  • Preventive Maintenance Programs for Freedom-Series Equipment

Why Eaton?

Eaton renewal parts are engineered to the same specifications as original equipment, ensuring this replacement coil delivers dependable, code-compliant performance when servicing Freedom-series contactors and starters. Choosing genuine Eaton components helps maintain the reliability of motor control systems in demanding industrial and commercial environments.

Manufacturer Resources

Product Specs

Product Width:
1.8 in
Used with:
Used with Freedom (NEMA 0, IEC D-F)
Product Length/Depth:
1.8 in
Product Height:
2.1 in
Product Type:
Coil
Certifications:
Not Applicable
Department:
Electrical
Voltage Rating:
120/110V
Series:
Freedom
Product Group:
Wiring Devices
Product Subgroup:
Circuit Breakers

Eaton 9-2876-1 – Frequently Asked Questions

1) Which Eaton contactors and starters does the 9-2876 Freedom Series replacement coil fit?
The 9-2876 coil is a renewal part for Eaton Freedom contactors and starters in NEMA size 0 and IEC frames D through F. It drops into the existing coil pocket on those units, so you repair the starter instead of pulling and rewiring the whole assembly. If your Freedom unit is a larger NEMA size or an IEC frame outside D-F, this is not the coil for it.
2) What coil voltages can I order for the Eaton Freedom 9-2876 coil?
Three coil voltages are offered: 110 volts (9-2876-1), 220 volts (9-2876-2), and 415 volts (9-2876-6). Pick the one that matches your control circuit voltage, not the motor line voltage. The catalog rating on the 110 volt version is 120/110V at 60/50 Hz, so it covers a standard 120V 60 Hz North American control circuit as well as 110V 50 Hz.
3) Will a 120V control circuit work with the 110V Freedom coil, or do I need a separate part?
One part covers both. The coil is rated 120/110V at 60/50 Hz, meaning it is built for 120V 60 Hz service and 110V 50 Hz service alike. A panel fed from a 120V control transformer takes the 9-2876-1. There is no separate 120V-only version to look for.
4) Will this Eaton coil fit inside my existing MCC bucket without modifying the enclosure?
The coil measures 1.8 inches wide by 1.8 inches long/deep by 2.1 inches high, which is the same envelope as the coil already in a Freedom NEMA 0 or IEC D-F starter. Because it is a genuine Eaton renewal part built to original fit and form, it seats in the existing pocket in the bucket with no enclosure work.
5) My contactor hums or won't pull in. Is replacing the coil enough, or do I need a whole new starter?
A coil that has failed open, shorted, or is being fed the wrong control voltage is a coil-only repair. The 9-2876 is sold as a renewal part specifically so Freedom NEMA 0 and IEC D-F contactors and starters can be restored without replacing the complete unit. If the contacts are pitted or welded, that is a separate contact kit, not a coil problem.
6) Which Eaton coil do I order for a 415V 50 Hz control circuit on a Freedom starter?
That is the 9-2876-6, the 415 volt option in the range. It is the highest coil voltage offered on this part, typically used on export or 50 Hz installations where the control circuit runs at line voltage rather than through a step-down transformer.
