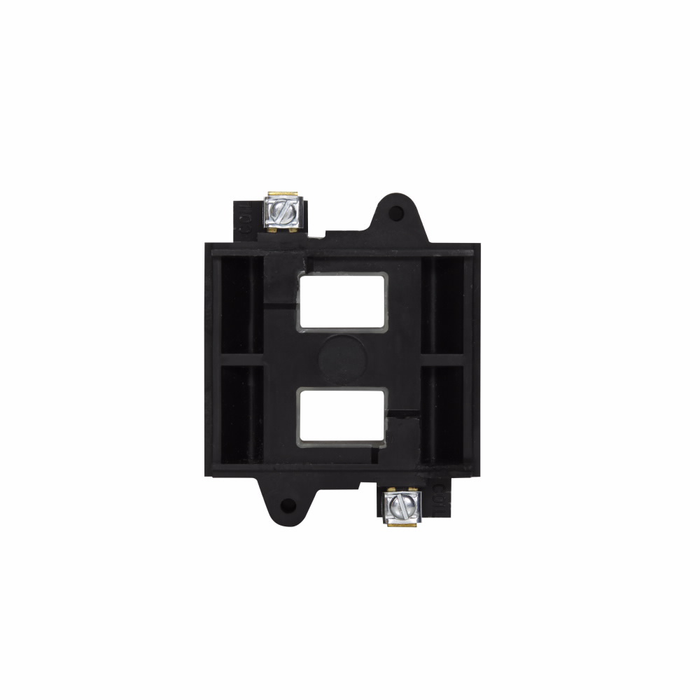

Eaton AR Type Relay Replacement Coil, 120V/60Hz or 110V/50Hz
The Eaton AR Type Relay Replacement AC Coil is a renewal part designed to restore proper operation to Eaton AR type relays used within A200, A210, and A250 size 6 two- or three-pole non-reversing or reversing motor controllers. This dual-rated coil operates at 120V/60Hz or 110V/50Hz, making it a versatile replacement for both 60Hz and 50Hz control systems. Compact in size, the coil measures 3.8 in wide, 4.9 in long/deep, and 2 in high, allowing it to fit directly into existing AR type relay housings without modification.
Key Features
- Dual Voltage/Frequency Rating: Rated 120V/60Hz or 110V/50Hz, allowing use in both 60Hz and 50Hz control applications.
- Compact Coil Dimensions: 3.8 in wide x 4.9 in long/deep x 2 in high for a direct fit into AR type relay assemblies.
- Renewal Part Design: Classified as a Renewal Parts/Accessories item, engineered specifically as a like-for-like replacement AC coil.
- Motor Controller Compatibility: Intended for use with Eaton A200, A210, and A250 size 6 two- or three-pole non-reversing or reversing motor controllers.
- AC Coil Construction: Purpose-built AC coil for AR type relays, supporting reliable pickup and holding performance in control circuits.
Technical Specifications
- Product Width: 3.8 in
- Product Length/Depth: 4.9 in
- Product Height: 2 in
- Warranty: Not Applicable
- Product Type: Coil
- Department: Electrical
- Type: Renewal Parts/Accessories
Typical Applications
- Maintenance and Repair of Eaton AR Type Relays
- A200, A210, and A250 Size 6 Motor Controller Servicing
- Non-Reversing and Reversing Motor Control Circuits
- Commercial and Industrial Motor Control Panels
- Renewal Parts Inventory for Motor Control Equipment
Why Eaton?
Eaton engineers renewal parts like this AR type relay replacement coil to match original equipment fit and function, helping maintenance teams restore motor controllers to reliable operation without full relay replacement. Backed by Eaton's documented instructions for A200, A210, and A250 size 6 motor controllers, this coil is a straightforward, code-compliant option for keeping industrial motor control circuits running.
Manufacturer Resources
Product Specs
- Product Width:
- 3.8 in
- Warranty:
- Not Applicable
- Product Length/Depth:
- 4.9 in
- Product Height:
- 2 in
- Product Type:
- Contactor Coil
- Certifications:
- Not Applicable
- Department:
- Electrical
- Voltage Rating:
- 120V/60Hz or 110V/50Hz
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Contactors & Relays
- Product Weight:
- 0.5 lb
- Product Length:
- 4.9 in
Eaton 176C663G01 – Frequently Asked Questions
1) Will a 120V coil for an Eaton AR relay work on a 50Hz control circuit?
Yes. The Eaton AR type replacement coil is dual rated at 120V/60Hz or 110V/50Hz, so the same part covers a 120 volt 60 hertz control circuit and a 110 volt 50 hertz one. Confirm your control transformer secondary matches one of those two before ordering.
2) Can a Square D Type S replacement coil be used in place of the Eaton 176C663G01 AR type relay coil?
No. The Eaton 176C663G01 is an AC coil built as a like-for-like renewal part for Eaton AR type relays used in A200, A210 and A250 size 6 two- or three-pole non-reversing or reversing motor controllers, and it is rated 120V/60Hz or 110V/50Hz. The Square D 31041400 series coil is a Type S replacement coil rated 24VAC 60Hz for NEMA size 00, 0 and 1 starters. Different control voltage and a different starter line, so the two are not interchangeable - match the coil to the contactor or relay family it was built for.
3) What part number do I order for an Eaton AR relay coil at 120 volts?
Order Eaton 176C663G01. That single model number covers the AR type relay AC coil rated 120V/60Hz or 110V/50Hz, so there is no separate voltage or frequency suffix to specify.
4) What size is the Eaton AR relay replacement coil?
The coil measures 3.8 in wide, 4.9 in long/deep, and 2 in high. Those are the figures to check against the space inside your AR relay assembly and the panel gutter around it if the controller is tightly packed.
