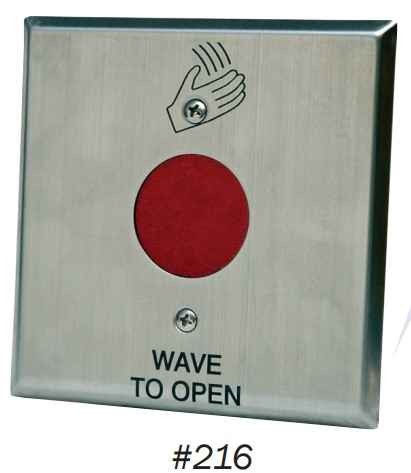

MS Sedco 216 Series Infrared Touchless Switch for Automatic Door Activation

MS Sedco 216 Series Infrared Touchless Switch for Automatic Door Activation

The MS Sedco 216 Series Infrared Touchless Switch is an active infrared, microprocessor-controlled device engineered to activate full and low energy automatic doors without physical contact. Operating on 12V to 24V AC or DC power, this switch delivers ADA-compliant, hands-free operation ideal for handicap accessibility, Knowing Act Doors, bathroom doors, and clean room environments where a sterile, touchless interface is essential. Selectable failsafe/failsecure modes and an adjustable reaction time of up to 1 second provide flexible, reliable performance across a wide range of commercial access control applications.

Key Features

• Flexible Power Input: Operates on 12V to 24V AC or DC, accommodating a wide range of commercial power supply configurations.
• Adjustable Reaction Time: Reaction time is adjustable up to 1 second, allowing fine-tuned responsiveness to match specific door and traffic requirements.
• Selectable Failsafe / Failsecure Operation: Field-selectable failsafe and failsecure modes allow the switch to be configured to meet specific security and life-safety requirements.
• Microprocessor-Controlled Active Infrared: Advanced microprocessor control ensures precise, consistent infrared detection for dependable touchless activation.
• Automatic Self-Changing ID Coding: Automatic self-changing ID coding eliminates possible electrical interference, enhancing reliability in multi-device environments.
• ADA-Compliant Hands-Free Operation: Designed for ADA compliance, enabling accessible, hands-free door activation for individuals with disabilities.
• Versatile Faceplate Options: Faceplates available with legend or plain (upon request) in three sizes and various finishes, including stainless steel, for seamless architectural integration.

Certifications & Compliance

• ADA Compliant Hands-Free Operation
• Suitable for Commercial Applications

Technical Specifications

• Detection Method: Amplitude-modulated, coded-carrier active infrared
• Adjustable Detection Distance: 6"-30"
• Input Power: 12-24V AC or DC, not polarity sensitive
• Input Current: 100 mA @ 18VAC
• Output Relay: Form C; 3A @ 24V DC (resistive)
• Relay Hold Time: Adjustable 0.05-5 seconds
• Relay Operation Modes: Normal or failsafe (jumper selectable)
• Relay Response Time: Less than 0.3 seconds
• Operating Temperature: -13F to 140F (-25C to 60C)
• Mounting: Single-gang electrical box or MS Sedco #1015 surface box (sold separately)

Typical Applications

• Handicap Accessibility and ADA-Compliant Automatic Door Entrances
• Healthcare Facilities and Clean Room Environments Requiring Sterile, Touchless Access
• Bathroom and Restroom Door Activation in Commercial Buildings
• Commercial Office Buildings with Full or Low Energy Automatic Doors
• Educational Institutions and Campus Facilities
• Retail Establishments with High-Traffic Automatic Entrances
• Industrial and Warehouse Facilities Requiring Hands-Free Door Control

Why MS Sedco 216 Series?

MS Sedco 216 Series touchless switches deliver professional-grade reliability through microprocessor-controlled active infrared technology with automatic self-changing ID coding to eliminate electrical interference. Engineered for demanding commercial environments, these switches combine ADA-compliant hands-free operation with selectable failsafe/failsecure modes and broad 12V to 24V AC/DC power compatibility, making them a dependable choice for automatic door activation across a wide range of commercial access control applications.
