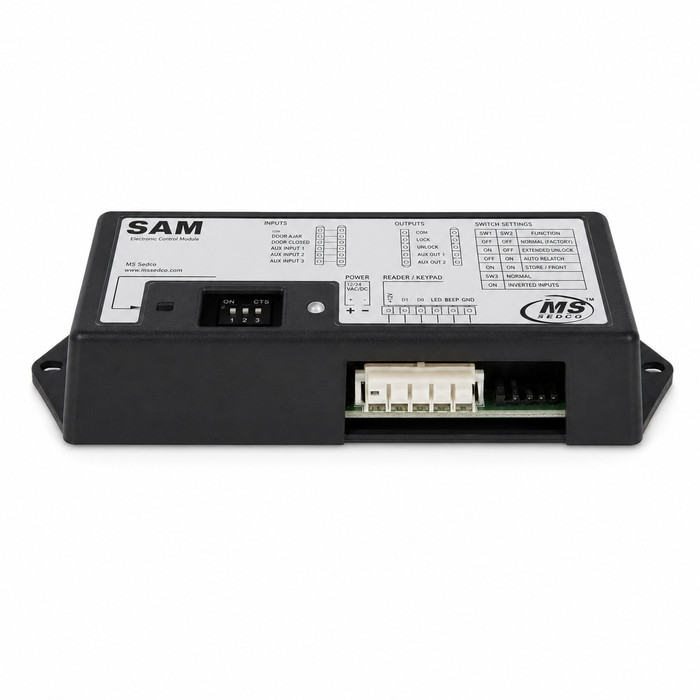

MS Sedco SAM Secondary Activation Module with Intelligent Door Position Monitoring

MS Sedco SAM Secondary Activation Module with Intelligent Door Position Monitoring

The MS Sedco SAM Secondary Activation Module is a commercial-grade electronic timing module engineered specifically for ANSI A156.10 2005 swing door requirements. Utilizing proprietary Intelligent Door Position™ monitoring circuitry, the SAM automatically identifies a swing door's open and closed positions and determines its closing time — eliminating the need for manual relay lockout configuration. The SAM provides single-source control over the push plate switch (knowing act), approach sensor (secondary activation), and overhead safety sensor, making it an essential component for compliant automatic swing door systems.

Key Features

• Intelligent Door Position™ Monitoring: Proprietary circuitry automatically identifies the swing door's open and closed positions and determines closing time, enabling automatic relay lockout without manual adjustment.
• ANSI A156.10 2005 Compliance: Designed specifically to meet ANSI A156.10 2005 swing door requirements, ensuring code-compliant operation in commercial automatic door installations.
• Single-Source Sensor Control: Provides unified control of the approach sensor, overhead safety sensor, and safety beams from one module, simplifying system wiring and management.
• Automatic Relay Lockout: Proprietary software monitors door position and controls when to activate and deactivate the approach sensor after push plate activation, automatically managing relay lockout timing.
• Overhead Safety Sensor Management: Simultaneously monitors the overhead safety sensor and locks out its signal during the door's closing cycle to prevent nuisance activations and ensure safe operation.
• Push Plate & Approach Sensor Integration: Seamlessly coordinates the knowing act push plate switch with the secondary activation approach sensor for smooth, compliant door operation.
• Commercial-Grade Electronic Design: Built for demanding commercial applications as a dedicated timing module within the SAM series of door hardware parts and accessories.

Certifications & Compliance

• Designed specifically for ANSI A156.10 2005 swing door requirements

Technical Specifications

• Function: Microprocessor-based timing module for ANSI A156.10 2005 swing door (Knowing Act) requirements
• Monitoring: Intelligent Door Position(TM) circuitry automatically detects open/closed position and closing time
• Control: Single-source control of the push plate switch, approach sensor, and overhead safety sensor
• Operation: Automatically manages relay lockout timing for the safety sensor during the door's closing cycle

Typical Applications

• Commercial Automatic Swing Door Systems
• Healthcare Facility Automatic Entrances
• Educational Institution Accessible Entry Points
• Retail and Hospitality Automatic Door Installations
• Government and Municipal Building Accessible Entrances
• Industrial Facility Automatic Door Access Points
• Multi-Tenant Commercial Properties with ADA-Compliant Entrances

Why MS Sedco SAM?

MS Sedco SAM Secondary Activation Module products deliver professional-grade reliability through proprietary Intelligent Door Position™ monitoring circuitry that automates relay lockout timing — removing guesswork from compliant swing door installations. Engineered specifically for ANSI A156.10 2005 requirements, the SAM consolidates control of approach sensors, overhead safety sensors, and safety beams into a single commercial-grade electronic module, making it the dependable choice for integrators and installers who demand precision and code compliance in high-traffic commercial environments.
