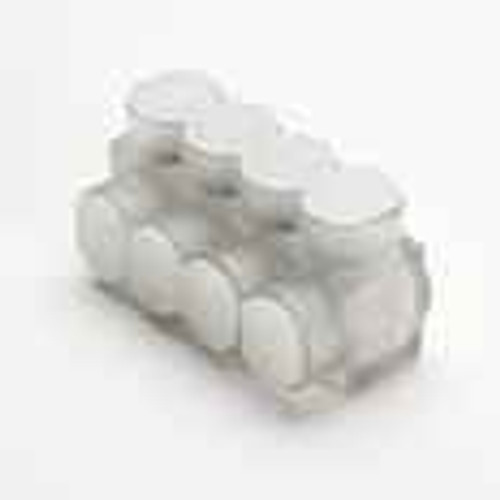

Burndy 8-Port Multiple Tap Connector 4 AWG-600 kcmil Aluminum with Plastisol Insulation

Burndy 8-Port Multiple Tap Connector 4 AWG-600 kcmil Aluminum with Plastisol Insulation

Professional Electrical Connection Solution for Multiple Circuit Applications

The Burndy 8-Port Multiple Tap Connector delivers reliable electrical connections for aluminum and copper conductors ranging from 4 AWG to 600 kcmil. Featuring clear Plastisol insulation and aluminum construction, this UL Listed connector provides professional-grade performance with 600V minimum voltage rating and 8 secure connection ports for versatile circuit distribution applications.

Professional Features & Benefits

• 8-Port Configuration: Accommodates multiple circuit connections in a single compact unit, reducing installation time and space requirements.
• Wide Conductor Range: Accepts both aluminum and copper stranded conductors from 4 AWG to 600 kcmil for versatile application compatibility.
• 600V Voltage Rating: Provides reliable performance in commercial and industrial electrical systems with appropriate voltage capacity.
• Plastisol Insulation: Clear insulated design offers protection while allowing visual inspection of connections for maintenance confidence.
• UL Listed Compliance: Meets UL468A-468B industry standards ensuring code compliance and professional installation requirements.
• Aluminum Construction: Durable unplated aluminum hardware provides corrosion resistance and long-term electrical performance.
• CSA Certified: Additional certification provides expanded approval for diverse installation environments and applications.

Technical Specifications

• Aluminum Size Range: 4 AWG-600 kcmil
• Copper Solid Size Range: N/A
• Copper Stranded Range: 4 AWG-600 kcmil
• Csa Certified: Y
• Culus: N
• Height In: 2.75
• Hex Size Key: 8-Mar
• Industry Standards: UL468A-468B
• Insulation Type: Plastisol
• Length In: 9.78
• Min Voltage Rating: 600
• Number Of Ports: 8
• Number Of Screws: 8
• Plated Yes Or No: N
• Product Description: Aluminum Multiple Tap Connector, Clear Insulated, 8 Port, 2 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rat
• Rated For Direct Burial: N
• Rohs Compatible: Compliant
• Type Of Hardware: Aluminum
• Type Of Plating: Unplated
• Ul Listed: Y
• Ul Recognized: N
• Width In: 3

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Distribution
• Industrial Panel and Switchgear Connections
• Multi-Circuit Branch Applications
• Electrical Service Entrance Equipment
• Power Distribution Centers
• Professional Electrical Installations
• Code-Compliant Connection Systems

Why Choose Burndy Quality?

Burndy multiple tap connectors provide professional-grade reliability with UL Listed and CSA Certified approvals, ensuring code compliance and long-term performance. The RoHS compliant construction and industry standard compliance deliver the durability and safety required for critical electrical connection applications.
