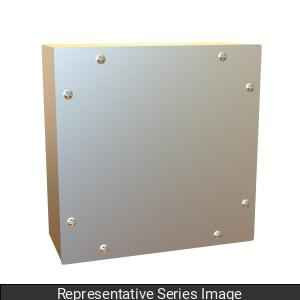

Hammond Manufacturing C4XSC12126SS N4X SCREW COVER - 12X12X6 - SS - 12 x 12 x 6

Hammond Manufacturing N4X Stainless Steel Screw Cover Enclosure 12x12x6 Inch

(No reviews yet) Write a Review

Model: C4XSC12126SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$561.11
$493.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing N4X Stainless Steel Screw Cover Enclosure 12x12x6 Inch

Professional N4X Rated Stainless Steel Enclosure with Screw Cover Design

Hammond Manufacturing delivers professional-grade protection with this N4X rated stainless steel enclosure featuring screw cover construction. The 12x12x6 inch dimensions provide versatile mounting options while the stainless steel construction ensures corrosion resistance and durability. UL listed with CE and cULus certifications, this enclosure meets rigorous safety and performance standards for demanding applications.

Professional Features & Benefits

  • N4X NEMA Rating: Provides superior protection against water ingress, corrosion, and environmental contaminants for reliable long-term performance
  • Stainless Steel Construction: Delivers exceptional corrosion resistance and structural integrity for harsh industrial environments
  • 12x12x6 Inch Dimensions: Offers optimal space utilization with compact footprint for versatile installation requirements
  • Screw Cover Design: Ensures secure closure and easy access for maintenance while maintaining environmental seal integrity
  • UL Listed Certification: Meets stringent safety standards with UL File E65324 for code compliance and professional installations
  • 15 lb Construction: Provides robust build quality while maintaining manageable installation weight for field applications

Technical Specifications

  • Country Of Origin: Canada
  • Depth: 6
  • Product Height: 12
  • Product Material: Stainless Steel
  • Product Weight: 15 lbs
  • Product Width: 12
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: ul, ce, culus
  • Ul File : E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Systems
  • Electrical Distribution Equipment
  • Process Control Instrumentation
  • Marine and Coastal Installations
  • Food Processing Facilities
  • Chemical Processing Plants
  • Outdoor Electrical Equipment Protection

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing provides reliable enclosure solutions with comprehensive certifications including UL, CE, and cULus listings. The stainless steel construction and N4X rating ensure long-term durability and environmental protection, while REACH, RoHS, and USMCA compliance demonstrates commitment to regulatory standards and professional quality.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Product Height:
12
Product Material:
Stainless Steel
Product Weight:
15 lbs
Product Width:
12
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
ul, ce, culus
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
6

Hammond Manufacturing C4XSC12126SS – Frequently Asked Questions

1) Will a Hammond C4XSC12126SS enclosure hold up to washdown and coastal salt air?
That is what the N4X rating and the stainless steel body are for. Type 4X covers water ingress plus corrosion, so the C4XSC12126SS is built for marine and coastal sites, food processing washdown areas, and chemical plants where a painted steel box would rust at the seams. The shell is stainless steel throughout.
2) What are the actual box dimensions on the Hammond N4X screw cover enclosure C4XSC12126SS?
It is a 12 x 12 x 6 inch box: 12 inch height, 12 inch width, 6 inch depth. That 6 inches of depth is what decides whether your DIN rail, contactors, or a small drive stack will clear the cover, so measure your deepest component plus wiring space before you commit.
3) Is the Hammond C4XSC12126SS UL listed, and what file number do I cite for inspection?
Yes. The enclosure is UL listed under file E65324, and also carries CE and cULus. That file number is what an electrical inspector or a spec submittal will want, so keep it with the job paperwork.
4) Should I use a screw cover enclosure or a hinged door type for a control panel?
Screw cover is the right call when the box gets opened rarely, like a junction or pull box, terminal splice point, or a sealed instrument housing. Every open means backing out the cover screws, which is slow but keeps clamping pressure even on the gasket. If a technician will be in the box routinely for troubleshooting or adjustment, a hinged or clamp-latch enclosure is the better pick. The C4XSC12126SS is the screw cover version.
5) Does the Hammond N4X enclosure come with a back panel or conduit hubs?
What ships is the enclosure body and its screw cover. Conduit hubs or fittings have to be rated Type 4X themselves to keep the rating, and any interior mounting panel, DIN rail, or kit is ordered separately. Price the accessories into the job up front, and remember that drilling the box for fittings is on you to seal properly.
6) Does the Hammond C4XSC12126SS meet RoHS and REACH for a government or institutional submittal?
Yes on both, and it is USMCA compliant as well. It is manufactured in Canada, which matters on contracts carrying domestic or trade-agreement sourcing language.
7) What part number do I order for the Hammond 12x12x6 N4X stainless screw cover box?
The manufacturer part number is C4XSC12126SS, from Hammond Manufacturing. One configuration, so there is no finish or size suffix to specify when you standardize on it across a facility.
8) How heavy is the 12x12x6 Hammond stainless enclosure, and can one person mount it?
It weighs 15 lbs empty. One person can set it, but at 15 lbs before any components go in you want the mounting anchors sized to the substrate, not drywall screws, and a second set of hands if you are working off a ladder.
