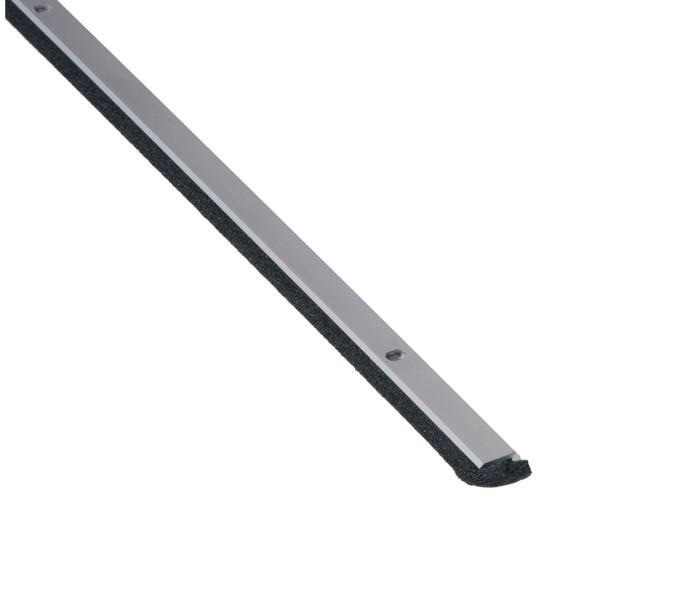

NGP 110NA Perimeter Closed Cell Sponge Seal with Neoprene EPDM and Satin Aluminum Clear Anodized Finish

NGP 110NA Perimeter Closed Cell Sponge Seal with Neoprene EPDM and Satin Aluminum Clear Anodized Finish

(No reviews yet) Write a Review

Model: 110NA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Perimeter Closed Cell Sponge Seal with Neoprene EPDM and Satin Aluminum Clear Anodized Finish

Professional Perimeter Sealing Solution

The NGP Perimeter Closed Cell Sponge Seal delivers superior environmental protection with advanced synthetic EPDM rubber in a polypropylene thermoplastic matrix closed cell elastomeric foam. Constructed with aluminum alloy 6063 T5 temper housing and satin aluminum clear anodized finish, this professional-grade seal operates reliably across temperature ranges from -81 F to 275 F. BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring consistent performance in demanding commercial applications.

Professional Features & Benefits

  • Advanced Temperature Range: Operates from -81 F to 275 F for reliable performance in extreme environmental conditions.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper with synthetic EPDM rubber in polypropylene thermoplastic matrix for exceptional durability.
  • Superior Resistance Properties: Very good abrasion resistance, tensile strength and memory with flame-resistant and moisture-resistant characteristics.
  • Environmental Durability: Good resistance to ozone, sunlight and aging for long-term outdoor and indoor applications.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold compliance.
  • Professional Installation Hardware: Includes #6 x 3/4" stainless steel sheet metal screws with slotted screw holes for precise adjustment.
  • Patent Pending Technology: Features patent pending microcellular EPDM technology for enhanced sealing performance.
  • Premium Finish: Satin aluminum clear anodized finish provides corrosion resistance and professional appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Series: Neoprene Sponge Seal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP perimeter sealing products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and patent pending microcellular EPDM technology. BHMA certified to ANSI/BHMA A156.22 performance standards with temperature range from -81 F to 275 F for demanding commercial applications. Engineered for demanding commercial applications where dependable environmental sealing performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Sponge Seal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 110NA-36 – Frequently Asked Questions

1) What lengths does the NGP 110NA perimeter seal come in, and how do I cover a standard door frame?
The 110NA closed cell sponge seal is stocked in 36, 48, 72, 84 and 96 inch lengths. A typical single opening takes one head piece and two jamb pieces, so for a 3070 door most people order a 36 inch length for the head and two 84 inch lengths for the jambs. The housing is drilled with slotted screw holes so each piece can be shifted slightly for compression against the stop before the screws are set.
2) What temperature range can this NGP perimeter gasket handle? I need it on a cold storage vestibule.
The 110NA is rated from -81 F to 275 F, and it is BHMA certified to the ANSI/BHMA A156.22 performance tests for heat and cold. Closed cell sponge keeps its memory at the low end, which is what matters on a freezer or cold vestibule door where an open cell foam would take a set and stop sealing.
3) What is the difference between the NGP 110NA sponge seal and the Cal-Royal PG-601 perimeter gasketing?
Both are aluminum channel perimeter gaskets that mount to the frame stop to seal the head and jambs of a commercial door. The NGP 110NA uses a closed cell sponge insert of synthetic EPDM rubber in a polypropylene thermoplastic matrix, carried in a 6063 T5 aluminum housing with a satin aluminum clear anodized finish, and is BHMA certified to ANSI/BHMA A156.22 heat and cold performance tests with a service range of -81 F to 275 F. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert. So the practical decision is the seal material: a compressible closed cell EPDM sponge versus a vinyl bulb insert. For openings that see wide temperature swings, exterior exposure, or ozone and sunlight, the EPDM sponge of the 110NA is the one specified for that duty.
4) Can the Cal-Royal PG-601 be swapped in where an NGP 110NA is specified?
Both are surface-applied aluminum channel perimeter gaskets for the frame stop, so the mounting approach is the same family of install - the NGP 110NA ships with #6 x 3/4 inch stainless steel sheet metal screws and slotted holes so the channel can be adjusted against the door face for compression. Where they part company is the seal element and the certification: the 110NA carries a closed cell EPDM sponge and BHMA certification to ANSI/BHMA A156.22 heat and cold tests, while the PG-601 uses a vinyl insert. If the drawing calls out A156.22 gasketing or a specific EPDM sponge seal, the 110NA is what satisfies it. For a straight like-for-like replacement, confirm the frame stop width and the length you need - the 110NA comes in 36, 48, 72, 84 and 96 inch lengths for head and jamb runs.
5) Does the NGP 110NA seal come with fasteners, or do I need to buy screws separately?
Screws are in the box. The 110NA ships with #6 x 3/4 inch stainless steel sheet metal screws, which go through the slotted holes in the aluminum housing. Nothing else is required beyond a drill and the layout on the frame.
6) Will a neoprene sponge perimeter seal hold up on an exterior door exposed to sun and weather?
Yes. The sealing element is a synthetic EPDM rubber in a polypropylene thermoplastic matrix, closed cell, with good resistance to ozone, sunlight and aging, plus moisture resistance and flame resistance. The housing is 6063 T5 aluminum with a satin clear anodized finish for corrosion resistance, so it is suited to exterior jambs as well as interior openings.
7) Can I use this NGP seal on the head and jambs of a pair of doors?
Yes on the frame perimeter, head and both jambs, for a single door or a pair. It is a perimeter seal and does not address the meeting stiles of a pair or the gap under the door. For a pair you still need an astragal at the meeting stiles, and a door bottom or sweep at the threshold.
8) I need perimeter weatherstripping for an exterior entrance that gets full sun - which one should I use?
The NGP 110NA is the better fit for sun-exposed exterior openings. Its microcellular EPDM sponge insert is rated for good resistance to ozone, sunlight and aging, along with flame-resistant and moisture-resistant properties, and it holds up from -81 F to 275 F with BHMA certification to the ANSI/BHMA A156.22 heat and cold tests. The satin aluminum clear anodized housing adds corrosion resistance on the exterior side. The Cal-Royal PG-601 is also an aluminum channel perimeter gasket but carries a vinyl insert rather than an EPDM sponge, which is a common choice for interior and moderate-exposure openings.
9) Will a door shoe work instead of the NGP 110NA perimeter seal?
No - they seal different parts of the opening and are not interchangeable. The NGP 110NA is perimeter gasketing, meaning it mounts on the frame head and jambs to seal the gap between the door face and the stop. A door shoe, such as the Cal-Royal PG-601 which sits in the Door Shoes series, addresses the bottom of the door. A fully sealed opening typically needs both: perimeter gasketing around the head and jambs plus a bottom seal or sweep. Order the 110NA in the length that covers your head and jamb runs - 36, 48, 72, 84 and 96 inch lengths are offered - and specify a bottom seal separately.
10) Is the NGP 110NA meant for commercial openings or residential doors?
It is a commercial-grade item. The 110NA is rated commercial and is used on office buildings, schools, hospitals, retail, warehouses, multi-tenant residential and government buildings. It will work on a residential door, but the aluminum housing and anodized finish are specified for higher-traffic commercial jambs.
11) What finish does the NGP 110NA perimeter seal come in, and will it match my aluminum storefront frames?
One finish: satin aluminum, clear anodized, over 6063 T5 aluminum alloy. That is the standard clear anodized look used on most aluminum storefront and hollow metal frames painted or finished to match, so it blends on a typical commercial jamb.
