NGP NGP 149MA (SET) Magnetic Astragal, 84" Anodized Aluminum NGP-149MA 84 SET

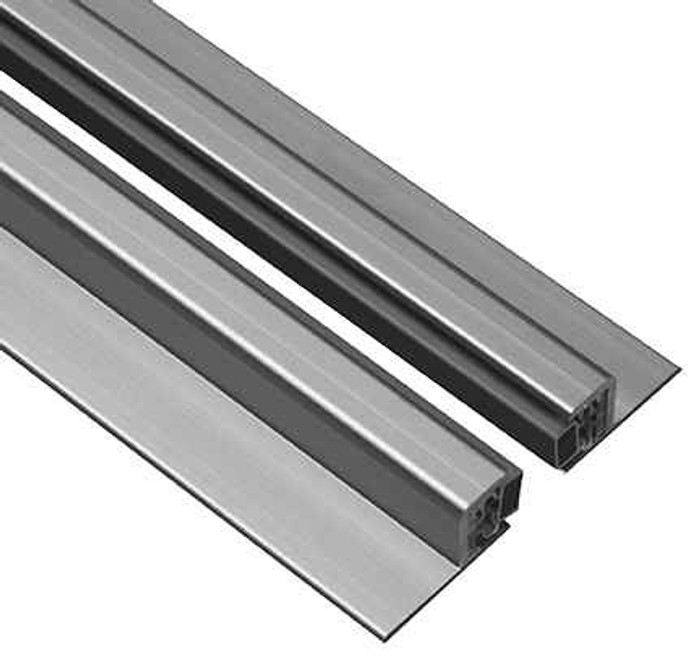

NGP 149MA 84 SET Magnetic Astragal Set 84" Anodized Aluminum with PVC Seal

(No reviews yet) Write a Review

Model: 149MA 84 SET
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$266.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Magnetic Astragal Set 84" Anodized Aluminum with PVC Seal

Professional Door Sealing Solution for Commercial Applications

The NGP Magnetic Astragal Set provides effective door sealing for 84" openings with durable anodized aluminum construction and environmentally friendly PVC sealing components. This two-piece magnetic astragal system features aluminum alloy 6063 T5 temper construction with thermoplastic polymer PVC formulated with bio-based plasticizer for enhanced environmental performance. The magnetic encasement in gray vinyl ensures reliable door alignment and sealing, while slotted screw holes allow for precise installation adjustment.

Professional Features & Benefits

  • 84" Length Configuration: Pre-sized for standard commercial door heights with two-piece set design for complete coverage.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional strength and corrosion resistance for long-term commercial use.
  • Environmentally Friendly Materials: PVC formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Wide Temperature Range: Operates effectively from 0 F to 140 F for diverse climate conditions and applications.
  • Magnetic Alignment System: Magnet encased in gray vinyl ensures consistent door closure and sealing performance.
  • Adjustable Installation: Slotted screw holes accommodate field adjustments for precise alignment and optimal sealing.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel SMS screws for secure mounting.
  • Flame and Moisture Resistant: Engineered materials provide protection against fire spread and moisture infiltration.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Astragals
  • Series: Magnetic Astragal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP Magnetic Astragal systems deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and environmentally responsible PVC components. The flame and moisture resistant design operates reliably across a 0 F to 140 F temperature range for demanding commercial applications. Engineered for consistent magnetic alignment and long-term durability where effective door sealing is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Magnetic Astragal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Astragals
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 149MA 84 SET – Frequently Asked Questions

1) Will the NGP 149MA magnetic astragal work on a pair of doors, or is it for a single door?
The 149MA is a two-piece set, one half mounted on each leaf of a pair of doors. The magnet, encased in gray vinyl, pulls the two halves together as the doors close so the meeting stile seals without a mullion. Ordered as an 84 inch set, it covers a standard commercial door height on both leaves. If you only need to seal one active leaf against a frame, an astragal set is the wrong part.
2) Is the NGP 149MA astragal a lock astragal, or just a seal?
It's a sealing astragal, not a lock astragal. The 149MA is aluminum with a PVC seal and a magnet that draws the leaves together for door closure and sealing. It has no provision for a lock. If you need an astragal that works around a mortise or cylindrical lock on the meeting stile, the Trimco 5001 lock astragal is made for mortise or cylindrical locks, and the Trimco 5002 (1-9/16 x 6 inches) is made for cylindrical locks.
3) What's the difference between a magnetic astragal and a brush or T-astragal for double doors?
A magnetic astragal like the 149MA uses a magnet in the meeting stile to actively pull the two leaves together, which is the choice when doors flex or don't close tight on their own. A brush-type such as the Pemko 300 Series uses a self-adjusting pile brush instead, and the Pemko 369 split astragal (13/32 x 11/32 inch aluminum) puts pile brush on both halves. The Cal-Royal EAST-501 is an aluminum T-astragal with a vinyl insert, a mechanical overlap rather than a magnetic pull. Brush and T types tolerate rough alignment; the magnetic type gives you a positive closing seal.
4) What is the difference between the NGP 149MA magnetic astragal and a Pemko 300 Series astragal?
They seal a double door pair by different means. The NGP 149MA is a two-piece magnetic astragal set in anodized aluminum, with the magnet encased in gray vinyl and a PVC seal, so the two leaves pull together and hold closed contact. The Pemko 300 Series is an adjustable astragal that seals with a self-adjusting pile brush instead of a magnet, and it takes up gap variation through its adjustment rather than magnetic pull. Choose the 149MA when you want positive magnetic closure at the meeting stile; choose a brush astragal where you want a sweeping seal that rides over an uneven or racked pair.
5) I need an astragal on a fire-rated double door pair. Is the magnetic astragal the right part?
For a fire-rated opening, the Pemko 369 split astragal seal is the part that carries the fire rating. It is a 13/32 inch by 11/32 inch aluminum split astragal with a pile brush insert, listed as fire-rated, and it applies to both leaves of the pair. The NGP 149MA magnetic astragal is a commercial two-piece aluminum set with a PVC seal and magnetic encasement, engineered for flame and moisture resistance and consistent magnetic closure. Specify the 369 when the drawing calls for a fire-rated astragal at that opening.
6) Is a Trimco 5001 lock astragal a substitute for the NGP 149MA?
No, they solve different problems. The Trimco 5001 is a stainless steel lock astragal used with mortise or cylindrical locks, so it is a short piece that covers the gap at the lock and protects the latch area. The NGP 149MA is a full-height 84 inch two-piece magnetic astragal set that seals the entire meeting stile of a pair with a PVC seal and magnetic closure. If the goal is sealing the pair top to bottom, the 149MA is the part; if the goal is guarding the latch on a locked pair, the 5001 is.
7) What screws come with the NGP 149MA astragal set, and can I adjust it after it's up?
The set ships with #6 x 3/4 inch stainless steel sheet metal screws. The screw holes are slotted, so you can shift the astragal side to side after the first fastening to dial in the magnetic contact between the two leaves before you tighten down. That matters on an existing pair where the leaves don't hang perfectly even.
8) Will a magnetic astragal hold up in an unheated warehouse or an exterior door?
The 149MA is rated to work from 0 F to 140 F, which covers an unconditioned warehouse, a loading dock vestibule, or an exterior pair in most of the country. The extrusion is 6063 T5 aluminum alloy with an anodized finish for corrosion resistance, and the PVC seal is flame and moisture resistant.
9) Is the NGP 149MA astragal fire rated?
Where a labeled opening is involved, the Pemko 369 split astragal is the fire-rated option in this group. The NGP 149MA is built with flame and moisture resistant materials for commercial openings, but for a fire door assembly go with the part that carries the rating on the label.
10) What is the difference between the Trimco 5001 and 5002 lock astragals if I am protecting the latch instead of sealing the pair?
Both are stainless steel lock astragals. The Trimco 5001 is specified for use with mortise or cylindrical locks. The Trimco 5002 measures 1-9/16 inches by 6 inches and is specified for use with cylindrical locks. Match the piece to the lock already in the door: a mortise lock points to the 5001, a cylindrical lock is covered by either. Neither performs the full-height sealing job the NGP 149MA magnetic astragal set does.
11) Can I use a Cal-Royal EAST-501 T-astragal instead of the NGP magnetic astragal on a double door?
You can, and it is the simpler mechanical answer. The Cal-Royal EAST-501 is an aluminum T-astragal with a vinyl insert for double doors, so the T profile covers the gap and the vinyl insert makes the seal by compression when the leaves close. The NGP 149MA is a two-piece anodized aluminum set with a PVC seal and a magnet encased in gray vinyl, plus slotted screw holes for field adjustment of the seal line. Take the EAST-501 where a compression T profile suits the pair; take the 149MA where you want the leaves magnetically drawn into contact and want to fine-tune the alignment after mounting.
12) Which astragal holds up best on a pair that gets constant traffic and gets out of alignment?
For a pair that drifts, the two adjustable answers are the NGP 149MA and the Pemko 300 Series. The 149MA is aluminum alloy 6063 T5 temper with slotted screw holes for field adjustment and a magnet that pulls the leaves into consistent closure, rated for a 0 F to 140 F range. The Pemko 300 Series is an adjustable astragal whose self-adjusting pile brush takes up gap variation as the doors move. Both are meant for double doors; the difference is whether the correction happens by magnetic pull and mounting adjustment or by a brush that follows the gap.
13) I need to seal both leaves of a pair, not just one. What are my options besides the magnetic set?
The Pemko 369 is a split astragal seal, meaning the assembly divides across both leaves with a pile brush insert closing the gap between them, in a 13/32 inch by 11/32 inch aluminum profile. The NGP 149MA is likewise a two-piece set, with one piece mounted to each leaf and the magnet in gray vinyl bringing them together. Both cover the pair rather than one door; the 369 seals with brush pile in a fire-rated aluminum profile, the 149MA with a PVC seal and magnetic closure in anodized aluminum.
14) Is this astragal rated for commercial use or is it a residential weatherstrip?
Commercial. The 149MA is specified for commercial openings, and it's used in offices, schools, healthcare facilities, retail, warehouses, multi-tenant residential, and government buildings. The anodized 6063 T5 aluminum body is what carries it through that kind of traffic rather than the vinyl-only strips sold for houses.
15) What finish does the NGP 149MA 84 inch astragal come in?
Anodized aluminum is the finish, and it's the only one offered on the 84 inch set. The seal itself is PVC and the magnet housing is gray vinyl, so on a mill-finish aluminum storefront or hollow metal pair the astragal reads as a clear aluminum line with a gray seal, not a painted color match.
