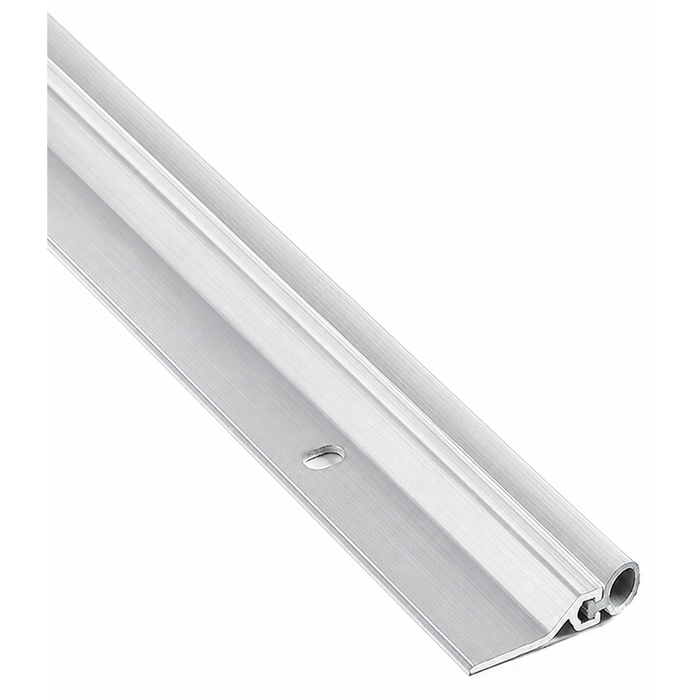

NGP 164V Perimeter Seal with Vinyl Gasket and Milled Aluminum Finish

Professional Door Weatherstripping Solution

The NGP 164V Perimeter Seal combines aluminum alloy 6063 T5 temper construction with thermoplastic polyvinyl chloride gasket material for reliable door perimeter sealing. This economical weatherstripping solution operates effectively in temperatures from 0 F to 140 F and features flame-resistant and moisture-resistant properties. The milled aluminum finish provides durability while the black vinyl gasket delivers consistent sealing performance for commercial door applications.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from 0 F to 140 F for year-round performance in varying climate conditions.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional strength and corrosion resistance for long-term commercial use.
  • Advanced Vinyl Formulation: Thermoplastic polyvinyl chloride formulated with environmentally friendly bio-based plasticizer for enhanced performance and sustainability.
  • Fire and Moisture Protection: Flame-resistant and moisture-resistant properties provide enhanced safety and weather protection.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting.
  • Professional Finish: Milled aluminum finish with black vinyl gasket provides clean appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entry Doors
  • Educational Facility Exterior Doors
  • Healthcare Institution Weather Sealing
  • Retail Establishment Energy Efficiency
  • Industrial Facility Environmental Control
  • Multi-Tenant Residential Common Areas
  • Government Building Perimeter Sealing

Why Choose NGP Quality?

NGP perimeter sealing products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and advanced vinyl formulation designed for commercial applications. The temperature range of 0 F to 140 F ensures consistent performance across diverse climate conditions. Engineered for demanding commercial applications where dependable weather sealing and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 164V-36 – Frequently Asked Questions

1) Is the NGP 164V rated for use on a labeled fire door?
The 164V is described as flame resistant, which is a material property of the vinyl, not a fire door listing. Treat it as a weather and light seal for commercial openings. If your opening needs listed smoke or fire gasketing, specify a product carrying that listing rather than relying on the flame resistant wording here.
2) What is the closest alternative to the NGP 164V perimeter seal if I need an aluminum channel gasket with a vinyl insert?
The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert, the same basic construction as the NGP 164V, which pairs an aluminum alloy 6063 T5 temper channel with a thermoplastic polyvinyl chloride gasket. The 164V is supplied in a milled aluminum finish with a black vinyl gasket and ships with #6 x 3/4 inch stainless steel sheet metal screws, and its slotted screw holes allow the channel to be shifted for alignment against the door face. If you are matching an existing head and jamb seal on a commercial opening, confirm the stop width and gasket profile before swapping between the two.
3) Does the NGP 164V weatherstrip come with fasteners, or do I have to buy screws separately?
Screws are in the box. Each piece ships with #6 x 3/4 inch stainless steel sheet metal screws, and the mounting holes are slotted so you can shift the extrusion in or out to set gasket compression against the door face before you tighten down.
4) Will the NGP 164V vinyl gasket hold up outdoors in winter?
The rated service range is 0 F to 140 F, so it covers ordinary exterior commercial use in most of the country. The gasket is thermoplastic PVC and is both flame resistant and moisture resistant. Below 0 F sustained you are outside the stated range and should look at a silicone-bulb seal instead.
5) Where on the frame does the NGP 164V mount, and does it need a special prep?
It surface mounts to the face or stop of the frame with the supplied sheet metal screws, so there is no mortise or routing required. The slotted holes let you set the vinyl against the closed door leaf and adjust compression, which matters more than exact placement. Drill pilot holes in hollow metal before driving the #6 screws.
6) Will a door shoe work in place of the NGP 164V perimeter seal?
No. A door shoe mounts to the bottom edge of the door and seals against the threshold, while the NGP 164V mounts on the frame to seal the head and jambs. The Cal-Royal PG-601 is listed as perimeter gasketing within a Door Shoes Series, so the series name alone does not tell you the mounting location - check whether the item you are quoting is a frame-applied perimeter channel or a bottom-of-door shoe. For weather sealing a full commercial opening you generally need both a perimeter seal such as the 164V and a separate bottom seal.
7) What finish is the NGP 164V perimeter seal, and will it match my aluminum storefront frames?
The extrusion is aluminum alloy 6063 T5 in a milled aluminum finish with a black vinyl insert. Mill finish reads as a natural silver aluminum, so it blends with clear anodized storefront and unpainted hollow metal. Against dark bronze or painted frames it will stand out, and the black gasket is the only color option on the insert.
8) Is this the right weatherstrip for a residential entry door, or is it meant for commercial work?
The 164V is specified as a commercial product. It is used on office and retail entries, school and healthcare exterior doors, government buildings, and multi-tenant residential common area doors. It will function on a house door, but it is built around aluminum channel and screw-applied mounting to a commercial frame rather than a residential nail-on jamb.
