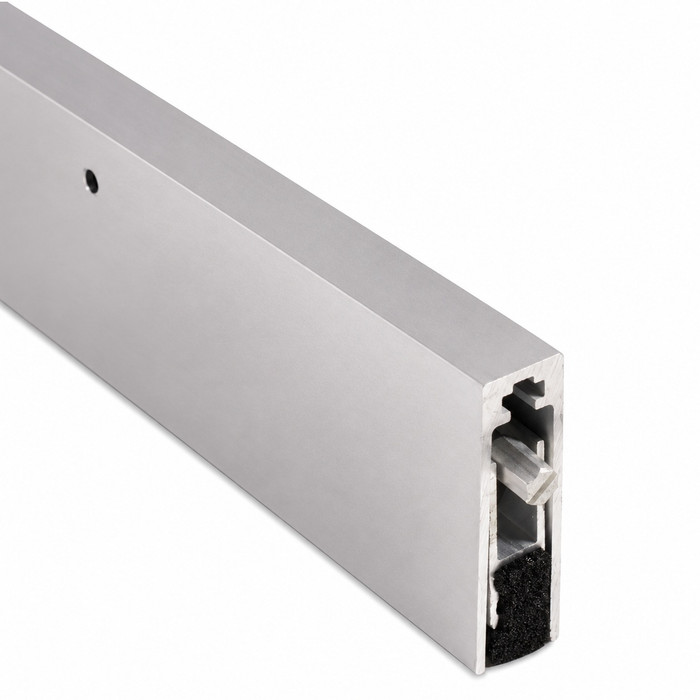

NGP 222WH Series Automatic Door Bottom with Nylon Brush Seal

NGP 222WHA Series Automatic Door Bottom with Nylon Brush Seal - Aluminum Alloy Construction

(No reviews yet) Write a Review

Model: 222WHDKB-36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$144.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 222WH Series Automatic Door Bottom with Nylon Brush Seal - Aluminum Alloy Construction

Professional Automatic Door Sealing Solution

The NGP 222WH Series Automatic Door Bottom delivers reliable sealing performance with durable aluminum alloy 6063 T5 temper construction and synthetic polyamide nylon brush seal. Designed for commercial applications with temperature range from -70 F to 425 F, this automatic door bottom provides excellent abrasion resistance and flexibility. Available in lengths from 11" minimum to 60" maximum with 7/8" maximum drop capability for versatile door sealing applications.

Professional Features & Benefits

  • Length Flexibility: Available from 11" minimum to 60" maximum length with field cutting capability for 36" and longer units (up to 4" reduction).
  • Maximum Drop Capability: 7/8" maximum drop provides effective sealing performance for various door clearance requirements.
  • Wide Temperature Range: Operates reliably from -70 F to 425 F for demanding environmental conditions and climate control applications.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper frame with synthetic polyamide brush seal provides exceptional durability and long-term performance.
  • Superior Material Properties: Excellent abrasion resistance, flexibility, and memory retention with moisture-resistant characteristics for reliable operation.
  • Environmental Compliance: REACH and RoHS compliant materials meet current environmental and safety standards.
  • Complete Installation Package: End caps furnished standard for professional finished appearance and proper seal integrity.
  • Specialized Applications: Nylon brush design recommended for carpet applications where no threshold is provided, retains insecticides well for pest control applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Automatic Door Bottoms
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP 222WH Series automatic door bottoms deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic polyamide brush seals rated for extreme temperature performance from -70 F to 425 F. REACH and RoHS compliant materials ensure environmental responsibility while excellent abrasion resistance and flexibility provide long-term durability. Engineered for demanding commercial applications where dependable sealing performance and climate control are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Automatic Door Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 222WHDKB-36 – Frequently Asked Questions

1) Will an automatic door bottom work over carpet if there's no threshold?
That's exactly what the nylon brush version is for. The NGP 222WH automatic door bottom uses a synthetic polyamide nylon brush seal, which NGP recommends for carpet applications where no threshold is provided. A solid vinyl or neoprene seal drags and wears on carpet pile; the brush sweeps over it. Drop capability is 7/8 inch maximum, so it can bridge the gap down to carpet height.
2) How is a brush automatic door bottom different from one with a vinyl or rubber insert?
A brush seal sweeps rather than wipes. It's the right call over carpet, uneven floors, or where a solid insert would bind, and it holds insecticide well if the opening is part of a pest control program. A solid insert seals tighter against smoke, light and drafts on a flat hard floor. Pemko's SA Series surface mount automatic door bottom is an example of the solid-insert approach, using a GREENGUARD Gold certified Eco-V insert in a 36 inch length.
3) Do I need an automatic door bottom like the NGP 222WH, or will a simpler door sweep do the job?
A fixed sweep such as the Pemko 345 Series is the simpler option - it mounts to the door face and drags a PemkoPrene insert continuously, with a rain drip for exterior openings. The NGP 222WH is a mechanical automatic door bottom that drops its nylon brush seal up to 7/8 inch only when the door closes and lifts it clear when the door swings, which is why it is the one specified over carpet where a fixed sweep would bind or wear. If the floor is hard and flat and you want the lowest-cost, fewest-moving-parts answer, the fixed sweep is it.
4) What is the closest equivalent to the NGP 222WH automatic door bottom from another manufacturer?
The Pemko SA Series, such as the SA3-36, is the nearest peer - it is a surface mount automatic door bottom in a 36 inch length, the same product function as the NGP 222WH. The difference is in the seal material and mounting style: the 222WH uses a synthetic polyamide nylon brush seal in an aluminum alloy 6063 T5 housing rated from -70 F to 425 F, while the Pemko SA3-36 carries a GREENGUARD Gold certified Eco-V insert. Choose the brush on carpeted openings with no threshold; choose a solid insert where you want a continuous contact seal against a flat sill.
5) Will this hold up in a boiler room or a freezer door?
The 222WH is rated from -70 F to 425 F. The extrusion is 6063 T5 temper aluminum alloy and the seal is synthetic polyamide, which keeps its flexibility and memory at both ends of that range and resists moisture. That covers cold storage vestibules through mechanical and boiler rooms.
6) Which door bottom should I use on an exterior opening that takes driving rain?
For an exterior door where water running down the face is the concern, the Pemko 345 Series sweep includes a rain drip that throws water clear of the bottom rail, which a brush-seal automatic bottom does not do. The NGP 222WH brush design is aimed at interior commercial openings - carpet with no threshold, and pest control work where the nylon holds insecticide - and it seals across a temperature range of -70 F to 425 F. On an exterior opening you can also run both: a drip sweep or drip cap outside and an automatic bottom for the closed-door seal.
7) My project spec calls for a low-emitting GREENGUARD certified seal - does the NGP 222WH meet that?
The NGP 222WH is built on REACH and RoHS compliant materials. If the specification specifically calls out GREENGUARD Gold, the Pemko SA Series automatic door bottom uses a GREENGUARD Gold certified Eco-V insert and is the direct swap in the same surface mount automatic door bottom function. Both are automatic door bottoms, so the opening prep and operating principle are the same - the certification and the seal material are what change.
8) Is the Pemko 345 sweep a drop-in replacement for an NGP 222WH?
No - they look similar on a cut sheet but they are different devices. The Pemko 345 is a fixed door bottom sweep; the NGP 222WH is an automatic door bottom whose seal retracts and drops up to 7/8 inch as the door operates. Swapping a 345 in where a 222WH was specified means the seal rides the floor at all times, which changes door pull effort and wear, particularly over carpet. Match automatic to automatic - the Pemko SA Series is the automatic-function peer.
9) Is this rated for commercial traffic or is it a residential part?
Commercial. NGP builds the 222WH for office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and government facilities, with a 6063 T5 aluminum housing rather than a light residential extrusion. REACH and RoHS compliant materials, which matters on institutional and government specs.
