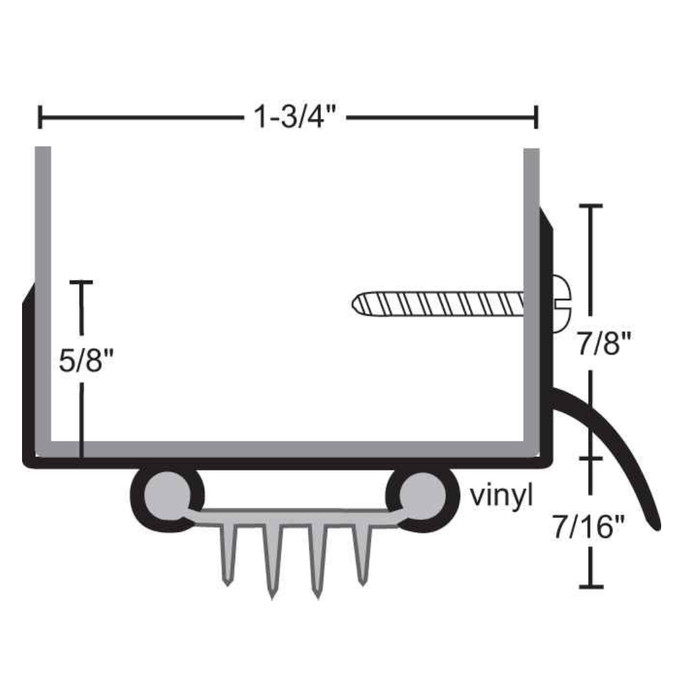

NGP 319EV Finned Vinyl Door Shoe with Aluminum Alloy Construction - 42" Length

NGP 319EV Finned Vinyl Door Shoe with Aluminum Alloy Construction - 42" Length

(No reviews yet) Write a Review

Model: 319EV
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$48.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Finned Vinyl Door Shoe with Aluminum Alloy Construction - 42" Length

Professional Door Bottom Sealing Solution

The NGP Finned Vinyl Door Shoe delivers reliable door bottom sealing with aluminum alloy 6063, T5 temper construction and thermoplastic PVC vinyl formulated with environmentally friendly bio-based plasticizer. This 42" door shoe operates effectively in temperature ranges from 0 F to 140 F and features flame-resistant and moisture-resistant properties for demanding commercial applications. The economical design includes slotted screw holes for precise adjustment during installation.

Professional Features & Benefits

  • 42" Length: Standard door width coverage with precise fit for most commercial door applications.
  • Aluminum Alloy Construction: 6063, T5 temper aluminum alloy provides exceptional durability and corrosion resistance for long-term performance.
  • Temperature Performance: Operates reliably in temperature range from 0 F to 140 F for diverse climate conditions and applications.
  • Flame and Moisture Resistance: Flame-resistant and moisture-resistant properties ensure reliable performance in challenging environments.
  • Environmentally Friendly Materials: Thermoplastic PVC formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation with included #6 x 3/4" stainless steel SMS fasteners.
  • Economical Solution: Cost-effective door sealing solution without compromising professional-grade performance and durability.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063, T5 temper construction and environmentally friendly bio-based PVC formulation. The temperature-tested performance from 0 F to 140 F with flame and moisture resistance ensures dependable sealing in demanding commercial applications where consistent door bottom protection is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 319EV – Frequently Asked Questions

1) Will the NGP 319EV door shoe fit a 36 inch door, or do I have to cut it down?
The 319EV comes as a 42 inch extrusion, so on a standard 36 inch commercial door you cut it to length on site. Aluminum alloy 6063 T5 cuts cleanly with a hacksaw or miter saw. If you would rather not cut, the Pemko 210 door shoe is sold in a 36 inch length.
2) Do I need to order screws separately for the NGP 319EV door shoe?
No. The 319EV ships with #6 x 3/4 inch stainless steel sheet metal screws, and the mounting holes are slotted so you can slide the shoe up or down to set the seal against the threshold before you tighten. That slot is what lets you dial in contact on a door that sits slightly high or low in the opening.
3) Can I use the NGP 319EV door shoe on an exterior door that gets rain?
The vinyl is moisture resistant and the 6063 T5 aluminum is corrosion resistant, so an exterior opening is fine. What the 319EV does not have is a rain drip. On a door that takes driving rain or sits under a short overhang, a shoe with an integral drip cap sheds water off the face of the door instead of letting it run down into the sweep; the Pemko 211V and Pemko 215 are both door shoes with a rain drip.
4) I need a door shoe on a fire-rated opening - which one should I use?
Use the Pemko 210 or the Pemko 215. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe carrying UL10C certification along with a rain drip and an Eco-V insert. The NGP 319EV is an economical finned vinyl door shoe in aluminum alloy 6063, T5 temper rated for service from 0 F to 140 F with flame-resistant and moisture-resistant properties - specify one of the Pemko fire-rated shoes when the opening itself is a rated assembly.
5) What is the closest equivalent to the NGP 319EV door shoe from another manufacturer?
The Pemko 209 is the nearest straight equivalent. Both are door bottom shoes that carry a vinyl insert in an aluminum extrusion, and the Pemko 209 is built on a 1/2 inch by 1-3/8 inch profile. The NGP 319EV pairs aluminum alloy 6063, T5 temper with a thermoplastic PVC vinyl made using a bio-based plasticizer, and comes in Mill Aluminum and Dark Bronze. The Cal-Royal DS-403 is a second aluminum door shoe with a vinyl insert if you want a third option on the same opening.
6) Which door shoe should I use on an exterior door that takes driving rain?
Choose a shoe with a rain drip. The Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 combines a rain drip with fire rating and UL10C certification. The NGP 319EV is a finned vinyl door shoe with moisture-resistant construction and a 0 F to 140 F service range, but the drip cap on the 211V or 215 is what throws water clear of the sill on a weather-exposed opening.
7) What finishes does the NGP 319EV finned vinyl door shoe come in?
Two: mill aluminum and dark bronze. Mill is the raw aluminum look that disappears against an aluminum storefront or a mill finish frame; dark bronze is the one to pick if the door bottom is dark anodized or painted dark and you do not want a bright line across the base of the door.
8) Will a finned vinyl door shoe hold up in an unheated warehouse or a cold climate?
The 319EV vinyl is rated from 0 F to 140 F, which covers an unheated warehouse, a loading dock door, or a mechanical room that runs hot. Below zero the vinyl stiffens and the fins stop sealing well, so a freezer or cold storage door is outside what this is rated for.
9) What is the difference between a door shoe like the NGP 319EV and a surface door sweep?
A door shoe wraps the bottom edge of the door, so the aluminum carrier holds the vinyl under the door and shields the door bottom itself. A surface sweep just screws to the face of the door and drops a strip down. The shoe is the better choice on a hollow metal or wood door where you want the bottom edge protected as well as sealed, and the finned vinyl on the 319EV gives you multiple contact fins rather than a single blade.
10) Is the Pemko 210 a drop-in substitute for a 42 inch NGP 319EV?
Not on length. The Pemko 210 is a fire-rated door bottom shoe furnished in 36 inch aluminum construction, while the NGP 319EV covered here is a 42 inch shoe. On a 42 inch wide door the 210 leaves the opening short, so the 210 suits a 36 inch door and the 319EV suits the wider leaf. The 319EV also uses slotted screw holes for adjustment during installation and ships with #6 x 3/4 inch stainless steel SMS fasteners.
11) What is the difference between an L-shaped door shoe and a standard finned vinyl door shoe?
The Pemko 211V is an L-shaped door shoe, meaning the extrusion wraps the bottom and up one face of the door, and it carries a rain drip plus a GREENGUARD Gold certified Eco-V insert. The NGP 319EV is a finned vinyl door shoe in aluminum alloy 6063, T5 temper where the seal is the vinyl fin itself. The L profile changes how the shoe attaches to the door face, so confirm the door bottom condition before swapping one for the other.
12) I want a low-VOC or green-certified door shoe insert - what are my options?
The Pemko 211V carries a GREENGUARD Gold certified Eco-V insert. The NGP 319EV uses a thermoplastic PVC vinyl formulated with a bio-based plasticizer, which is a materials choice rather than a certification. If a project specification calls out a certified product by name, the 211V is the one that names the certification.
13) If I am standardizing door shoes across a facility with both rated and non-rated openings, what should I order?
Order two profiles from one family so the look stays consistent. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert for the rated leaves and the Pemko 209 is a non-rated door bottom shoe on a 1/2 inch by 1-3/8 inch profile with an Eco-V insert for the rest. Where the rated openings are also exterior, the Pemko 215 adds UL10C certification and a rain drip. The NGP 319EV covers non-rated commercial openings in Mill Aluminum and Dark Bronze.
14) Can I standardize on the NGP 319EV across a portfolio of buildings?
It is built as a commercial product and specified for offices, schools, healthcare, retail, warehouses, multi-tenant residential, and government buildings. For a fleet of non-rated openings it is a reasonable single line item: one 42 inch stock length cut to whatever door width you meet, two finishes, screws in the box. Labeled fire doors in the same portfolio still need a listed shoe ordered separately.
15) What is the vinyl on the NGP 319EV door shoe made of, and does it contain phthalate plasticizers?
Thermoplastic PVC with a bio-based plasticizer rather than a conventional one. If you are chasing green building credits or an owner has a materials restriction, that is the detail to put on the submittal. Cal-Royal's DS-403 is another aluminum shoe with a vinyl insert, and Pemko's 209 and 211V use their Eco-V insert, with the 211V carrying GREENGUARD Gold certification.
16) Cal-Royal DS-403 vs NGP 319EV door shoe - what is the difference?
Both are aluminum door shoes with a vinyl seal. The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert from the Door Shoes Series. The NGP 319EV is a finned vinyl shoe in aluminum alloy 6063, T5 temper, offered in Mill Aluminum and Dark Bronze, with slotted screw holes for adjustment and a 0 F to 140 F service range. Neither is a rain drip or fire-rated profile, so both suit interior and protected commercial openings.
17) Does a rain drip door shoe work as a substitute on an interior door?
It fits the same door bottom but adds a projection you may not want. The Pemko 211V and Pemko 215 both include a rain drip, a cap that sheds water and stands proud of the door face. On an interior commercial opening the NGP 319EV finned vinyl shoe in aluminum alloy 6063, T5 temper does the sealing without that projection, in Mill Aluminum or Dark Bronze.
