NGP 36VA Finned Vinyl Door Shoe with Mill Aluminum Construction and Stainless Steel Hardware

NGP 36VA Finned Vinyl Door Shoe with Mill Aluminum Construction and Stainless Steel Hardware

(No reviews yet) Write a Review

Model: 36VA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$42.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Finned Vinyl Door Shoe with Mill Aluminum Construction and Stainless Steel Hardware

Professional Door Bottom Sealing Solution

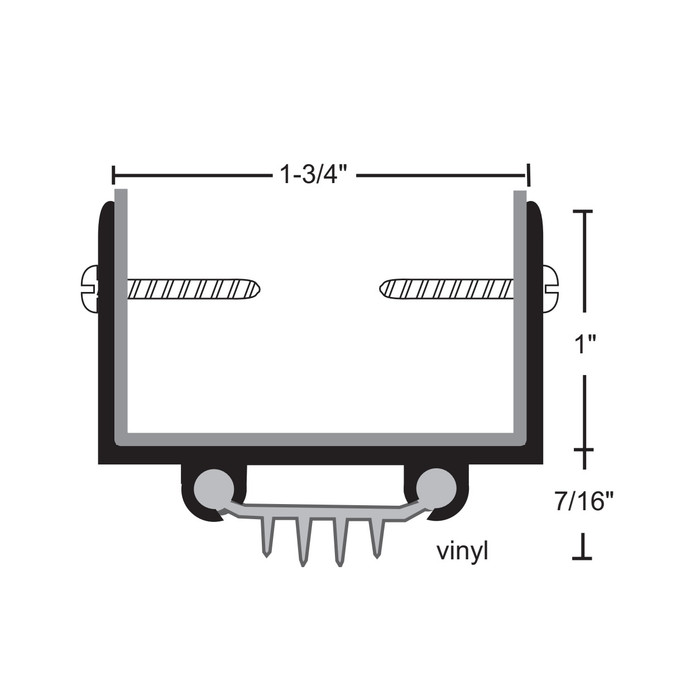

The NGP Finned Vinyl Door Shoe combines aluminum alloy 6063 T5 temper construction with thermoplastic polyvinyl chloride (PVC) sealing elements for effective door bottom weatherization. This economical door shoe features flame-resistant and moisture-resistant properties with an operational temperature range of 0 F to 140 F. The mill aluminum finish provides durability while slotted screw holes allow for precise installation adjustment.

Professional Features & Benefits

  • Temperature Performance Range: Operates effectively from 0 F to 140 F for reliable sealing across diverse climate conditions.
  • Durable Aluminum Construction: Aluminum alloy 6063 with T5 temper provides structural integrity and corrosion resistance for long-term performance.
  • Flame and Moisture Resistant: PVC vinyl formulation offers flame resistance and moisture protection for enhanced safety and weatherization.
  • Adjustable Installation: Slotted screw holes accommodate field adjustment during installation for optimal door-to-threshold sealing.
  • Stainless Steel Hardware: Includes #6 x 3/4" stainless steel SMS screws for secure mounting and corrosion resistance.
  • Environmentally Conscious Materials: PVC formulated with bio-based plasticizer for reduced environmental impact while maintaining performance.
  • Mill Aluminum Finish: Natural mill aluminum finish provides clean appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade weatherization with aluminum alloy 6063 T5 temper construction and flame-resistant PVC sealing elements rated for 0 F to 140 F operation. The adjustable installation design with slotted screw holes and stainless steel hardware ensures reliable long-term performance. Engineered for demanding commercial applications where effective door bottom sealing and durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 36VA-36 – Frequently Asked Questions

1) What lengths does the NGP 36VA finned vinyl door shoe come in?
The 36VA door shoe is stocked in 36 inch and 48 inch lengths. Use the 36 inch for a standard 3-0 door leaf and the 48 inch when you need to cover a 4-0 opening or want extra material to cut down on site.
2) Can I adjust an NGP 36VA door shoe after it is mounted to close a gap at the threshold?
Yes. The screw holes are slotted, so the shoe can be shifted up or down during install to set the vinyl against the threshold without re-drilling. That matters on doors that have settled or on an uneven slab where the gap is not the same across the width.
3) What is the closest equivalent to the NGP 36VA finned vinyl door shoe from another manufacturer?
The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the same basic construction as the NGP 36VA, which pairs an aluminum body with a thermoplastic PVC vinyl seal. The Pemko 209 door shoe is another aluminum-bodied shoe, carrying an Eco-V vinyl insert on a 1/2 inch by 1-3/8 inch profile, so it is the one to check when the door bottom clearance has to match a defined profile dimension.
4) The exterior door gets driving rain - should I use the NGP 36VA or something else?
The NGP 36VA is a finned vinyl shoe with a moisture-resistant PVC seal, but it does not carry a rain drip. For an exposed exterior opening where water needs to be thrown clear of the threshold, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 also combines a rain drip with its Eco-V insert.
5) Does the NGP 36VA door shoe come with mounting screws?
Mounting hardware is included: #6 x 3/4 inch stainless steel sheet metal screws. Stainless matters on an exterior bottom rail where the screw heads sit in the wet zone. Nothing else is needed for a standard install other than a drill and a hacksaw if the shoe has to be cut to length.
6) Will a vinyl door shoe hold up in cold weather or a hot loading dock?
The 36VA is rated for 0 F to 140 F service. Below zero or above that band the PVC fin is outside its rated range, so for a freezer door or an unconditioned high-heat area look at a different sealing material.
7) What is the difference between a finned door shoe like the NGP 36VA and a shoe with a rain drip?
A finned shoe seals the gap between the door bottom and the threshold only. A rain drip version adds a projecting lip on the face of the door that throws water clear of the joint, which is what you want on an exposed exterior opening with no overhang. The Pemko 211V is an L-shaped shoe with a rain drip, and the Pemko 215 pairs a rain drip with a fire rating. For interior or sheltered exterior doors the plain finned 36VA is the straightforward choice.
8) What else could I use instead of the NGP 36VA door shoe?
Comparable aluminum shoes with a vinyl insert include the Cal-Royal DS-403 and the Pemko 209, which uses an Eco-V vinyl insert and carries a 1/2 inch by 1-3/8 inch profile. The Pemko 211V adds a rain drip and a GREENGUARD Gold certified insert if a sustainable spec is driving the job. All are bottom-of-door shoes doing the same work; the differences are profile, insert material, and whether a rain drip or fire label is required.
9) Is a door shoe like the Pemko 210 the same thing as the NGP 36VA?
Both are door bottom shoes that mount to the face of the door bottom and carry a replaceable vinyl seal, so they serve the same role in the opening. The differences are in the details: the Pemko 210 is a fire-rated shoe in 36 inch aluminum construction, while the NGP 36VA is offered in 36 inch and 48 inch lengths with a mill aluminum finish, slotted screw holes for field adjustment, and #6 x 3/4 inch stainless steel SMS screws included.
10) We specify low-emitting materials on our projects - how does the NGP 36VA compare on that?
The NGP 36VA uses a PVC formulated with a bio-based plasticizer, which is its environmental credential. If the specification requires a third-party certification rather than a material statement, the Pemko 211V door shoe carries a GREENGUARD Gold certified Eco-V insert.
11) Is the NGP 36VA door shoe suitable for commercial buildings or is it a residential part?
It is classed as commercial hardware, and NGP lists it for office buildings, schools, healthcare, retail, warehouses, multi-tenant residential, and municipal buildings. The aluminum 6063 T5 extrusion and stainless fasteners are what make it hold up under commercial traffic.
12) Will a mill aluminum door shoe match my existing hardware finish?
Mill aluminum is the raw, uncoated extrusion finish, a natural silver grey. It reads as a close match alongside clear anodized aluminum storefront and aluminum thresholds, which is the usual pairing. If your openings are dark bronze or black, a mill shoe will stand out at the bottom rail.
13) Does the vinyl on the NGP 36VA use any environmentally friendly material?
The PVC is formulated with a bio-based plasticizer rather than a conventional petroleum one. If your project is chasing sustainable material credits, the Pemko 211V is the other route here, with a GREENGUARD Gold certified Eco-V insert.
