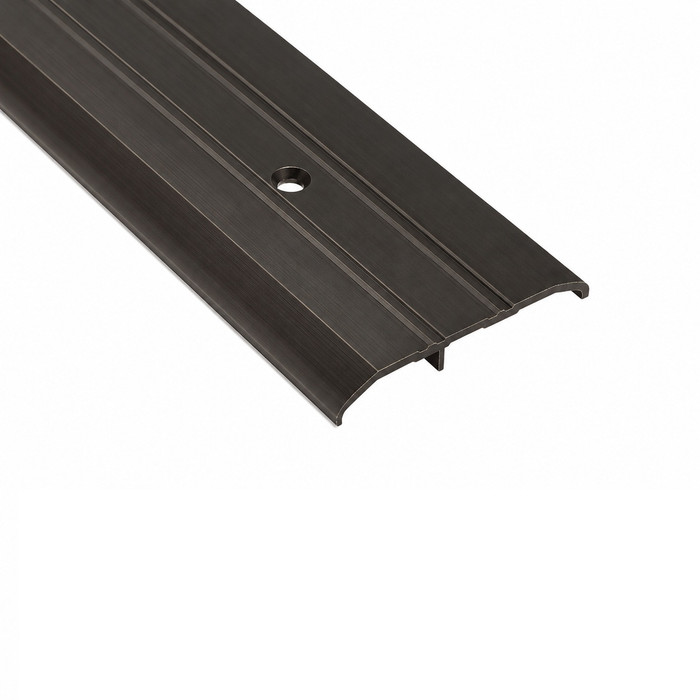

NGP 425EDKB 1/2" Saddle Threshold, Dark Bronze Finish

NGP 425EDKB 1/2" Saddle Threshold with Dark Bronze Anodized Finish - 5" Wide Aluminum Construction

(No reviews yet) Write a Review

Model: 425EDKB 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$98.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 1/2" Saddle Threshold with Dark Bronze Anodized Finish - 5" Wide Aluminum Construction

Professional Door Threshold Solution

The NGP 1/2" Saddle Threshold delivers professional-grade door transition performance with durable aluminum alloy 6063 construction in T5 temper. Measuring 5" wide by 1/2" tall with a fluted top design, this threshold provides reliable weather sealing and smooth transitions for commercial door applications. The dark bronze anodized finish offers superior corrosion resistance while maintaining an attractive appearance in high-traffic environments.

Professional Features & Benefits

  • Precise Dimensions: 5" wide x 1/2" tall profile designed for standard door applications with optimal clearance and weather sealing performance.
  • Heavy-Duty Construction: Aluminum alloy 6063 with T5 temper provides exceptional durability and corrosion resistance for long-term commercial use.
  • Fluted Top Design: Textured surface provides enhanced slip resistance and improved water drainage for safety and performance.
  • Professional Wall Thickness: Typical .120 wall thickness ensures structural integrity while maintaining lightweight installation at .80 lbs./ft.
  • Complete Installation Hardware: Includes #10 x 1-1/2" FH zinc plated wood screws for secure mounting to various substrates.
  • Dark Bronze Anodized Finish: DKB aluminum dark bronze/black anodized coating provides superior weather resistance and professional appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Thresholds
  • Product Type: Thresholds - Saddle
  • Series: Saddle Threshold Series
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP threshold products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction rated at .80 lbs./ft. for lightweight yet durable performance. The dark bronze anodized finish provides long-lasting corrosion resistance while the fluted top design ensures optimal slip resistance and drainage. Engineered for demanding commercial applications where dependable weather sealing and structural integrity are essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Series:
Saddle Threshold Series
Product Subgroup:
Door Thresholds
Product Type:
Thresholds - Saddle
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 425EDKB 36 – Frequently Asked Questions

1) Will the NGP 425E saddle threshold work in a doorway where I need to keep the rise low for wheelchair and cart traffic?
The 425E saddle is 1/2 inch tall and 5 inches wide, so the rise a wheel or a foot has to cross is a half inch. If you need a lower profile than that, Pemko's 272 Series flat saddle is a 1/4 inch by 6 inch aluminum threshold and is described as ADA compliant. Both are aluminum saddles that sit on the floor under the door; the difference is height and width, so check what your door bottom clearance and any door sweep will tolerate before dropping from a 1/2 inch to a 1/4 inch rise.
2) What lengths does the NGP 425EDKB threshold come in, and can I cut it down for a 32 inch door?
Two lengths are stocked: 36 inches and 72 inches. The 36 inch piece covers a standard 3-0 single opening, and the 72 inch piece covers a pair of doors or gives you stock to cut. It is 6063-T5 aluminum with a typical .120 wall, so it cuts cleanly with a carbide blade on a miter saw. Cut ends leave bare aluminum, since the dark bronze anodizing is a surface finish and won't wrap the fresh cut.
3) Do I need to buy fasteners separately for the NGP 425E saddle threshold?
No separate hardware order needed. The threshold ships with #10 x 1-1/2 inch flat head zinc plated wood screws. Those are sized for wood subfloors and wood sills. If you are anchoring into concrete or a steel sill, you will need to supply your own anchors, since the included screws are wood screws.
4) Is a saddle threshold like the NGP 425E the right choice, or do I need a different threshold type for an exterior door?
A saddle is a flat transition piece that sits under the door across the opening. The 425E is a 5 inch wide, 1/2 inch high aluminum saddle with a fluted top, which gives the surface some texture for traction and lets water shed rather than pool. It seals against a door bottom sweep or shoe, so on an exterior opening you are pairing it with a sweep, not relying on the saddle alone. If your opening needs a raised stop or a thermal break to seal against weather without a sweep, a saddle profile is the wrong shape for the job.
5) What is the difference between the Cal-Royal CR2000 and CR3700 saddle thresholds?
Both are Cal-Royal saddle threshold series, and the split is the fire rating they carry. The CR2000 is described as fire rated and ADA compliant. The CR3700 is rated for 3-hour positive pressure. If your spec names an hourly rating and positive pressure at the sill, the CR3700 is the one written to that; the CR2000 pairs its fire rating with ADA compliance.
6) Will the dark bronze finish on the NGP 425E hold up in an exterior or high traffic opening?
The DKB dark bronze/black anodized coating is an anodized finish, not a paint, so it is integral to the aluminum and resists corrosion rather than chipping off an edge. The base metal is 6063 alloy in T5 temper. Anodized aluminum does show wear where shoes and cart wheels track over the same line, so on a heavily used entry expect the traffic path to brighten over time.
7) Can I use the NGP 425E saddle threshold to standardize thresholds across a commercial building?
It is specified for commercial use, and the 72 inch length lets you cut multiple openings out of one stick so the profile and the dark bronze finish match door to door. Every opening you put it on gets the same 5 inch wide, 1/2 inch high saddle, which matters when you are matching a corridor or a bank of tenant entries. Order the 36 inch pieces for single 3-0 doors and the 72 inch for pairs or for cut stock.
