NGP 426EDKB 6" x 1/2" Saddle T...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$114.36

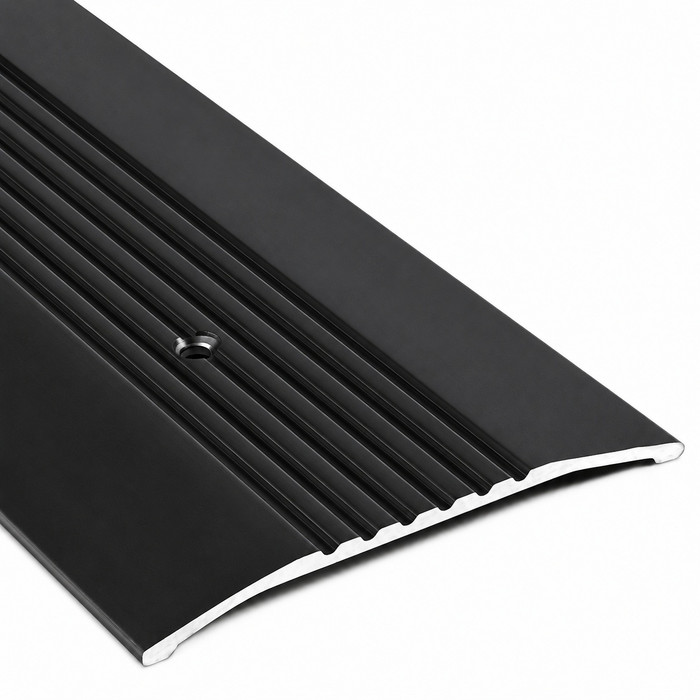

NGP 426EDKB 1/2" Saddle Threshold, Dark Bronze Finish

NGP 426EDKB 6" x 1/2" Saddle Threshold with Dark Bronze Anodized Finish

(No reviews yet) Write a Review

Model: 426EDKB-34

In Stock (leaves warehouse same day if ordered before 3pm ET)

$114.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 6" x 1/2" Saddle Threshold with Dark Bronze Anodized Finish

Professional Door Threshold Solution

The NGP 6" x 1/2" Saddle Threshold provides a durable transition solution for commercial door applications. Constructed from aluminum alloy 6063 with T5 temper for enhanced strength, this threshold features precise 6" width by 1/2" height dimensions with a fluted top design for improved traction and appearance. The dark bronze anodized finish delivers long-lasting protection and professional aesthetics for demanding commercial environments.

Professional Features & Benefits

  • Precise Dimensions: 6" wide x 1/2" tall profile designed for standard commercial door applications with optimal clearance and functionality.
  • Heavy-Duty Construction: Aluminum alloy 6063 with T5 temper provides exceptional durability and corrosion resistance for high-traffic commercial use.
  • Fluted Top Design: Textured surface enhances traction and safety while providing an attractive professional appearance.
  • Robust Wall Thickness: Typical .120" wall thickness ensures structural integrity and long-term performance under heavy use.
  • Complete Installation Hardware: Includes #10 x 1-1/2" FH zinc plated wood screws for secure mounting and professional installation.
  • Lightweight Efficiency: At .97 lbs./ft., the threshold provides strength without excessive weight for easier handling and installation.
  • Dark Bronze Anodized Finish: DKB aluminum dark bronze/black anodized coating offers superior corrosion protection and maintains appearance over time.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Thresholds
  • Product Type: Thresholds - Saddle
  • Series: Saddle Threshold Series
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP threshold products deliver professional-grade reliability with aluminum alloy 6063 construction and T5 temper rating for enhanced durability. The precision-engineered fluted top design and robust .120" wall thickness ensure dependable performance in demanding commercial applications where consistent door operation and safety are essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Series:
Saddle Threshold Series
Product Subgroup:
Door Thresholds
Product Type:
Thresholds - Saddle
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 426EDKB-34 – Frequently Asked Questions

1) What lengths does the NGP 426E saddle threshold come in?
Six cut lengths: 34, 40, 46, 70, 82 and 94 inches. The 34, 40 and 46 inch pieces cover single door openings, while 70, 82 and 94 inches are meant for pairs of doors or wide frames. Pick the length that spans the full frame opening, jamb to jamb, since the profile is 6 inches wide across the sill regardless of length.
2) How much height does a 1/2 inch saddle threshold add under the door?
The 426E profile stands 1/2 inch tall and 6 inches wide, so the door bottom needs at least 1/2 inch of clearance over the finished floor at the sill. If the door is already hung tight to the floor, you either undercut the door or move to a lower-profile unit. For comparison, Pemko's 272 Series flat saddle is a 1/4 inch by 6 inch profile if you need half that rise.
3) Are mounting screws included with the NGP 426E threshold or do I buy them separately?
Screws come with it. Each threshold ships with #10 x 1-1/2 inch flat head zinc plated wood screws, which are sized for wood subfloor or wood sill. Going into concrete or tile, you will need to substitute masonry anchors of your own.
4) Will a dark bronze anodized threshold match the bronze door hardware on my other openings?
The finish is DKB, aluminum dark bronze/black anodized. It reads as a deep bronze-black and is the usual companion to dark bronze weatherstrip and door bottoms on storefront and commercial hollow metal openings. Anodizing is integral to the aluminum rather than a topcoat, so it holds its tone under foot traffic better than a painted finish.
5) Can I cut an NGP saddle threshold down to fit my opening?
Yes. Aluminum extrusions like this are routinely cut to length on site with a miter saw and a non-ferrous blade, and the fluted top and .120 inch wall cut cleanly. Order the next length up from your jamb-to-jamb measurement and trim, rather than ordering short. Cut ends are raw aluminum, so plan the cut at the jamb where it is hidden.
6) For standardizing thresholds across a facility, how do the NGP 426EDKB and the Cal-Royal saddle series differ?
The NGP 426EDKB is a saddle threshold sold in cut lengths of 34, 40, 46, 70, 82 and 94 inches with a dark bronze anodized finish and a fluted walking surface. The Cal-Royal CR2000 and CR3700 are also saddle threshold series, with the CR2000 described as fire rated and ADA compliant and the CR3700 carrying a 3-hour positive pressure fire rating. A facility with a mix of rated and non-rated openings often uses a rated series at the rated doors and the NGP saddle elsewhere.
7) What is the difference between a saddle threshold and a panic or offset threshold?
A saddle is a symmetrical humped or flat bar that sits under the door and lets it close onto the high point, which is what you want for an interior transition or a simple exterior sill where drainage is not an issue. Offset and panic profiles step down on the exterior side to shed water and stop it running inboard. The 426E is a saddle profile, 6 inches wide by 1/2 inch high with a fluted walking surface.
8) Can I standardize on one threshold across a whole building with this profile?
That is what the 426E is set up for. One 6 inch by 1/2 inch profile in a single dark bronze anodized finish, offered in six lengths from 34 to 94 inches, covers singles and pairs across offices, schools, healthcare, retail, warehouse, multi-tenant residential and municipal buildings with one part number family and one screw pack. Rated openings are the exception and need a fire rated threshold instead.
