NGP 5060 Self-Adhesive Silicon...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$56.95
$29.95

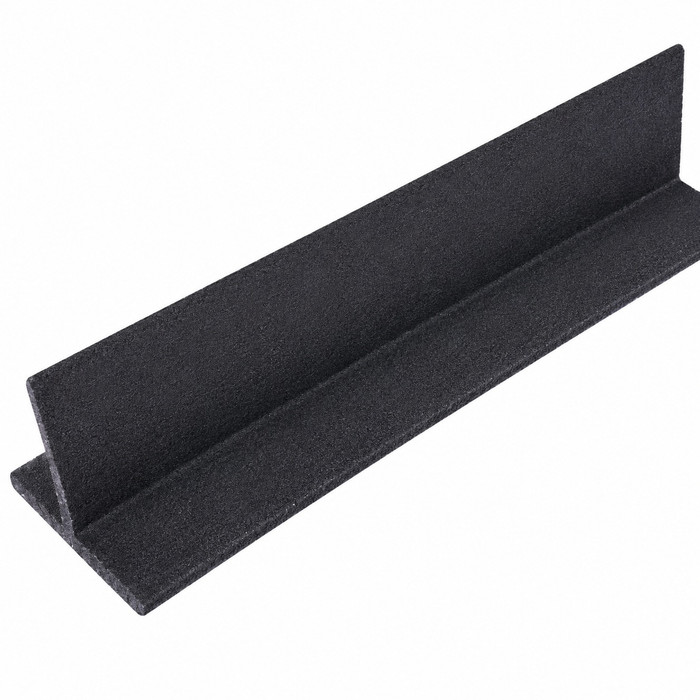

NGP NGP 5060 Self-Adhesive Gasketing, Positive Pressure Silicone Fin Smoke Seal NGP-5060

NGP 5060 Self-Adhesive Silicone Fin Smoke Seal Gasketing with Positive Pressure Design

(No reviews yet) Write a Review

Model: 5060C-17
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.95
$29.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Self-Adhesive Silicone Fin Smoke Seal Gasketing with Positive Pressure Design

Professional Fire-Rated Smoke Sealing Solution

NGP Self-Adhesive Silicone Fin Smoke Seal Gasketing delivers professional-grade smoke containment with synthetic rubber polymer siloxane construction. This positive pressure smoke seal features 1/2" wide x 5/16" tall dimensions and operates effectively across temperature ranges from -100 F to 500 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat, cold, air infiltration and smoke infiltration, ensuring reliable fire safety compliance.

Professional Features & Benefits

  • Precise Dimensions: 1/2" wide x 5/16" tall profile designed for optimal smoke sealing performance in door and frame applications.
  • Extreme Temperature Performance: Operates from -100 F to 500 F while maintaining flexibility and sealing integrity at temperature extremes.
  • Fire Suppression System Compatibility: Recommended for areas using FM200 or Halon Fire Suppression Systems for enhanced fire safety integration.
  • Advanced Siloxane Construction: Synthetic rubber polymer siloxane material provides excellent flexibility, memory, and flame resistance for long-term reliability.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration ensuring code compliance.
  • High-Performance Adhesive: Modified acrylic pressure sensitive adhesive provides high initial adhesion and long-term holding power for permanent mounting in exterior or interior locations.
  • Chemical and Weather Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and chemical influence for durable performance.
  • Multiple Roll Lengths: Available in 17' and 21' rolls with brown, charcoal, and clear color options for various aesthetic requirements.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Fire-Rated Door Assemblies
  • Healthcare Facility Smoke Compartmentalization
  • Educational Institution Fire Safety Systems
  • High-Rise Building Smoke Control
  • Industrial Facility Fire Suppression Areas
  • Government and Municipal Building Safety Compliance
  • Multi-Tenant Residential Fire Protection

Why Choose NGP Quality?

NGP Self-Adhesive Silicone Fin Smoke Seal Gasketing delivers professional-grade fire safety performance with BHMA certified construction and synthetic rubber polymer siloxane materials rated for extreme temperature operation. The modified acrylic pressure sensitive adhesive system provides one-year shelf life when properly stored and long-term holding power for permanent installations. Engineered for demanding commercial fire safety applications where reliable smoke containment and code compliance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 5060C-17 – Frequently Asked Questions

1) How much space does the NGP 5060 gasket take up in the frame rebate?
The 5060 profile is 1/2 inch wide by 5/16 inch tall. That 5/16 inch is what stands proud into the gap between door and stop, so check that your door has at least that much clearance at the stop before the silicone fin gets crushed or holds the door off the latch.
2) Do I have to mortise or drill the frame to install NGP 5060 smoke seal?
No cutting, no fasteners. The 5060 mounts with a modified acrylic pressure sensitive adhesive backing that sticks straight to a clean frame stop, interior or exterior. That makes it the option when you can't machine an existing frame, unlike a channel type gasket such as the Cal-Royal PG-601, which is an aluminum channel carrying a vinyl insert and gets mechanically mounted.
3) Can Cal-Royal PG-601 be used instead of NGP 5060 on a fire-rated smoke door?
Only one of the two carries a stated smoke rating. The NGP 5060 is a positive pressure silicone fin smoke seal BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration, and it is the one to specify where the opening has to hold smoke. The Cal-Royal PG-601 is described as aluminum channel perimeter gasketing with a vinyl insert, a perimeter seal for air and light gaps. If the inspector is checking smoke containment on a fire-rated assembly, use the NGP 5060 and its A156.22 certification.
4) What is the difference between NGP 5060 smoke seal gasketing and Cal-Royal PG-601 perimeter gasketing?
They mount two different ways. The NGP 5060 is a self-adhesive silicone fin seal that sticks directly to the stop with a modified acrylic pressure sensitive adhesive, so it goes on without fasteners and without machining the frame. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing that carries a vinyl insert in the channel, so it is a rigid carrier fastened to the frame with the sealing element held in the extrusion. The NGP 5060 is a positive pressure silicone fin at 1/2 inch wide by 5/16 inch tall, BHMA certified to ANSI/BHMA A156.22 for heat, cold, air infiltration and smoke infiltration, and rated from -100 F to 500 F. Choose the adhesive fin when the frame is finished and you do not want to drill it; choose the aluminum channel when you want a fastened, replaceable-insert perimeter seal.
5) Can silicone smoke seal handle an unheated garage, a boiler room, or a walk-in freezer door?
Temperature range on the 5060 runs -100 F to 500 F, so mechanical rooms, unconditioned garages, and cold storage vestibules are all inside it. The siloxane synthetic rubber keeps its flexibility and memory at both ends of that range, which matters because a gasket that stiffens in cold stops sealing the moment the door closes on it.
6) Is this the right seal for a room protected by FM200 or Halon?
Yes, the 5060 is recommended for areas served by FM200 or Halon fire suppression systems. Those systems depend on the enclosure holding the agent concentration, so the perimeter seal is part of making the suppression work, not just a smoke measure.
7) Adhesive smoke seal or an aluminum channel perimeter gasket, which should I use?
Depends on the frame and how long you need it to last. The NGP 5060 is a self-adhesive silicone fin, so it goes on an existing frame with nothing more than a clean surface, and it carries the ANSI/BHMA A156.22 certification for smoke infiltration. The Cal-Royal PG-601 is an aluminum channel holding a vinyl insert, mechanically applied, and the insert can be replaced later without redoing the whole perimeter. Retrofit crews working occupied buildings generally take the adhesive fin; new frames or high-abuse openings favor the channel.
8) Can I standardize NGP 5060 across every fire door in my building?
Nothing about the 5060 is handed or door-specific, it's a continuous adhesive backed fin cut to length, so one product covers left hand and right hand openings, singles and pairs, hollow metal and wood frames alike. Pick one color for the fleet, order in 17 or 21 foot rolls, and the only variable per opening is how many feet you cut.
9) Which gasketing holds up better in a high-heat mechanical or fire suppression room, NGP 5060 or a vinyl insert seal?
Material is the deciding factor. The NGP 5060 uses synthetic rubber polymer siloxane and is rated to operate from -100 F to 500 F while keeping flexibility and sealing integrity, and it is recommended for areas using FM200 or Halon fire suppression systems. The Cal-Royal PG-601 seals with a vinyl insert carried in an aluminum channel. For rooms that see temperature extremes or suppression system discharge, the silicone fin construction of the NGP 5060 is the one built for that service; the vinyl insert channel is a general perimeter seal.
10) If a frame already has aluminum channel gasketing, do I need to remove it to add NGP 5060?
They are separate systems and they mount differently. The Cal-Royal PG-601 is an aluminum channel that is fastened to the frame and holds a vinyl insert, so the sealing element is replaced by pulling the insert out of the extrusion. The NGP 5060 is a self-adhesive silicone fin applied with a modified acrylic pressure sensitive adhesive to a clean surface, so it needs bare stop or frame face to bond to, not the top of an existing extrusion. On a retrofit where the channel is staying, replace the insert; where you are converting the opening to a smoke seal, strip the old gasketing back to a clean surface and run the NGP 5060 in 17 foot or 21 foot rolls in brown, charcoal or clear.
11) What colors does NGP 5060 smoke seal come in, and which one disappears on a painted frame?
Three: brown, charcoal, and clear. Charcoal reads best against dark bronze and black frames, brown against wood and bronze anodized, and clear is the one to use when you don't want the seal to show on a light or custom painted frame. All three are offered in both the 17 foot and 21 foot roll.
12) Will an adhesive backed smoke seal survive cleaning chemicals in a hospital corridor?
The silicone fin resists aging, weathering, UV, water, detergent, alcohol and general chemical exposure, which covers the wipe-down routine in healthcare and food service corridors. It's a commercial grade product, so it's built for that traffic rather than residential duty.
13) How should I prep the frame so adhesive smoke seal doesn't peel off later?
The 5060 uses a modified acrylic pressure sensitive adhesive with high initial tack and long term holding power, meant for permanent mounting. That adhesive only performs on a clean, dry, fully cured surface, so on a freshly painted frame let the paint cure before applying, and wipe the stop free of dust and oil. Roll it out and press the full length rather than tacking it at the ends.
