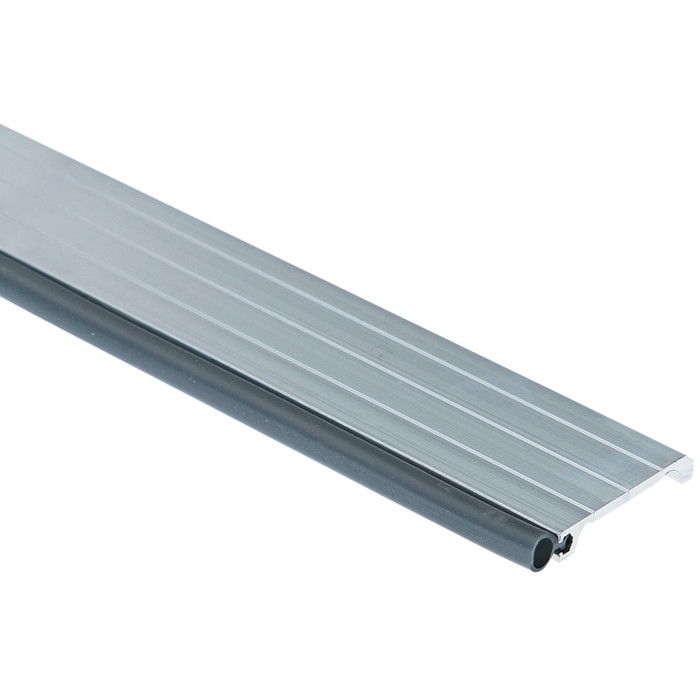

NGP 700EN Neoprene Perimeter Seal with Mill Aluminum Frame - BHMA Certified Door Weatherstripping

Professional Door Weathersealing Solution for Commercial Applications

The NGP 700EN Neoprene Perimeter Seal combines durable mill aluminum construction with high-performance synthetic rubber polymer blend weatherstripping for comprehensive door perimeter sealing. This BHMA certified weatherseal features aluminum alloy 6063 T5 temper frame construction with chloroprene and EPDM neoprene gasketing rated for temperature ranges from -20 F to 200 F. The system is specifically designed for compatibility with parallel arm closers and rim exit device strikes without requiring notching modifications.

Professional Features & Benefits

  • Temperature Performance Range: Rated for -20 F to 200 F operation with excellent resistance to temperature extremes for year-round reliability.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring compliance with commercial building standards.
  • Premium Material Construction: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer blend combining chloroprene and EPDM for superior durability.
  • Parallel Arm Closer Compatibility: Designed specifically for use with parallel arm closers with no break-in seal required for closer mounting applications.
  • Exit Device Integration: Allows mounting of rim exit device strikes without notching the gasketing for streamlined installation.
  • Weather Resistance: Flame resistant and moisture resistant construction with good resistance to ozone, sunlight and aging for long-term performance.
  • Installation Flexibility: Jamb sections furnished with slotted holes for field adjustment and self-drilling #8 Tek-type screws included for secure mounting.
  • Superior Material Properties: Very good abrasion resistance, tensile strength and memory characteristics for consistent sealing performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP 700EN weathersealing systems deliver professional-grade performance with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer blend gasketing certified to ANSI/BHMA A156.22 standards. The flame resistant and moisture resistant materials provide reliable sealing performance across temperature ranges from -20 F to 200 F with excellent resistance to ozone, sunlight and aging. Engineered for demanding commercial applications where consistent weatherproofing and closer compatibility are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 700EN-36 – Frequently Asked Questions

1) Will the NGP 700EN perimeter seal work on a door with a parallel arm closer mounted on it?
That's the case it's built for. The 700EN head and jamb seal is made to run past a parallel arm closer with no break-in of the seal required at the closer shoe, so you don't have to cut the gasket to clear the arm. Same idea at the strike jamb: a rim exit device strike mounts over it without notching the gasketing. On a typical commercial opening with a surface closer and a rim device, that removes the two cuts installers usually have to make in a perimeter seal.
2) What lengths does the NGP 700EN perimeter seal come in, and how do I order enough for a full door opening?
Six lengths are offered: 36, 44, 72, 84, 96 and 204 inches. For a standard single opening you buy a head piece plus two jamb pieces, so a 3070 door usually takes a 36 or 44 inch head and two 84 inch jambs. The 204 inch length is the bulk stick, enough to cut a head and both jambs for one opening out of a single piece. Pieces cut to length in the field, and the jamb sections come with slotted holes so you can shift them in or out to set the seal against the door face.
3) Is the NGP 700EN weatherstrip rated for exterior doors in cold climates?
The neoprene gasketing carries a service range of -20 F to 200 F and is certified to the ANSI/BHMA A156.22 heat and cold performance tests, so it's a genuine exterior seal rather than an interior smoke or light seal. The compound is a chloroprene and EPDM blend with good resistance to ozone, sunlight and aging, which is what keeps a jamb seal on a south or west elevation from going hard and taking a set after a couple of seasons.
4) What is a cross-brand equivalent to the NGP 700EN perimeter seal for a commercial door opening?
The closest cross-brand counterpart is the Cal-Royal PG-601, an aluminum channel perimeter gasketing that seals the same way - a metal channel fastened to the jamb and head carrying a compressible insert. The difference is in the insert material and the certification behind it. The Cal-Royal PG-601 carries a vinyl insert, while the NGP 700EN uses a synthetic rubber polymer blend of chloroprene and EPDM neoprene in a 6063 T5 temper mill aluminum frame, rated for -20 F to 200 F and certified to the ANSI/BHMA A156.22 heat and cold performance tests. For an institutional buyer writing a spec that calls out A156.22, the 700EN answers that line directly; for a straight jamb-and-head perimeter seal without a certification callout, both do the same job in the opening.
5) Which perimeter seal should I use on a door that already has a parallel arm closer and a rim exit device?
The NGP 700EN is the one built for that opening. It is designed for compatibility with parallel arm closers with no break-in seal required at the closer mounting, and it allows a rim exit device strike to be mounted without notching the gasketing. That matters on a hardware-heavy commercial opening, because a perimeter seal that has to be cut around the closer shoe and the strike loses its seal exactly where the interruption is. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert and is the general-purpose alternative for a plain opening; when the closer arm and the exit strike both land on the jamb and head, specify the 700EN so the seal is not interrupted at either point.
6) Do I need to buy screws or anchors separately to install the 700EN seal?
Fasteners come with it. Self-drilling #8 Tek-type screws are included, which is what lets it go straight into a hollow metal frame without pre-drilling and tapping. What isn't part of a perimeter seal is the bottom of the door, so if you're sealing the full opening you still need a door bottom or sweep and, on an exterior opening, a threshold.
7) What's the difference between the NGP 700EN and a vinyl-insert perimeter gasket like the Cal-Royal PG-601?
Both are aluminum channel carriers with a resilient insert that mount to the frame stop. The insert material is the split: the 700EN uses a chloroprene and EPDM neoprene blend rated -20 F to 200 F and certified to ANSI/BHMA A156.22, while the Cal-Royal PG-601 is an aluminum channel with a vinyl insert. Vinyl is the common general-purpose choice; neoprene is what you specify when the seal sees real cold, heat, or sun exposure, because that's where vinyl stiffens and takes a set first.
8) Will a perimeter seal like the 700EN stop the draft at the bottom of my door?
No. A perimeter seal handles the head and the two jambs only, where the door meets the frame stop. The gap under the door is a separate part: you need a door bottom or sweep on the door, and usually a threshold at the sill on an exterior opening. Buyers chasing a draft complaint often order perimeter gasketing alone and are surprised the biggest leak is still there.
9) Can the 700EN perimeter seal be used on a pair of doors?
Yes, with one caveat about the middle. The seal mounts to the frame, so on a pair you run a head piece across the top and a jamb piece down each outer jamb. Where the two door leaves meet there's no frame to fasten to, so that joint is closed by an astragal, not by perimeter gasketing. Order enough head length to span both leaves, which is where the 96 and 204 inch sticks come in.
10) Is a vinyl insert perimeter gasket the same thing as the NGP 700EN neoprene seal?
They are the same class of part - an aluminum perimeter channel with a compressible insert - but the insert is not the same material, and on a temperature-exposed opening that is the deciding difference. The Cal-Royal PG-601 carries a vinyl insert. The NGP 700EN carries a synthetic rubber polymer blend of chloroprene and EPDM neoprene, flame resistant and moisture resistant, with good resistance to ozone, sunlight and aging, very good abrasion resistance, tensile strength and memory, and a stated -20 F to 200 F range certified to the ANSI/BHMA A156.22 heat and cold tests. A property manager rekitting exterior doors on a cold-climate building or a warehouse dock where the gasket takes cart traffic should treat these as different products, not interchangeable inserts.
11) Is the mill aluminum finish on the 700EN paintable to match my frames?
The frame is aluminum alloy 6063 T5 temper supplied in mill finish, which is the raw uncoated extrusion, so it reads bright silver next to a painted or bronze frame. 6063 takes paint after normal aluminum prep, and installers routinely finish it on site to match the frame color. If you want the seal to disappear against a dark frame, plan on painting the channel only, not the gasket.
12) Can I standardize the 700EN perimeter seal across a whole building's exterior openings?
That's a reasonable spec for a facility standard. It's a commercial-duty seal certified to ANSI/BHMA A156.22, which is the standard purchasing departments in healthcare, education and government facilities typically reference for gasketing, and it's stocked in six lengths from 36 up to 204 inches so head and jamb pieces for most openings come off the same part number. Standardizing on one seal also means one gasket profile in the stockroom when a maintenance tech replaces a damaged section.
13) Does the 700EN neoprene seal hold up to constant door traffic without tearing?
The gasket compound is specified for very good abrasion resistance, tensile strength and memory, which are the three properties that matter on a high-cycle opening: memory is what brings the bulb back to shape after the door has been slammed a few thousand times, abrasion resistance is what keeps the door edge from chewing it up. The compound is also flame resistant and moisture resistant, so it's suited to entrances in retail, schools and multi-tenant residential where the door never stops moving.
