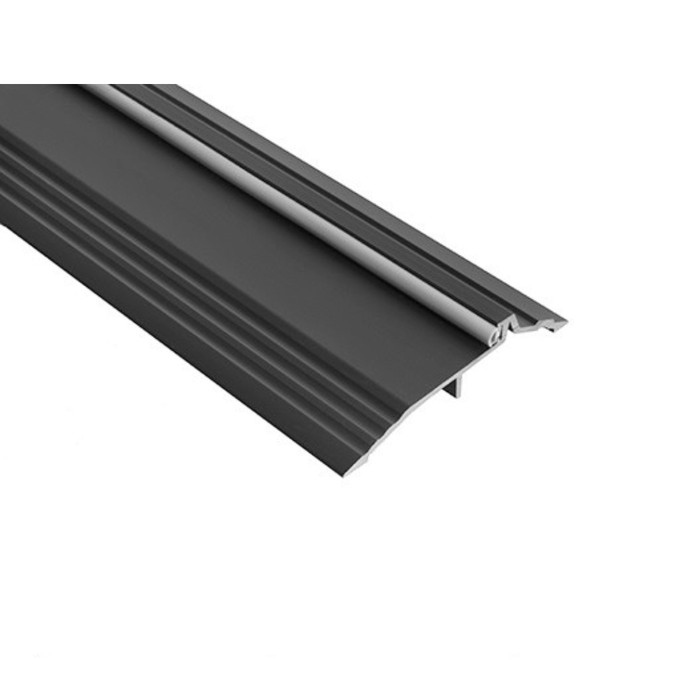

NGP 896VDKB Bumper Seal Threshold 5" x 1/2" with Vinyl Seal Dark Bronze Finish

NGP 896VDKB Bumper Seal Threshold 5" x 1/2" with Vinyl Seal Dark Bronze Finish

(No reviews yet) Write a Review

Model: 896VDKB-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$92.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 896V Bumper Seal Threshold 5" x 1/2" with Vinyl Seal Dark Bronze Finish

Professional Door Threshold Solution with Integrated Bumper Seal

The NGP 896V Bumper Seal Threshold combines durable aluminum construction with an integrated vinyl seal for effective door bottom sealing. This 5" wide x 1/2" tall threshold features aluminum alloy 6063 T5 temper construction with a fluted top design and dark bronze finish. The black vinyl bumper seal provides reliable weather sealing while the included #10 x 1-1/2" FH zinc plated wood screws ensure secure installation.

Professional Features & Benefits

  • Optimal Dimensions: 5" wide x 1/2" tall profile provides effective sealing while maintaining low-profile appearance for smooth door operation.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper construction with .125" typical wall thickness delivers exceptional durability for commercial applications.
  • Integrated Vinyl Seal: Black vinyl bumper seal provides reliable weather sealing and sound dampening for enhanced door performance.
  • Fluted Top Design: Textured fluted surface provides slip resistance and enhanced grip for safe foot traffic.
  • Complete Installation Package: Includes #10 x 1-1/2" FH zinc plated wood screws specifically matched to dark bronze thresholds for professional installation.
  • Lightweight Design: At .85 lbs./ft., the threshold provides strength without excessive weight for easier handling and installation.
  • Professional Finish: Dark bronze finish coordinates with commercial door hardware and provides corrosion resistance for long-term performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 896V
  • Product Subgroup: Door Thresholds
  • Product Type: Bumper Seal Thresholds
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP threshold products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and precision manufacturing. The integrated vinyl bumper seal design provides effective weather sealing while the fluted top surface ensures safe foot traffic. Engineered for demanding commercial applications where dependable performance and professional appearance are essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Bumper Seal Thresholds
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Model:
896V
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 896VDKB-36 – Frequently Asked Questions

1) Will the NGP 896V bumper seal threshold fit a 36 inch door opening?
The 896V comes cut to 36, 42, 48, 60 and 72 inch lengths, so a standard 36 inch single door is covered directly. Measure the frame opening rather than the door slab, since the threshold runs frame to frame. For a pair of doors or a wider opening, step up to the 60 or 72 inch length and cut down on site.
2) How tall is the NGP 896V threshold, and will it clear my door bottom without dragging?
Half an inch of rise across a 5 inch wide profile. That is a low ramp, so an existing door with normal undercut usually swings over it without cutting the slab, and the fluted top gives foot traffic grip on the way across. The black vinyl bumper sits on the threshold and takes the contact from the door bottom, so plan your door clearance to the top of that seal, not to the bare aluminum.
3) Does the 896V threshold seal the door bottom, or do I still need a door sweep?
The seal is built into the threshold. The 896V carries a black vinyl bumper that the door bottom closes against, which handles the weather and sound gap at the sill. It is the alternative to hanging a separate sweep or shoe on the door itself, and it is the right choice when you do not want hardware showing on the door face or when the door bottom is already worn.
4) Do I need to buy screws and anchors separately for the NGP 896V threshold?
Fasteners ship with it: #10 x 1-1/2 inch flat head zinc plated wood screws, matched to the dark bronze thresholds. Those are wood screws, so they suit a wood sub-sill or wood framing as supplied. Concrete or a steel sill means sourcing your own anchors and drilling the threshold to suit.
5) Can I cut the NGP 896V threshold down to my opening width?
Yes. It is extruded 6063 T5 aluminum, so it cuts clean with a miter saw and a non-ferrous blade. Standard practice on a job is to order the next length up and trim to the frame. Order the 60 or 72 inch piece when your opening falls between the stock lengths of 36, 42, 48, 60 and 72 inches.
6) What is the difference between a bumper seal threshold and a plain saddle threshold?
A plain saddle is bare metal, so the door bottom closes against nothing and any gap at the sill stays open. A bumper seal type like the 896V carries a vinyl seal on top that the door compresses when it shuts, closing that gap for weather and sound. Pick the bumper type on exterior or acoustically sensitive openings; a plain saddle is enough on an interior opening where you only need to cover the floor transition.
7) Will the dark bronze finish on the 896V match my existing bronze door hardware?
Dark bronze is the finish on the 896VDKB, and the supplied screws are the dark bronze match, so the fasteners do not read as bright spots across the sill. It is the standard pairing for openings already running dark bronze closers, exit devices and frames. Aluminum finish, not a plated brass, so expect the flat commercial bronze tone rather than a polished one.
8) Is the vinyl seal on the 896V replaceable when it wears out?
The seal insert is black vinyl carried in the aluminum threshold body, so the wear part is the vinyl rather than the extrusion. For property managers running a lot of doors, that means the sill hardware stays and only the seal is a consumable. Order the vinyl by the same 896V model designation so the insert profile matches.
