Nibco 807 DWV 90-Degree Elbow ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$195.01

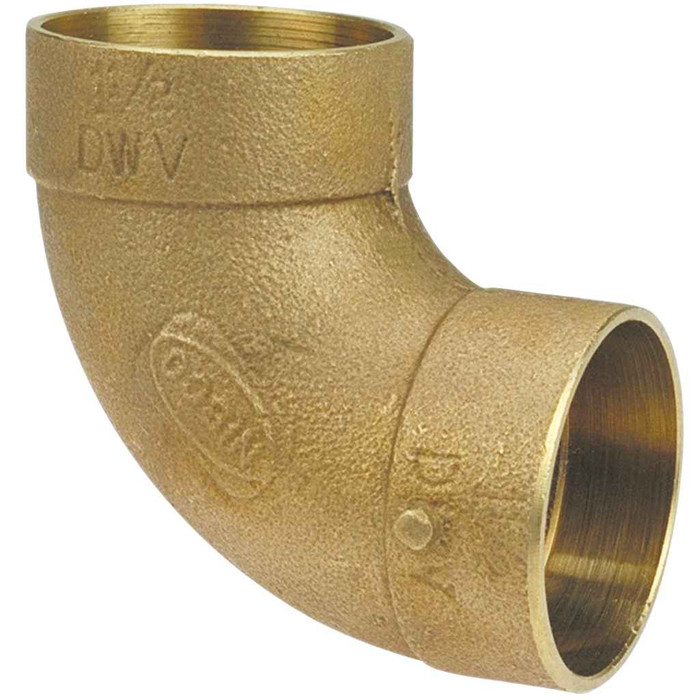

Nibco 807 DWV 90-Degree Elbow C x C - Cast

Nibco 807 DWV 90-Degree Elbow C x C - Cast

(No reviews yet) Write a Review

Model: E055550

In Stock (leaves warehouse same day if ordered before 3pm ET)

$195.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The 90-degree elbow features solder cups. The fitting provides a means of changing the pipeline direction 90 degrees. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Dezincification resistant
  • ASTM B584 Alloy C84400
  • Material and workmanship per ASME B16.23

Copper Fittings Installation Instructions

Manufacturer Resources

Product Specs

All Application(s):
DWV Drain / Waste / Vent
All Basic Material:
Bronze
Classification:
Solder DWV Elbows
End Connection:
Solder
Fitting Bend Angle:
90 Deg (1/4 Bend)
Metal End Connection Type:
C x C
Product Group:
Fitting
Product Type:
Solder DWV Elbows
System Use:
Commercial Plumbing, Residential Plumbing
Product Subgroup:
Elbow
Department:
Plumbing
Country Of Origin:
United States

Nibco E055550 – Frequently Asked Questions

1) Does the Nibco 807 elbow solder onto copper pipe, or does it thread?
It solders. Both ends are C x C, meaning female solder cups that slip over the outside of copper tube and are sweated with solder. There are no threads on this fitting, so if your line terminates in threaded pipe you need a separate adapter.
2) Can I use the Nibco 807 elbow on a pressure water line?
No. The 807 is a DWV fitting, built for drain, waste and vent service only. DWV fittings have thinner walls than pressure copper fittings and are not rated for supply piping. For domestic water use a pressure-rated copper fitting instead.
3) What pipe sizes does the Nibco 807 DWV elbow come in, and are there reducing versions?
Four configurations: 1-1/2 x 1-1/4 inch, 2 x 1-1/2 inch, 3 inch and 4 inch. The first two are reducing elbows, so they change direction and step the line down in one fitting. The 3 inch and 4 inch are straight size on both ends.
4) Is the Nibco 807 DWV elbow a full 90-degree bend or a sweep?
The Nibco 807 is a 90 degree elbow, also called a 1/4 bend in drainage terms. It changes the direction of a DWV line by a quarter turn and has solder cups on both ends.
5) Which Nibco part number do I order for a 3 inch DWV 90 elbow?
For a 3 inch straight 90, the part number is E055550. The 4 inch is E055650, the 2 x 1-1/2 inch reducing elbow is E055450, and the 1-1/2 x 1-1/4 inch is E055350.
6) Is this Nibco DWV elbow acceptable for a commercial building, or is it residential only?
Both. The 807 is listed for commercial and residential plumbing, and workmanship and materials conform to ASME B16.23, the standard for cast copper alloy DWV fittings. That is the spec inspectors and engineers typically call out on drainage drawings.
7) Do I need a separate reducer if I'm going from 2 inch to 1-1/2 inch at a turn?
Not with the 2 x 1-1/2 inch version of the 807. That elbow takes 2 inch copper tube on one cup and 1-1/2 inch on the other, so the turn and the size change happen in a single soldered fitting. Same idea with the 1-1/2 x 1-1/4 inch.
8) What is the Nibco 807 elbow actually made of? Is it copper or brass?
It is a cast bronze fitting, ASTM B584 alloy C84400, and it is dezincification resistant. That is normal for cast DWV fittings in the larger sizes, and it solders to copper tube the same way a wrought copper fitting does.
