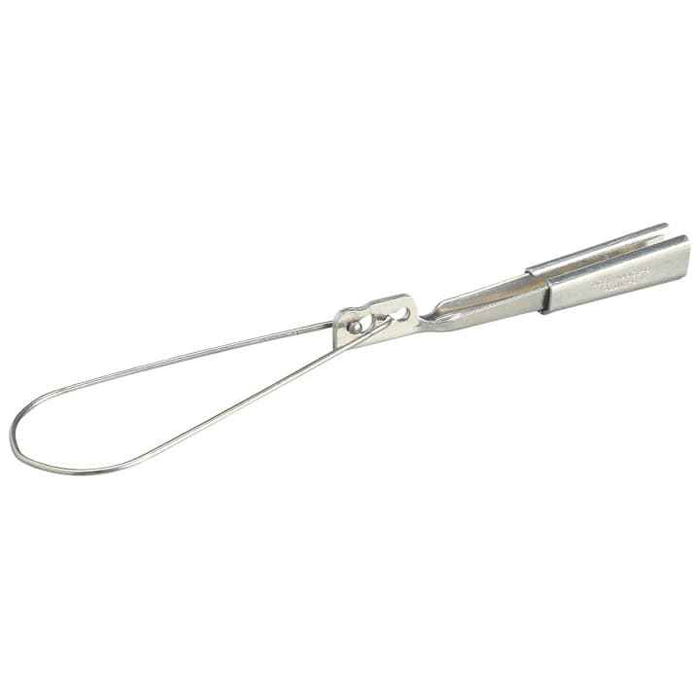

No2-No6 SERVICE WEDGE CLAMP,EA
Manufacturer Resources
Product Specs
- Connection Type:
- Tension
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Aluminum Service Wedge Clamp
- Selling Unit Of Measure:
- each
- Surface Finishing:
- Bare
- Type2:
- Cable gland connector
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Size:
- Length 12-1/2 in X Depth 2-3/8 in
- Installation Category:
- Yes
- Product Material:
- Aluminum
Blackburn W621-1 – Frequently Asked Questions
1) What conductor sizes does the Blackburn W621-1 service wedge clamp take?
The W621-1 wedge clamp is sized for No. 2 through No. 6 conductor, and it holds one conductor per clamp. If your service drop or tap is larger than No. 2 or smaller than No. 6, this is the wrong clamp for the run.
2) What voltage is the Blackburn W621-1 wedge clamp rated for?
It carries a 35 kV rating, so it is a medium voltage service clamp, not a secondary or low voltage connector. The body is bare aluminum with no insulation supplied, so any covering or taping is on the installer.
3) Can I use an aluminum wedge clamp like the W621-1 on copper conductor?
The W621-1 body is aluminum with a bare finish, which is the standard construction for aluminum service and overhead work. Aluminum bodies used on copper need to be rated for that combination, so confirm the dual-rating on your spec before mixing metals on a 35 kV service.
4) How big is the Blackburn W621-1 clamp, and will it clear a crowded pole top?
It measures 12-1/2 inches in length by 2-3/8 inches in depth, so plan on about a foot of clear run along the conductor. On tight racks or close-spaced deadends, check that dimension against your available span before you climb.
5) How does a wedge clamp hold the conductor, and do I need a torque wrench?
The W621-1 is a tension type connection. The wedge is driven and holds by mechanical tension against the conductor rather than by a torqued setscrew or a compression die, so no crimp tool or torque value is involved in the grip itself.
6) Is the Blackburn W621-1 sold individually or in a box?
Each. The W621-1 ships as a single clamp, so order one per conductor termination you are making.
7) Where is the Blackburn W621-1 wedge clamp made? I have a country of origin requirement on this job.
Country of origin on the W621-1 is Mexico. Utility and government jobs with domestic sourcing language should check that against the contract before this one goes on the submittal.
