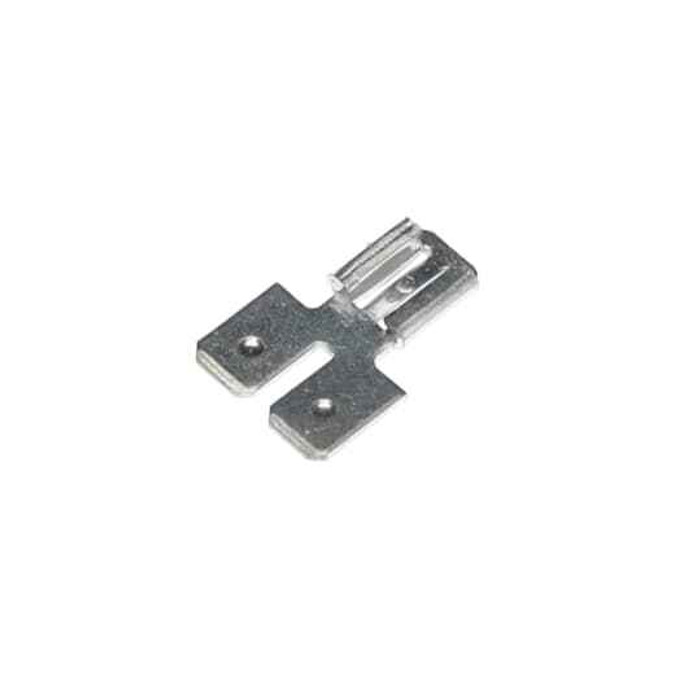

NON-INS 250 SERIES ADAPTER LEN 0.82
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Adapters
- Product Type:
- Non-Insulated Adapter
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon F250TA – Frequently Asked Questions
1) Is the Sta-Kon F250TA adapter insulated, and does it need a separate boot or sleeve?
The F250TA is a non-insulated adapter, with no insulation material on it at all. The metal is exposed, so if the terminal sits where it could be touched or could short against an adjacent terminal or an enclosure wall, you need to add a slip-on insulating sleeve or boot sized for a 250 series tab, or rely on the housing of the connector body it plugs into.
2) What size quick-disconnect tab does the Sta-Kon F250TA fit?
It is a 250 series adapter, which is the 1/4 inch wide blade size used across quick-disconnect tabs on motors, HVAC contactors, relays and switches. It will not mate with 187 (3/16 inch) or 110 (1/8 inch) tabs, so match the series on the device terminal before ordering.
3) Is the Sta-Kon F250TA brass or steel, and does that matter for a copper wire connection?
The body is brass, finished metallic with no plastic or vinyl over it. Brass is a copper alloy, so you get a copper-to-copper-alloy junction with copper conductors, which keeps galvanic mismatch out of the picture. Bare brass does oxidize, so for damp or exterior locations plan on a protective boot or a sealed enclosure.
4) How long is the Sta-Kon F250TA adapter?
0.82 inches overall. That matters when you are working inside a crowded motor terminal box or a packed control panel, since the adapter adds that length past the existing tab and the wire has to turn within whatever space is left.
5) What is a 250 series terminal adapter actually used for on an HVAC or motor repair?
A 250 series adapter bridges a male quick-disconnect tab to a different termination, so you can adapt an existing 1/4 inch tab on a motor, contactor or relay instead of replacing the device or cutting and re-terminating the harness. Common on condensing unit and blower motor swaps where the replacement unit's terminal layout does not match the existing leads.
6) Is the Sta-Kon F250TA made in the USA for a government or institutional spec job?
Country of origin is the United States, which is the line a public agency, healthcare or education procurement file usually needs for domestic-preference purchasing. The part number to reference on the submittal is Sta-Kon F250TA.
