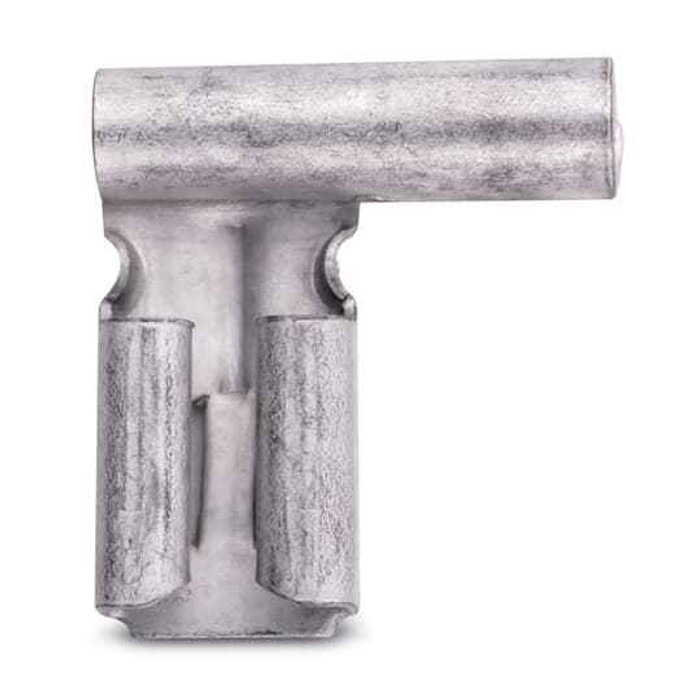

NON-INS FEM 250 DISC 16-14 LEN 0.58
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated 90 Degree Flag Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon B252G – Frequently Asked Questions
1) What wire size does the Sta-Kon B252G flag disconnect accept?
The B252G is sized for 16-14 AWG stranded or solid wire. Crimp it with a die matched to the 16-14 range; using it on 18 AWG or heavier 12 AWG will give you a loose or incomplete crimp.
2) Will the B252G fit a .250 (1/4 inch) male tab terminal?
Yes. It's a female 250 series disconnect, so it mates with a standard 1/4 inch wide quick-connect male tab, the common tab on relays, contactors, switches and motor terminals.
3) Is the Sta-Kon B252G insulated?
No insulation on it at all. It's a bare brass terminal with a metallic finish, so if the application needs the connection covered you have to add a separate insulating sleeve or boot over it. For dry, enclosed, non-crowded terminations the bare barrel is fine, but anywhere a stray tool or adjacent conductor could touch it, plan on sleeving.
4) Why use a 90 degree flag disconnect instead of a straight female quick-connect?
The flag style brings the wire in at a right angle to the tab instead of in line with it. That's what you want in a shallow junction box, a tight motor terminal pocket, or any spot where a straight disconnect would need more depth behind the tab than the enclosure gives you. If you have room to run the wire straight off the tab, a standard straight female disconnect is the simpler choice.
5) Is the B252G disconnect UL listed?
It carries UL file E66716. That's the reference to cite on a submittal or inspection sheet for the Sta-Kon B252G.
6) What is the length of the B252G female disconnect?
Overall length is 0.58 inch, which matters when you're deciding whether the terminal plus the flag bend clears the next tab or the enclosure wall in a densely populated terminal block.
7) Is the Sta-Kon B252G made in the USA for government or institutional jobs?
Country of origin is the United States, which is the line procurement officers on federal, healthcare and education contracts usually need documented. The orderable part number is B252G.
