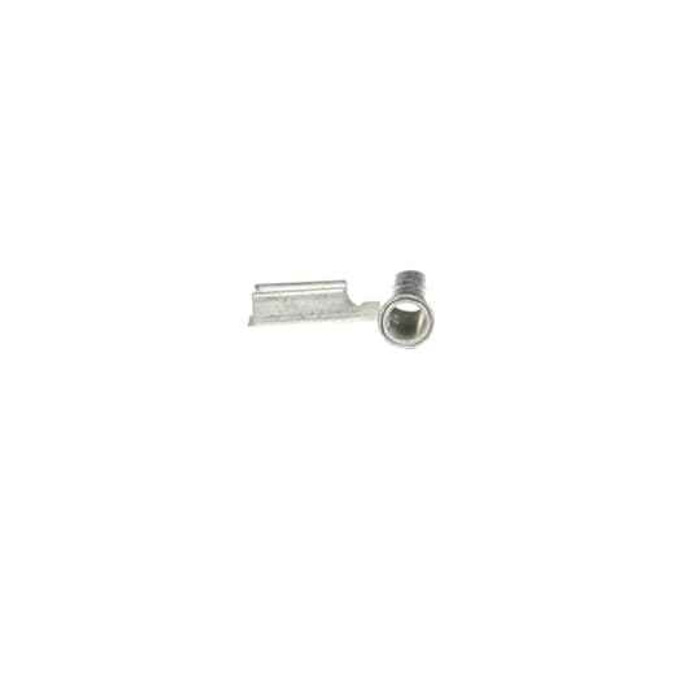

NON-INS FEM .250x.032 FLG DSC 12-10
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated 90 Degree Flag Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon C252G – Frequently Asked Questions
1) What size tab does the Sta-Kon C252G female disconnect fit?
The C252G accepts a .250 x .032 inch male tab, the standard quarter-inch blade size used on most switches, relays, and motor terminals. The receptacle is the female half, so it slips onto an existing .250 tab rather than needing one added.
2) What wire gauge range does the Sta-Kon C252G crimp onto?
It is sized for 12-10 AWG stranded wire. Smaller conductors such as 16-14 AWG will not grip properly in this barrel, so step down to a disconnect rated for that range instead of over-crimping this one.
3) Is the Sta-Kon C252G insulated?
No. It is a bare brass terminal with no insulation on the barrel, so you need to sleeve or boot it yourself if the connection could be touched or could short against adjacent metal. Non-insulated terminals are the usual pick where heat would damage nylon or vinyl, or where a separate insulator is specified.
4) Why would I pick a 90 degree flag disconnect instead of a straight one?
The C252G is a flag style terminal: the tab receptacle sits at 90 degrees to the wire barrel, so the wire exits sideways instead of straight back off the terminal. That is what you want when the terminal is in a tight enclosure, behind a switch body, or on a motor where there is no room for the wire to run straight out. For open runs with clearance behind the terminal, a straight female disconnect is the simpler choice.
5) Does the Sta-Kon C252G carry a UL listing for electrical work?
Yes, it is covered under UL file E66716, which is the detail an institutional or MRO inspector usually wants on record for terminations in a panel or control cabinet.
6) Is the Sta-Kon C252G made in the USA?
Yes, country of origin is the United States, which matters on government and institutional jobs carrying domestic sourcing requirements.
7) Can I crimp the C252G with ordinary pliers?
No. Non-insulated brass barrels need a crimper with the correct non-insulated (open barrel or butted seam) die for 12-10 AWG. Pliers deform the barrel without forming a proper mechanical and electrical bond, and a loose crimp on this gauge is a heat problem later.
