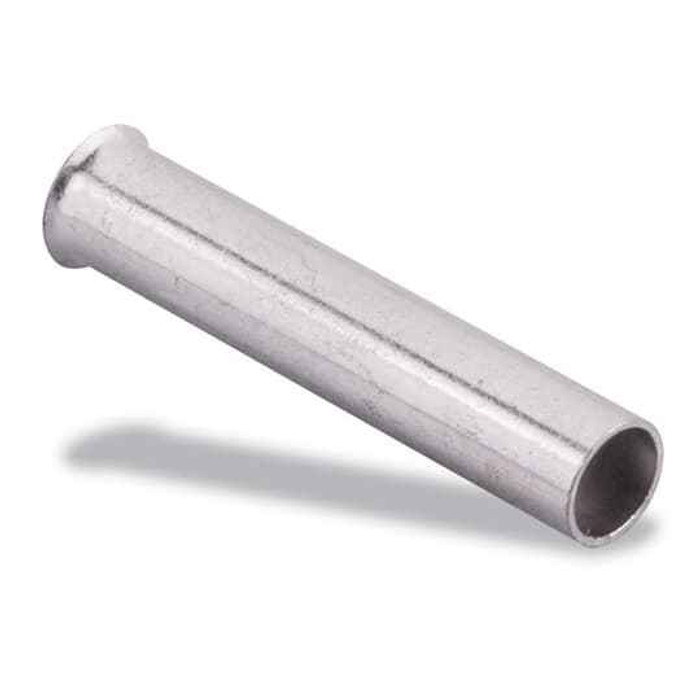

NON-INS FERRULE 1/0, 50 MM2, LG .70
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Non-Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 1/0 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon F9037 – Frequently Asked Questions
1) What wire size does the Sta-Kon F9037 ferrule take?
The F9037 ferrule is sized for 1/0 AWG conductor, which the product data also gives in metric as 50 mm2. If your conductor is stranded 1/0, this is the matching barrel; a 2 AWG or 2/0 conductor needs a different ferrule size, since a ferrule that is oversized will not crimp down reliably and an undersized one will not accept the strands.
2) Does the Sta-Kon F9037 ferrule carry a UL file number for inspection?
Yes. The F9037 is covered under UL file E489056, which is the number to hand an inspector or put on a submittal when the panel or control cabinet build has to show listed terminations.
3) Is the Sta-Kon F9037 ferrule insulated or bare?
Bare. The F9037 is a non-insulated ferrule, so there is no plastic collar on the barrel. You get the strand containment and a clean termination into a terminal block or set screw lug, but any insulation or strain relief at the entry has to come from heat shrink or the device itself. If you want a color-coded insulated collar for wire identification, you need an insulated ferrule instead.
4) What is the Sta-Kon F9037 ferrule made of, and can I use it on aluminum conductor?
The F9037 barrel is copper. That makes it a match for copper stranded conductor. Copper ferrules are not intended for aluminum conductor, which needs a connector rated for aluminum along with the appropriate inhibitor compound, so use a dedicated AL-rated terminal for aluminum feeders.
5) Why use a ferrule on 1/0 stranded wire going into a terminal block instead of just the bare strands?
A ferrule collects all the strands into one solid cylinder so the set screw bears on the barrel rather than on loose wires. On a conductor as large as 1/0, that prevents stray strands, keeps the clamp pressure even, and stops the termination from loosening as the strands settle. The F9037 is the 1/0 AWG (50 mm2) copper version for that job.
6) How do I order the right Sta-Kon ferrule for a 1/0 conductor?
Order by model F9037. That is the manufacturer part number for the non-insulated 1/0 AWG, 50 mm2 copper ferrule. Ferrules are size-specific, so if the cabinet has mixed conductor sizes you will need a separate part number for each gauge.
7) Where is the Sta-Kon F9037 ferrule manufactured?
Germany. Country of origin on the F9037 is listed as Germany (DE), which is the detail that usually matters for a submittal package or a procurement spec with origin reporting requirements.
