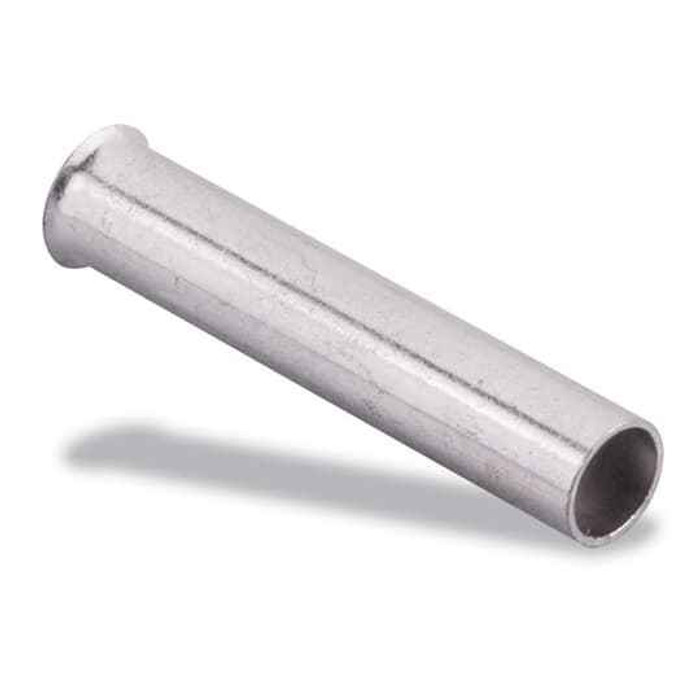

NON-INS FERRULE 8, 10 MM2, LG .591
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Non-Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 8 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon F9023 – Frequently Asked Questions
1) What wire size does the Sta-Kon F9023 ferrule crimp?
The F9023 wire ferrule is sized for 8 AWG conductor, which is the 10 mm2 metric equivalent called out in the part description. Stranded conductor is what ferrules are for: the barrel gathers the strands so they land in a terminal block or breaker lug as a solid pin instead of loose wires.
2) Is this ferrule insulated or bare?
Bare. The Sta-Kon F9023 is a non-insulated ferrule, so there is no plastic collar to color-code the size or to protect the strip point. If you need the insulated collar for strain relief and visual size identification at a crowded terminal strip, specify an insulated ferrule of the same 8 AWG size instead.
3) Is the F9023 ferrule UL recognized for panel work?
It carries UL file E489056. Inspectors on control panel and industrial machinery work routinely want the termination components covered by a UL file, and this one is.
4) Do I need a special crimper for a 10 mm2 wire ferrule?
Yes. Ferrules of this size need a four-indent or hex ferrule crimper with a 10 mm2 / 8 AWG die position. A general purpose insulated-terminal plier will not form the barrel correctly on a .591 inch, 10 mm2 sleeve, and an under-formed crimp is the usual cause of loose strands and heating at the terminal.
5) What is the Sta-Kon F9023 ferrule made of?
Copper. That gives you the conductivity and the ductility a crimp needs, the sleeve deforms around the strands and holds. Copper barrels are standard for ferrules used on copper conductor, which is what you want for panel wiring and control cabinets.
