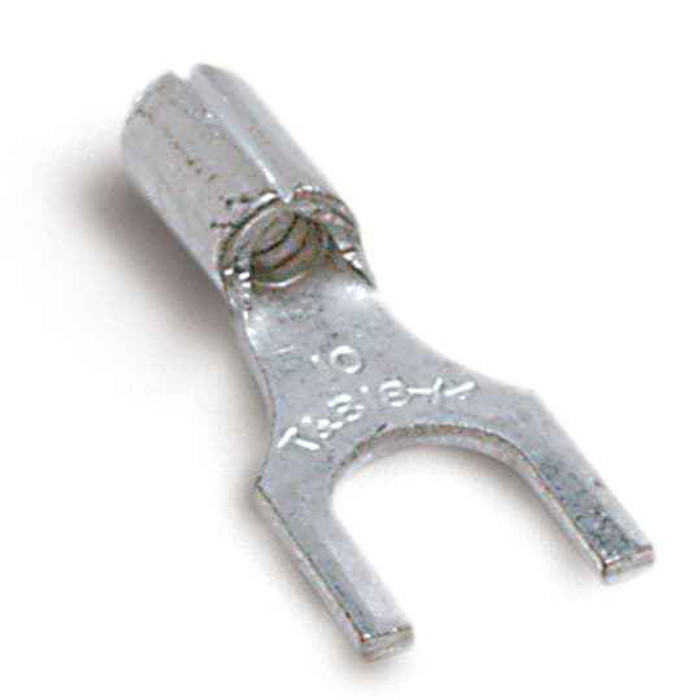

NON-INS FORK TERM 12-10 NO8, MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Fork Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon C114M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon C114M fork terminal crimp onto?
The C114M takes 12 to 10 AWG stranded copper conductor. Anything smaller than 12 AWG will not hold in the barrel, and 8 AWG won't enter it, so step to the correct barrel size for those gauges rather than over-crimping this one.
2) What size screw or stud does this fork terminal fit?
It's sized for a No. 8 screw or stud. The open fork slides under a loosened No. 8 terminal screw, which is why electricians use it on busy terminal strips instead of a ring tongue that has to come all the way off.
3) Is a non-insulated fork terminal like the Sta-Kon C114M the right choice, or should I use an insulated one?
Non-insulated is the right call when you're installing heat shrink or sleeving over the crimp yourself, when the terminal sits inside an already-enclosed strip or barrier block, or when you need to see the conductor in the barrel to verify the crimp. If the lug will sit exposed where adjacent terminals could be bridged, use an insulated fork terminal of the same 12-10 AWG, No. 8 size instead. The C114M itself is bare copper with no insulating sleeve.
4) Can I use the Sta-Kon C114M on 480V control wiring?
Yes. The terminal is rated 600 V, which covers 120V, 240V, and 480V control and power circuits.
5) Is this fork terminal UL recognized for a job that requires listed components?
The C114M carries UL file E9809. If your specification or inspector requires UL-recognized terminations, cite that file number along with the 600 V rating.
6) Will this terminal work on aluminum conductor?
No. The C114M barrel is copper and is intended for copper conductor only. Aluminum wire needs an AL-rated or AL9CU dual-rated connector with the appropriate inhibitor compound.
7) Do I need a special crimp tool for the Sta-Kon C114M?
It's a non-insulated barrel, so it needs the non-insulated (open barrel style is not used here) crimp die, not the color-coded insulated nest. On a 12-10 AWG barrel that means the die position marked for 12-10 non-insulated terminals. Using an insulated-terminal nest on a bare copper barrel gives an under-formed crimp.
8) Is the Sta-Kon C114M made in the USA for Buy American jobs?
Country of origin on the C114M is the United States, which is what federal and institutional procurement officers need on record for domestic-content requirements.
