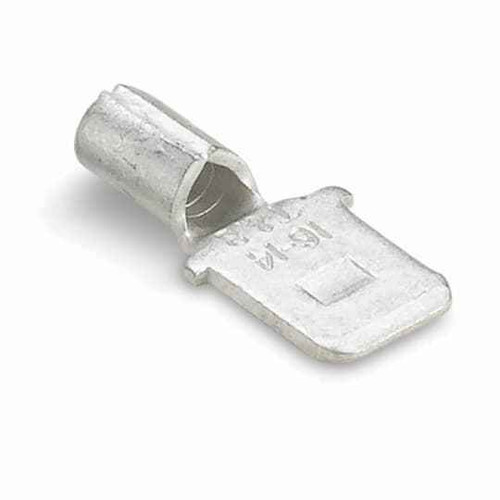

NON-INS MALE-250 TAB 20-14 LEN .87,
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated Male Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon B14-250T – Frequently Asked Questions
1) What wire gauge range does the Sta-Kon B14-250T male disconnect crimp onto?
The B14-250T takes 20-14 AWG stranded wire in a single barrel. If your conductor is 12 AWG or larger, this terminal won't crimp down on it correctly and you need a heavier barrel size.
2) Will the B14-250T mate with standard .250 female quick disconnects?
Yes. It is a male tab in the .250 size, so it pairs with any standard 1/4 inch (.250) female quick-disconnect terminal, which is the common tab size on motors, switches, relays and HVAC components.
3) Is the Sta-Kon B14-250T insulated?
No insulation at all on this one. The barrel is bare brass with a metallic finish, so if the terminal sits where it can touch a chassis, another conductor, or a grounded enclosure wall, you need to sleeve it with heat shrink or use a fully insulated male disconnect instead.
4) How long is the B14-250T male disconnect overall?
Overall length is .87 inch. That matters when you are stacking terminals in a tight wireway or behind a switch plate, since the bare tab plus barrel needs that much clear run off the end of the conductor.
5) What part number should I order for a non-insulated .250 male tab for 20-14 wire?
Order Sta-Kon B14-250T. That designation covers the non-insulated male .250 tab terminal for 20-14 AWG with an .87 inch overall length, and it is the only configuration under that number, so there is no finish or size option to specify.
6) What is the Sta-Kon B14-250T made of, and will it hold up in a damp location?
The terminal body is brass, uninsulated. Brass gives good conductivity and resists corrosion better than plain steel, but with no insulation and no sleeve there is nothing sealing the crimp, so for wet or washdown locations a nylon-insulated or heat-shrink-sealed male disconnect is the better call.
7) Is the Sta-Kon B14-250T made in the USA?
Country of origin is the United States, which is what procurement groups with domestic-content requirements on government or institutional jobs need to see documented.
