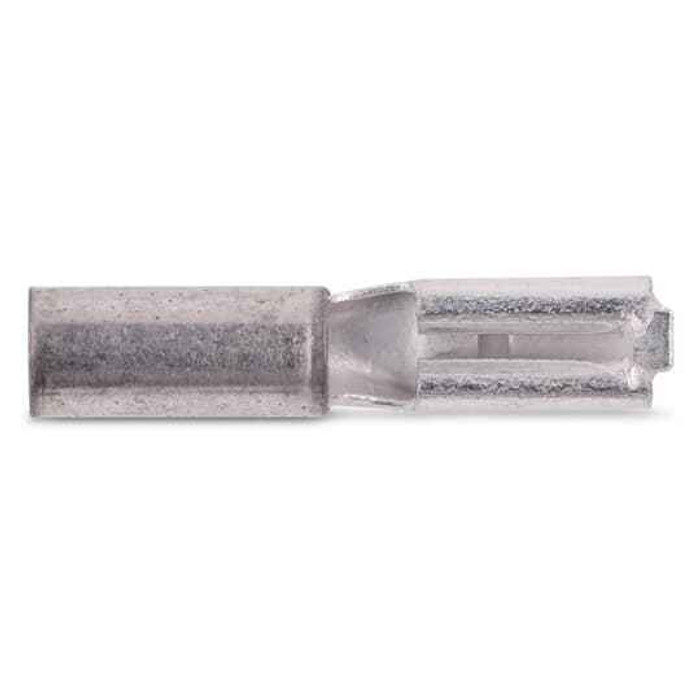

NON-INS FEMALE-110 DSC 16-14 LEN
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated Female Disconnect
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon B14-110F – Frequently Asked Questions
1) What wire size does the Sta-Kon B14-110F female disconnect crimp onto?
The B14-110F is sized for 16-14 AWG stranded wire, which is the gauge range called out in the part's description. Strip to the barrel length, crimp with a tool matched to the 16-14 range, and the terminal will hold on either 16 or 14 gauge conductor.
2) Is the Sta-Kon B14-110F a male tab or a female receptacle?
It is the female half. The B14-110F slides onto a .110 inch male tab, so you would pair it with a 110-series male disconnect or a .110 tab on a switch, relay, or appliance terminal.
3) Does this Sta-Kon disconnect come with insulation or a sleeve?
No insulation at all. The B14-110F is a bare brass terminal with no nylon or vinyl sleeve, so it reads metallic in the hand. If the connection sits where it can be touched or can contact a grounded surface, add heat shrink or a slip-on insulating sleeve, or specify a fully insulated version instead.
4) Will a .110 female disconnect fit a 1/4 inch quick-disconnect tab?
No. The B14-110F is a .110 inch tab size, the smallest of the common quick-disconnect widths. It will not seat on a .187 (3/16) or .250 (1/4) inch male tab. Measure the tab width before ordering; a .250 tab needs a 250-series female terminal in the same 16-14 wire range.
5) What is the Sta-Kon B14-110F made of, and is it suitable for the small-gauge control wiring in an appliance or HVAC control board?
Brass construction, non-insulated, built for 16-14 AWG. That combination is typical of low-voltage control and appliance work where .110 tabs are used on thermostats, relays, and small switches. Brass takes a clean crimp and carries the low current these circuits run.
6) What part number do I order for a non-insulated .110 female disconnect in 16-14 wire?
Order Sta-Kon B14-110F. That single model covers the whole offering here: non-insulated, brass, female .110, 16-14 AWG. There are no finish or size options to choose between.
7) Is the Sta-Kon B14-110F terminal made in the USA?
Yes, country of origin is the United States. That matters on government, institutional, and some utility jobs carrying domestic-content requirements on electrical components.
