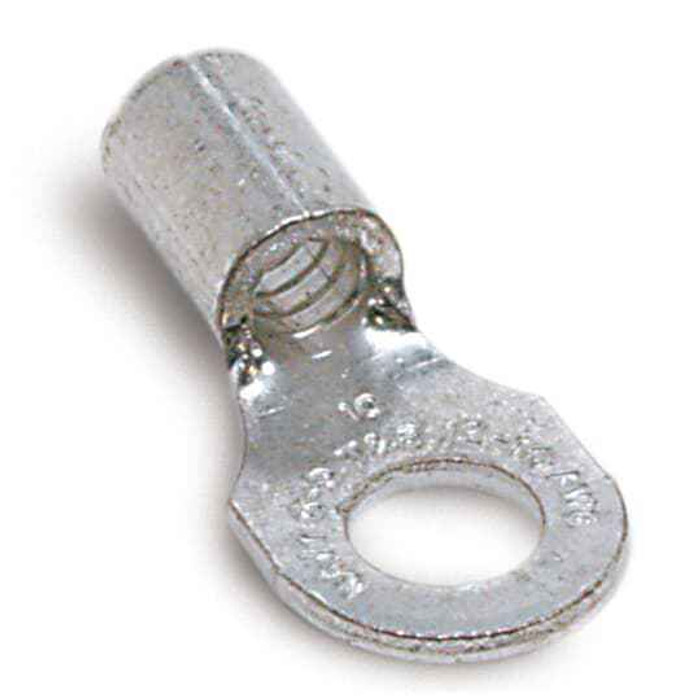

NON-INS RING TERM 18-14 5/16 MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon B72M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon B72M ring terminal take?
The B72M is built for 18-14 AWG conductors. That covers typical control, fixture and low-current branch wiring. Anything heavier than 14 AWG or finer than 18 AWG needs a different barrel size, since a crimp outside the rated range won't hold mechanically or electrically.
2) Is the Sta-Kon B72M insulated or bare?
Bare. It's a non-insulated copper ring terminal, so there's no nylon or vinyl sleeve over the barrel. If the connection sits in a crowded box or near adjacent studs, plan on heat shrink or tape over the barrel, or choose an insulated ring terminal instead.
3) Is the Sta-Kon B72M UL listed?
It carries UL file E9809. That's the detail institutional and MRO buyers usually need for panel and fixture work where listed terminations are required by the job spec.
4) What is the B72M terminal made of, and can I use it on aluminum conductors?
The body is copper, so it's a copper-to-copper termination. Use it on copper conductors in the 18-14 AWG range. Aluminum wire needs a terminal rated and marked for aluminum, which this is not.
5) Does the Sta-Kon B72M come loose or on a strip?
The B72M is the Mylar-carrier version, supplied on tape rather than loose in a bag. That's the format used with strip-fed crimping tools for production runs; for hand crimping one-offs, a loose-piece ring terminal is the easier format to work with.
6) Are Sta-Kon ring terminals made in the USA?
Country of origin on the B72M is the United States. That matters on government and institutional work with domestic-content requirements on the bill of materials.
