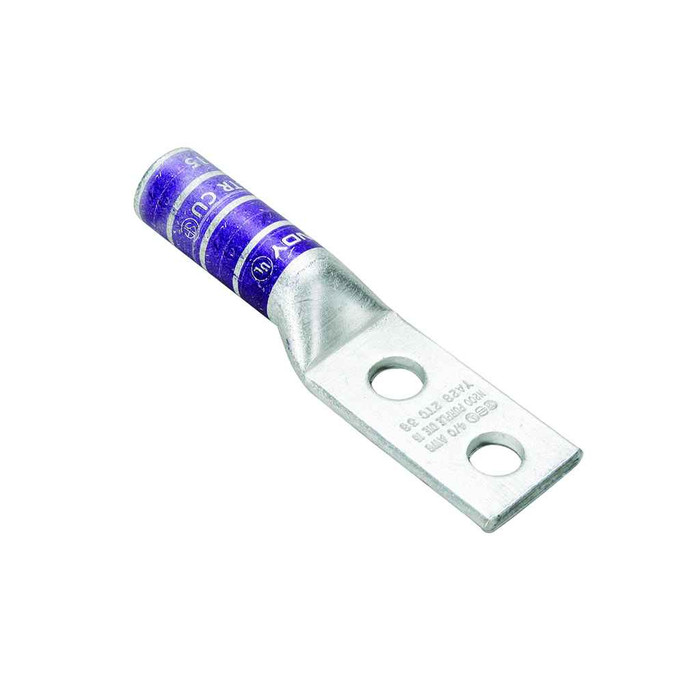

Burndy HYLUG YA252N Copper Terminal Lug 1/0 AWG Long Barrel Tin Plated

Burndy HYLUG YA252N Copper Terminal Lug 1/0 AWG Long Barrel Tin Plated

Professional Grade Electrical Connection Terminal

The Burndy HYLUG YA252N delivers reliable electrical connections for 1/0 AWG copper conductors with professional-grade construction. This long barrel terminal lug features electro-tin plating for enhanced corrosion resistance and chamfered barrel design for secure conductor insertion. CSA approved and UL listed to UL468A-468B standards, this copper terminal provides dependable performance for code conductor applications with 35 kV rating and 600V minimum voltage specification.

Professional Features & Benefits

• 1/0 AWG Copper Conductor Compatibility: Precisely engineered for secure connection of 1/0 AWG copper stranded conductors ensuring optimal electrical contact.
• Long Barrel Chamfered Design: Extended barrel length with chamfered entry provides enhanced conductor grip and simplified installation process.
• Electro-Tin Plated Finish: Tin plating delivers superior corrosion resistance and maintains low contact resistance over extended service life.
• 35 kV Voltage Rating: High voltage capability supports demanding electrical applications with reliable insulation performance.
• Dual Certification Compliance: CSA approved and UL listed to UL468A-468B standards ensuring code compliance and professional installation requirements.
• Precision Copper Construction: High-conductivity copper material provides excellent electrical performance and mechanical strength for long-term reliability.
• Standard Straight Tongue Configuration: Two-hole mounting design with 0.52 inch bolt holes accommodates standard connection hardware and installation practices.

Technical Specifications

• Application: For Code Conductor
• Certification Csa Approved: Yes
• Certification Culus: No
• Certification Etl: No
• Certification Ul Recognized: No
• Color Code: Pink
• Conductor Copper Dlo Size Range: N/A
• Conductor Copper Str Navy Size: 100 (61) Navy
• Conductor Copper Str Size: Jan-00
• Conductor Material: Copper
• Connector Type: Terminal
• Die Index: 12
• Dimension B Length Fraction: 1-3/8 in
• Dimension B Length Inch: 1.38 in
• Dimension Bolt Hole Size Inch: 0.52 in
• Dimension Hole Size Inch: 0.56 in
• Dimension Hole Size Mm: 14 mm
• Dimension L Length Overall Mm: 122 mm
• Dimension Length Overall Inch: 4.81 in
• Dimension N Inch: 0.63 in
• Dimension Outside Diameter Inch: 0.51 in
• Dimension Pad Width Inch: 0.83 in
• Dimension Strip Length Inch: 1/7/16
• Dimension Stud Size Inch: 2-Jan
• Dimension Z Inch: 0.64 in
• Feature Barrel Style: Chamfered
• Feature Barrel Type: Long
• Industry Standard S : UL468A-468B
• Minimum Pack Quantity: 10
• Physical Attribute Number Of Holes: 2
• Physical Attribute Tongue Angle: Straight
• Physical Attribute Tongue Type: Standard
• Plated: Y
• Plating Type: Electro-Tin plated
• Product Material: Copper
• Product Type: Long Barrel, Tin Plated
• Rating Kva: 35 kV
• Rating Minimum Voltage: 600
• Standards Industry Standards Met: UL468A-468B
• Standards Rohs Compliance Status: CM
• Sub Brand: HYLUG
• Trade Name: HYLUG�
• Ul Listed: Yes
• Upc 12 Digit: 7.81811E+12
• Voltage Maximum: 35000

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Electrical Panels and Switchgear
• Commercial Building Electrical Systems
• Power Distribution Equipment
• Motor Control Centers
• Electrical Service Entrances
• High Voltage Electrical Connections
• Code-Compliant Electrical Installations

Why Choose Burndy Quality?

Burndy HYLUG terminal lugs deliver proven reliability with CSA approval and UL listing to UL468A-468B standards. The precision copper construction with electro-tin plating ensures long-term performance and corrosion resistance, while the chamfered long barrel design provides secure conductor connections for professional electrical installations.
