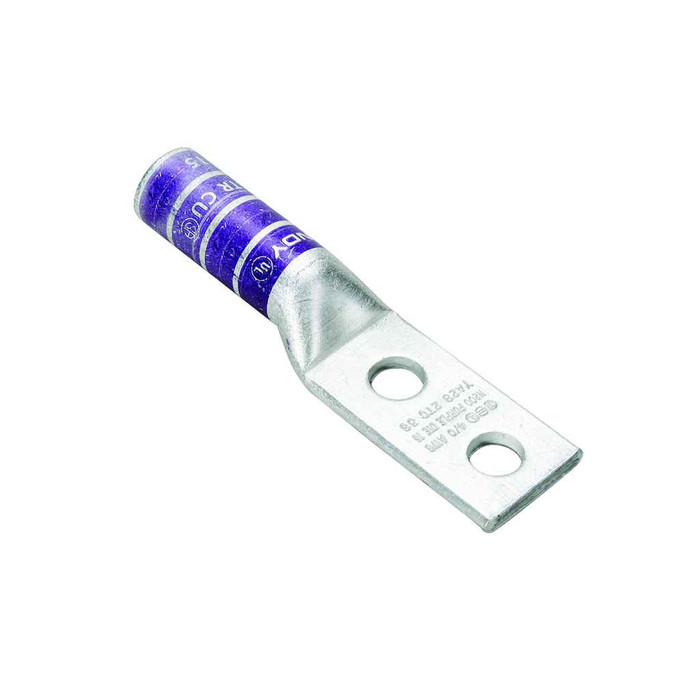

Burndy HYLUG 2 AWG Copper Terminal Lug with Tin Plating and Long Barrel Design

Burndy HYLUG 2 AWG Copper Terminal Lug with Tin Plating and Long Barrel Design

Professional Non-Insulated Terminal Connection Solution

The Burndy HYLUG 2 AWG copper terminal lug delivers reliable electrical connections with tin plating for enhanced corrosion resistance. This long barrel design terminal features chamfered construction and straight tongue configuration, rated for 35 kV maximum voltage and 600V minimum voltage applications. CSA approved and UL listed to UL468A-468B standards, this copper terminal lug provides professional-grade performance for code conductor applications.

Professional Features & Benefits

• 2 AWG Copper Construction: Provides excellent conductivity and durability for reliable electrical connections in demanding applications.
• Tin Electro Plating: Enhances corrosion resistance and ensures long-term connection integrity in various environmental conditions.
• Long Barrel Chamfered Design: Facilitates easier conductor insertion and crimping while providing secure mechanical connection.
• 35 kV Maximum Voltage Rating: Supports high-voltage applications with reliable insulation and safety performance.
• CSA Approved & UL Listed: Meets UL468A-468B industry standards ensuring compliance with electrical codes and safety requirements.
• Straight Tongue Configuration: Standard tongue design with 2 holes provides versatile mounting options for various connection requirements.

Technical Specifications

• Application: For Code Conductor
• Certification Csa Approved: Yes
• Certification Culus: No
• Certification Etl: No
• Certification Ul Recognized: No
• Color Code: Brown
• Conductor Copper Str Navy Size: 60 (37) Navy
• Conductor Copper Str Size: 2 AWG
• Conductor Material: Copper
• Connector Type: Terminal
• Die Index: 10
• Dimension B Length Inch: 1.25 in
• Dimension Bolt Hole Size Inch: 0.52 in
• Dimension Bolt Size Fraction: 2-Jan
• Dimension D Inch: 3.02 in
• Dimension Hole Size Inch: 0.56 in
• Dimension Hole Size Mm: 14 mm
• Dimension L Length Overall Mm: 118 mm
• Dimension Length Overall Inch: 4.64 in
• Dimension N Inch: 0.63 in
• Dimension Outside Diameter Inch: 0.42 in
• Dimension Pad Width Inch: 0.83 in
• Dimension Strip Length Inch: 1/5/16
• Dimension Stud Size Inch: 2-Jan
• Dimension Z Inch: 0.64 in
• Feature Barrel Style: Chamfered
• Feature Barrel Type: Long
• Industry Standard S : UL468A-468B
• Minimum Pack Quantity: 1
• Physical Attribute Number Of Holes: 2
• Physical Attribute Tongue Angle: Straight
• Physical Attribute Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Product Material: Copper
• Product Type: Long Barrel, Tin Plated
• Rating Kva: 35 kV
• Rating Minimum Voltage: 600
• Standards Industry Standards Met: UL468A-468B
• Standards Rohs Compliance Status: CM
• Sub Brand: HYLUG
• Temperature Rating: 194
• Trade Name: HYLUG�
• Ul Listed: Yes
• Upc 12 Digit: 7.81811E+12
• Voltage Maximum: 35000

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Electrical Panels and Switchgear
• Commercial Building Electrical Systems
• Power Distribution Equipment
• Motor Control Centers
• Electrical Substations
• High-Voltage Electrical Connections
• Code-Compliant Electrical Installations

Why Choose Burndy Quality?

Burndy HYLUG terminal lugs provide proven reliability with CSA approval and UL listing to UL468A-468B standards. The tin electro plating and copper construction ensure long-term performance and corrosion resistance, while the temperature rating of 194�F supports demanding electrical applications with professional-grade durability.
