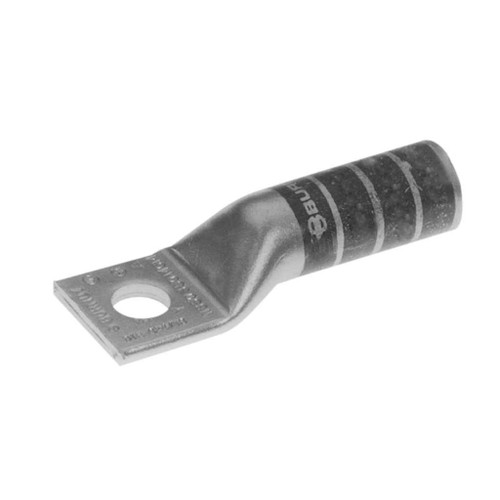

Burndy Copper Terminal Lug, Long Barrel, Tin Plated
The Burndy HYLUG copper terminal lug delivers reliable electrical connections for copper conductor applications in professional installations. Built from solid copper with a tin electro-plated finish, this long barrel, chamfered-design terminal is sized for 1 AWG stranded copper conductors and is rated 600V minimum with a 35 kV voltage capability and a 194°F temperature rating. UL Listed and CSA Approved to UL468A-468B standards, it provides dependable, code-compliant performance for demanding electrical work.
Key Features
- Copper Construction: Solid copper body delivers excellent electrical conductivity and mechanical strength for demanding connections.
- Tin Electro-Plated Finish: Provides superior corrosion resistance and enhanced long-term conductivity in diverse environments.
- Long Barrel, Chamfered Design: Facilitates easier conductor insertion while maximizing contact area for a secure mechanical and electrical connection.
- 1 AWG Copper Conductor Capacity: Precisely sized for 1 AWG stranded copper conductors, ensuring optimal contact and current-carrying capability.
- 600V / 35 kV Voltage Rating: Engineered for high-voltage applications with robust insulation coordination and safety margins.
- 194°F Temperature Rating: Maintains connection integrity and performance in elevated-temperature applications.
- UL468A-468B Listed & CSA Approved: Meets recognized industry standards for compliant, professional installation.
Certifications & Compliance
- UL Listed
- CSA Approved
- UL468A-468B Industry Standard
Technical Specifications
- Certification Csa Approved: Yes
- Certification Etl: No
- Rating Minimum Voltage: 600
- Plated: Y
- Product Type: Cable Lug
- Certification Culus: No
- Ul Listed: Yes
- Standards Rohs Compliance Status: CM
- Certification Ul Recognized: No
- Trade Name: HYLUG™
- Product Group: Wire Connectors
Typical Applications
- Industrial Control Panels
- Commercial Electrical Distribution
- Power Generation Equipment
- Motor Control Centers
- Switchgear Assemblies
- Electrical Substations
Why Burndy?
Burndy HYLUG terminal lugs bring copper construction, a tin electro-plated finish, and a long barrel chamfered design together for secure, code-compliant electrical connections. With UL Listing and CSA Approval to UL468A-468B standards, plus a 600V / 35 kV voltage rating and 194°F temperature rating, these terminals are built for reliable performance in professional electrical installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Certification - CSA Approved:
- Yes
- Certification - ETL:
- No
- Rating - Minimum Voltage:
- 600
- Physical Attribute - Tongue Angle:
- Straight
- Rating - KVA:
- 35 kV
- Voltage - Maximum:
- 35000
- Connector Type:
- Terminal
- Industry Standard(s):
- UL468A-468B
- Feature - Barrel Type:
- Long
- Plated:
- Y
- Department:
- Electrical
- Product Type:
- Compression Lug
- Standards - Industry Standards Met:
- UL468A-468B
- Feature - Barrel Style:
- Chamfered
- Sub Brand:
- HYLUG
- Certification - cULus:
- No
- UL Listed:
- Yes
- Standards - RoHS Compliance Status:
- CM
- Conductor Material:
- Copper
- Certification - UL Recognized:
- No
- Trade Name:
- HYLUG™
- Product Group:
- Wire Connectors & Terminals
- Product Finish:
- Tin-Plated
- Voltage Rating:
- 600V
- Listing:
- UL Listed
- Standards:
- UL468A-468B
- Product Subgroup:
- Lugs & Terminals
- Product Material:
- Copper
Burndy YA6C – Frequently Asked Questions
1) Are Burndy HYLUG terminal lugs UL Listed and CSA approved for an inspected job?
UL Listed and CSA Approved, to the UL468A-468B standard. That is the listing an inspector looks for on a compression connector, and it is a full Listing rather than UL Recognized (component) status, so the lug stands on its own in the installation.
2) Is this a compression lug or a set screw / mechanical lug?
It's a compression lug. The barrel is crimped onto the conductor with a hydraulic or battery crimp tool and the correct die, so there is no set screw to torque and no re-torque at inspection. If you need a connection you can make with a hex key and take apart later, a mechanical set screw lug is the part you want instead.
3) What does the long barrel on a Burndy HYLUG lug get me over a standard barrel?
A long barrel takes two crimps instead of one, which spreads the mechanical pull-out load and increases the contact area between the barrel and the strands. That matters on vibrating gear, motor control centers and generator terminations where a single-crimp short barrel is working harder. The barrel mouth is also chamfered, which lets a fully stranded conductor start into the barrel without birdcaging the outer strands.
4) What tool do I need to crimp a Burndy HYLUG YA terminal lug?
A hydraulic or battery-powered compression tool with the die that matches the lug's die index, which is stamped on the barrel. Burndy dies are indexed per conductor size, so the die for the YA6C at 6 AWG is not the die for the YA322N at 400 kcmil. Get the tool and dies sorted before the conductors are cut, and crimp the long barrel twice.
5) Will a tin-plated copper lug hold up in a damp or outdoor enclosure?
Tin electro-plating over the copper body is there for exactly that: it slows oxidation on the pad and barrel so the contact resistance stays stable in humid, coastal or washdown environments. Bare copper lugs will grey over and need cleaning before you bolt them down. The plating also keeps the pad from galling against an aluminum or plated bus pad.
6) Where would I actually use a Burndy HYLUG copper terminal lug?
Panel and feeder terminations where a copper conductor lands on a bolted pad: industrial control panels, motor control centers, switchgear assemblies, commercial distribution gear, generator and power-generation equipment, and substation work. Anywhere the conductor is copper, the pad is bolted, and you want a crimped connection instead of a set screw.
7) Are Burndy HYLUG copper lugs RoHS compliant?
The HYLUG copper terminal lug carries a RoHS status of CM, meaning compliant with exemption. The tin electro-plated copper construction is what puts it there. That is usually enough for institutional and government specs that call out RoHS on electrical components.
