Burndy Non-insulated; Tin Plated YA362N

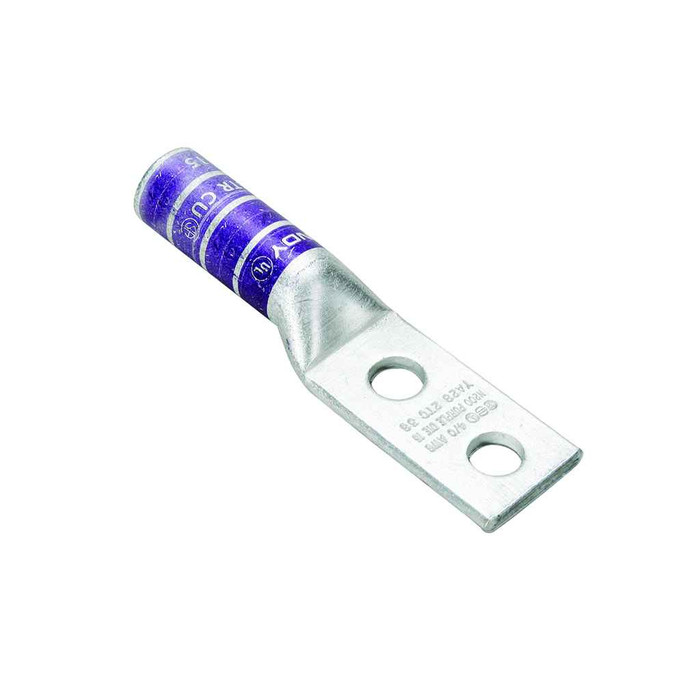

Burndy HYLUG Crimped Cable Lug 600 kcmil Copper Tin Plated Long Barrel 35kV Two Hole

(No reviews yet) Write a Review

Model: YA362N
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$89.86
$37.41
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy HYLUG Crimped Cable Lug 600 kcmil Copper Tin Plated Long Barrel 35kV Two Hole

Professional High-Voltage Electrical Terminal for Power Distribution

The Burndy HYLUG Crimped Cable Lug delivers superior electrical connection performance for high-voltage power distribution applications. This 600 kcmil 35kV crimped cable lug provides exceptional conductivity and reliability designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.

Professional Features & Benefits

High-Voltage Electrical Performance

  • 600 kcmil Copper Conductor Capacity - Accommodates large copper stranded conductors for high-amperage electrical connections with superior current-carrying capability
  • 35kV Voltage Rating - Engineered for high-voltage applications including utility distribution, industrial power systems, and commercial electrical installations
  • 600V Minimum Rating - Versatile voltage range capability from standard commercial to high-voltage utility applications
  • Tin Plated Copper Construction - Enhanced corrosion resistance and improved electrical conductivity for long-term connection reliability

Professional Installation Design

  • Long Barrel Chamfered Design - Extended barrel length with chamfered entry for easier conductor insertion and optimal crimp compression
  • Two Hole Configuration - Dual mounting holes provide secure mechanical connection and enhanced vibration resistance
  • Die Index 22;472 - Specified crimping die requirements ensure proper installation and optimal electrical performance

Quality Construction

  • UL Listed Compliance - Meets UL468A-468B standards for electrical safety and performance in professional installations
  • CSA Approved - Canadian Standards Association approval for North American electrical applications

Technical Specifications

Conductor Size: 600 kcmil copper stranded, Material: Copper with tin plating, Voltage Rating: 35kV maximum/600V minimum, Physical Configuration: Two hole straight tongue, Barrel Type: Long barrel with chamfered entry, Overall Length: 6.59 inches, Outside Diameter: 1.19 inches, Bolt Hole Size: 0.52 inches, Pad Width: 1.74 inches, Standards: UL468A-468B, UL Listed: Yes, CSA Approved: Yes, Color Code: Green, Die Index: 22;472, Application: For code conductor, RoHS Status: CM compliant

Installation & Usage

  1. Strip conductor insulation to specified length ensuring clean copper surface
  2. Insert conductor fully into long barrel ensuring complete seating against barrel stop
  3. Position crimping tool with specified die index 22;472 for proper compression
  4. Apply crimp compression following manufacturer torque specifications for secure connection
  5. Inspect crimped connection for proper compression and conductor retention
  6. Mount lug using two holes with appropriate hardware for mechanical connection

Professional Applications

Ideal for:

  • Utility Power Distribution - High-voltage transmission and distribution systems requiring 35kV rated connections
  • Industrial Electrical Systems - Heavy-duty manufacturing and processing facility power distribution
  • Commercial Power Distribution - Large commercial building electrical systems and power panels
  • Transformer Connections - Primary and secondary transformer terminations in utility and industrial applications
  • Switchgear Installations - High-voltage switchgear and electrical panel connections
  • Motor Control Centers - Large motor terminations and control system connections
  • Electrical Panel Connections - Main service panels and distribution board terminations
  • Code Conductor Applications - Electrical installations requiring compliance with electrical code standards

Tin Plated Copper Advantage

The tin plating on this copper lug provides superior corrosion resistance compared to bare copper, preventing oxidation that can increase connection resistance over time. This plating ensures consistent electrical performance in diverse environmental conditions while maintaining the excellent conductivity properties of copper construction for reliable high-voltage electrical connections.

Why Choose Burndy Quality?

Burndy's HYLUG series represents decades of electrical connection innovation and manufacturing excellence. With UL listing and CSA approval, these crimped cable lugs meet the highest safety standards demanded by professional electricians, electrical contractors, and utility professionals. The precision engineering and quality construction ensure dependable performance in critical high-voltage applications, backed by Burndy's reputation as America's trusted leader in electrical connection technology.



BUR-YA362N - spec sheet

Manufacturer Resources

Product Specs

Application:
For Code Conductor
Certification Csa Approved:
Yes
Certification Culus:
No
Certification Etl:
No
Certification Ul Recognized:
No
Color Code:
Green
Conductor Copper Dlo Size Range:
N/A
Conductor Copper Str Size:
600 kcmil
Conductor Material:
Copper
Connector Type:
Terminal
Die Index:
22;472
Dimension B Length Fraction:
2-11/16 in
Dimension B Length Inch:
2.69 in
Dimension Bolt Hole Size Inch:
0.52 in
Dimension Bolt Size Fraction:
2-Jan
Dimension Hole Size Inch:
0.56 in
Dimension Hole Size Mm:
14 mm
Dimension L Length Overall Mm:
167 mm
Dimension Length Overall Inch:
6.59 in
Dimension N Inch:
0.63 in
Dimension Outside Diameter Inch:
1.19 in
Dimension Pad Width Inch:
1.74 in
Dimension Strip Length Inch:
2/3/2004
Dimension Stud Size Inch:
2-Jan
Dimension Z Inch:
0.64 in
Feature Barrel Style:
Chamfered
Feature Barrel Type:
Long
Industry Standard S :
UL468A-468B
Material:
Copper
Minimum Pack Quantity:
1
Physical Attribute Number Of Holes:
2
Physical Attribute Tongue Angle:
Straight
Physical Attribute Tongue Type:
Standard
Plated:
Y
Plating Type:
Tin
Rating Kva:
35 kV
Rating Minimum Voltage:
600
Standards Industry Standards Met:
UL468A-468B
Standards Rohs Compliance Status:
CM
Sub Brand:
HYLUG
Trade Name:
HYLUG™
Ul Listed:
Yes
Voltage Maximum:
35000
Product Type:
Crimped Cable Lug
Product Group:
Wire Connectors & Termination Accessories
Department:
Electrical
Product Subgroup:
Crimped Cable Lug
Product Details:
Long Barrel, Tin Plated
