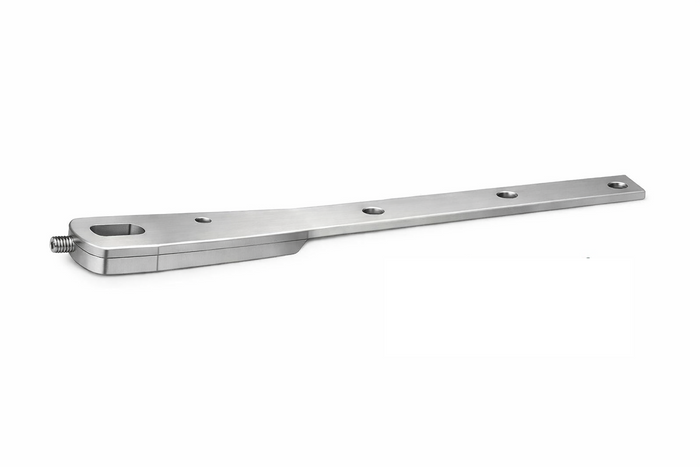

Norton Rixson 28 Series Floor Closer Arm Pack - Heavy-Duty Commercial Grade

Norton Rixson 28 Series Floor Closer Arm Pack - Heavy-Duty Commercial Grade

(No reviews yet) Write a Review

Model: 282554

In Stock (leaves warehouse same day if ordered before 3pm ET)

$259.55
$193.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 28 Series Floor Closer Arm Pack - Heavy-Duty Commercial Grade

Precision-Engineered Component for Professional Door Control Systems

The Norton Rixson 28 Series Floor Closer Arm Pack delivers precision-engineered performance for heavy-duty commercial and institutional door applications. This essential component supports doors up to 300 lb (136 kg) and widths up to 4'0" (1219 mm), constructed from high-strength cast and machined steel or stainless steel components. ANSI/BHMA A156.4 Grade 1 certified for demanding commercial environments, this arm pack ensures reliable connection between door and closer body for balanced operation and superior durability.

Professional Features & Benefits

  • Heavy-Duty Door Capacity: Supports doors up to 300 lb (136 kg) and widths up to 4'0" (1219 mm) for versatile commercial applications.
  • Premium Construction Materials: Heavy-duty cast and machined steel or stainless steel components provide exceptional durability and corrosion resistance for interior and exterior use.
  • 28 Series System Compatibility: Designed specifically to integrate with Norton Rixson 28 Series floor closers for precise performance and seamless operation.
  • ANSI/BHMA Grade 1 Certification: Meets ANSI/BHMA A156.4 Grade 1 standards for high-traffic commercial and institutional applications.
  • Concealed Installation Design: Floor-mounted configuration maintains clean architectural appearance while providing accessibility for service and adjustment.
  • Multiple Finish Options: Available in 626 (Satin Chrome), 630 (Satin Stainless), 613 (Oil-Rubbed Bronze), and other architectural finishes to match design requirements.
  • Field Serviceable Design: Simplified installation and maintenance procedures reduce downtime and long-term service requirements.
  • Manufacturer Warranty: 2 Year Limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.4, Grade 1
  • Commercial/Residential: Commercial
  • Cover Type: Cast iron cement case
  • Department: Door Hardware
  • Door Swing: Single Acting
  • Duty Level: Heavy Duty
  • Grade: Grade 1
  • Hold Open Feature: No
  • Product Group: Door Controls
  • Product Subgroup: Door Closers - Floor
  • Product Type: Floor Door Closers
  • Series: SEC27 Series
  • Subcategory: Specialty Closers
  • Traffic Rating: High Traffic
  • Warranty: 2 Year Limited

Installation & Operation

This arm pack component is designed for use with compatible Norton Rixson 28 Series floor closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • High-Traffic Retail Establishments

Why Choose Norton Rixson Quality?

Norton Rixson floor closer components deliver professional-grade reliability with heavy-duty cast and machined steel construction rated for doors up to 300 lb capacity. ANSI/BHMA A156.4 Grade 1 certification ensures compliance with demanding commercial standards, while the 2 Year Limited warranty provides added protection. Engineered for high-traffic commercial applications where dependable door control performance is essential.

Manufacturer Resources

Product Specs

Subcategory:
Floor Closers
Series:
SEC27 Series
Grade:
Grade 1
Warranty:
2 Year Limited
Door Swing:
Single Acting
Traffic Rating:
High Traffic
ANSI/BHMA:
ANSI/BHMA A156.4, Grade 1
Product Group:
Door Controls
Product Subgroup:
Door Closers - Floor
Product Type:
Floor Door Closers
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Cover Type:
Cast iron cement case
Hold Open Feature:
No
Department:
Door Hardware
Product Category:
Door Controls

Norton Rixson 282554 – Frequently Asked Questions

1) Is the Norton Rixson 28 Series arm pack a complete floor closer or just a part?
It's a component, not a closer. The 28 Series arm pack is the arm hardware that ties the door to the closer body, and it's made to go with Norton Rixson 28 Series floor closers. If you need the closing mechanism itself, you're buying the closer body separately. The arm pack alone won't control a door.
2) What door size and weight will the Norton Rixson 28 Series arm pack handle?
Doors up to 300 lb (136 kg) and up to 4'0" (1219 mm) wide. That covers most heavy commercial entrance leaves, including glass and hollow metal. If your leaf is wider than 4 feet or heavier than 300 pounds, this arm pack is not the right one.
3) Will this work on a double-acting center-hung door?
No. The 28 Series arm pack is set up for single acting operation, so the door swings one direction only. A double acting opening that swings both ways needs different arm hardware.
4) Is this rated for a high-traffic entrance like a school or hospital lobby?
It is. The 28 Series floor closer arm pack is certified to ANSI/BHMA A156.4 Grade 1, classed Heavy Duty and High Traffic, and it's a commercial-only product. Grade 1 is the top tier under A156.4, which is what most institutional specs call for on main entrances.
5) Can a Dorma BTS80 or BTS75V floor closer be used instead of the Norton Rixson 28 Series arm pack?
No - those are not interchangeable items. The Norton Rixson 28 Series Arm Pack is the bottom arm hardware that connects the door to a 28 Series floor closer, not a closer itself. The Dorma BTS80 and the BTS75V are both supplied as closer bodies only, so buying either one gets you the mechanism in the floor, not the arm that ties the door to it. If the 28 Series closer body in the floor is sound and the bottom arm is worn or bent, the arm pack is the part to order; swapping to a Dorma body would mean replacing the cement case and the door-side hardware as well.
6) Which piece of the arm pack am I actually getting?
The arm pack is offered as the Bottom Arm model. That's the bottom-of-door arm that connects the leaf down to the floor closer spindle. Top pivots and intermediate pivots are separate items.
7) Does this arm pack hold the door open?
No hold open on the 28 Series arm pack. The door closes every time it's released. If your opening needs a hold-open position, that function lives in the closer body selection, not in the arm.
8) Can I use the 28 Series arm pack on an exterior door?
Yes. The components are heavy-duty cast and machined steel or stainless steel, which is what lets it be used on interior and exterior openings. Spec the stainless components where weather exposure or washdown is a concern.
9) Do I need a cement case with this, and what type is it?
The 28 Series floor closer installation uses a cast iron cement case set into the slab. The case houses the closer body; the arm pack is the above-floor linkage. On a new pour or a retrofit into concrete, the case has to be in place and level before the closer and arm go in.
10) We need a non hold open floor closer setup - how does the 28 Series arm pack compare to the Dorma BTS75V on that?
Both suit a non hold open opening. The Norton Rixson 28 Series arm pack is part of a single acting floor closer system with no hold open feature, and the Dorma BTS75V is specified as NHO, non hold open. The practical difference is scope: the BTS75V is the closer body with cement case, while the arm pack is the door-side bottom arm hardware for a 28 Series closer. If a hold open function is required at the opening, neither of these is the right selection.
11) Is the Dorma BTS80 rated the same as the Norton Rixson 28 Series arm pack for a high traffic entrance?
Both are heavy duty. The Norton Rixson 28 Series arm pack is rated heavy duty and high traffic with ANSI/BHMA A156.4 Grade 1 certification for commercial use, and the Dorma BTS80 is also classified heavy duty. One distinction that matters on a fire rated opening: the BTS80 is listed as not fire rated. Check the opening's fire requirements before specifying either.
12) What finishes does the Norton Rixson 28 Series arm pack come in so it matches my other door hardware?
Architectural finishes include 626 satin chrome, 630 satin stainless, and 613 oil-rubbed bronze. For a building standardizing on one look, 626 and 630 are the usual commercial pairings with aluminum and stainless entrances.
