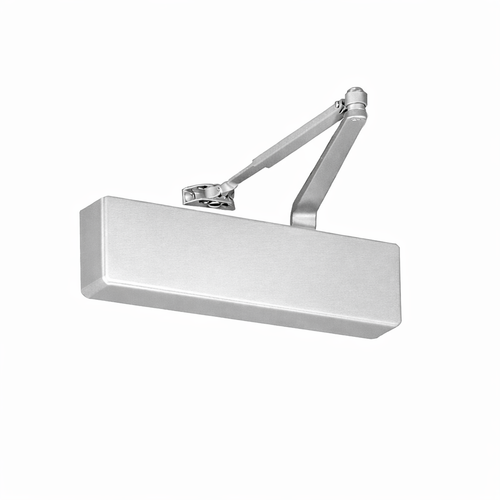

Norton Rixson 7500 Series Surface Door Closer Tri Pack with Regular Arm - Heavy Duty Commercial Grade

Norton Rixson 7500 Series Surface Door Closer Tri Pack with Regular Arm - Heavy Duty Commercial Grade

(No reviews yet) Write a Review

Model: 7500-600-689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$880.52
$448.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 7500 Series Surface Door Closer Tri Pack with Regular Arm - Heavy Duty Commercial Grade

Professional Multi-Door Closer Solution for Commercial Applications

The Norton Rixson 7500 Series Surface Door Closer delivers heavy-duty performance for commercial and institutional applications. This tri pack configuration includes three complete surface door closers with regular arms, constructed from high-strength, corrosion-resistant materials for long-term durability. ANSI/BHMA A156.4 Grade 1 certified with adjustable closing speed, backcheck, and latching for doors typically up to 4'0" width.

Professional Features & Benefits

  • Tri Pack Configuration: Includes three complete surface door closers for efficient multi-door project installation and cost savings.
  • Heavy-Duty Construction: High-strength, corrosion-resistant metal construction provides exceptional durability for demanding commercial environments.
  • Grade 1 Performance: ANSI/BHMA A156.4 Grade 1 certification ensures superior reliability and performance standards for high-traffic applications.
  • Adjustable Operation: Customizable closing speed, backcheck, and latching settings accommodate different door sizes and weights for optimal control.
  • Regular Arm Design: Standard regular arm configuration provides consistent door alignment and smooth closing operation for most commercial installations.
  • High Traffic Rating: Engineered for high-traffic commercial and institutional environments with minimal maintenance requirements.
  • 30-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence in product reliability.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.4, Grade 1
  • Commercial/Residential: Commercial
  • Cover Type: Metal
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hold Open Feature: No
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Door Closers - Surface Mounted
  • Product Type: Surface Mounted Door Closers
  • Spring Type: Adjustable Size
  • Subcategory: Surface Closers
  • Traffic Rating: High Traffic
  • Warranty: 30 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson 7500 Series door closers deliver professional-grade reliability with high-strength, corrosion-resistant construction rated for heavy-duty commercial applications. ANSI/BHMA A156.4 Grade 1 certification and 30-year limited warranty demonstrate the manufacturer's commitment to superior performance. Engineered for demanding high-traffic environments where dependable door control and long-term durability are essential.

Manufacturer Resources

Product Specs

Spring Type:
Adjustable Size
Traffic Rating:
High Traffic
Warranty:
30 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.4, Grade 1
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Subcategory:
Surface Closers
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty
Cover Type:
Metal
Hold Open Feature:
No
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson 7500-600-689 – Frequently Asked Questions

1) What does the Norton Rixson 7500 tri pack actually include, and do I have to order arms separately?
A 7500 Series tri pack ships three complete surface closers, each with a regular arm. Nothing else to add for a standard regular arm install. Two build choices sit on top of that: sex nuts and bolts, or a rust inhibitor version. Pick sex nuts and bolts when you are going through a wood or hollow metal door and want the closer clamped through rather than held by screws in a soft substrate; pick the rust inhibitor build for exterior or wash-down openings where the body sees weather.
2) Will one Norton Rixson 7500 closer work on doors of different widths, or do I need a different size per opening?
One model covers the range. The 7500 uses an adjustable-size spring, so the same closer is dialed to the opening rather than ordered by size, and it is specified for doors up to roughly 4 feet wide. On a multi-door job that is the point of buying a tri pack: three identical closers, each tuned in place to its own door weight and width.
3) Does the Norton Rixson 7500 door closer hold the door open?
No hold open on the 7500. It closes and latches every time, which is what you want on a fire-rated or smoke-barrier opening, and what you do not want on a receiving door someone needs propped. If hold open is the requirement, the Accentra 51 Series is a tri-packed hold open arm closer, and Orca Hardware's BHDC1958 is offered in a tri-packed hold open version as well.
4) Regular arm or parallel arm - which one do I need, and does the 7500 tri pack give me a choice?
The 7500 tri pack is supplied with the regular arm, which mounts the closer body on the pull side of the door with the arm reaching to the frame face. That is the efficient, lowest-power mounting and it is fine wherever the closer can live on the pull side. If the door swings out into a corridor or the closer has to be on the push side, you want a tri-mount closer that ships regular, parallel, and top jamb hardware in the carton: the Dexter DCH4000 and Arrow's DCN325 are both tri-mount Grade 1 closers of that kind.
5) What is the closest heavy duty Grade 1 surface closer to the Norton Rixson 7500 tri pack if I need a different brand on the same opening?
The BEST HD8000 Series is a heavy duty Grade 1 surface mounted closer, and the Sargent 1431 Powerglide is likewise a heavy duty Grade 1 surface closer with adjustable spring power. The Norton Rixson 7500 Series is ANSI/BHMA A156.4 Grade 1 and rated heavy duty, so all three sit in the same duty and grade band for high traffic commercial doors. The 7500 ships in a tri pack of three complete closers with regular arms; the HD8000 and 1431 are catalogued as single closers, so match quantity when you cross over.
6) Which other door closers come packed for regular, parallel and top jamb mounting like the Norton Rixson 7500 tri pack?
The Arrow DCN314 and DCN325 are Grade 1 surface closers supplied less cover with regular and parallel arm tri-pack mounting, in adjustable spring sizes 1-4 and 1-6 respectively. The Dexter DCH1000 is a Grade 1 tri mount surface closer for regular, parallel or top jamb mounting with a full cover. The Accentra 1101BF and 2701 are tri-packed non-hold open arm closers in the 1100 and 2700 Series. All of these give a single stocked part that covers more than one mounting position, the way the Norton Rixson 7500 tri pack does.
7) I need the closer to stay open while carts pass through - what do I order instead of the Norton Rixson 7500?
The 7500 Series has no hold open feature, so for a door that needs to stand open go to a hold open model. The Accentra 51 Series is a tri-packed hold open arm closer in sizes 1-6, and the Orca Hardware BHDC1958HO/PA is a hold open door closer with a parallel bracket for 1-3/4 inch doors. The Stanley Security A45-501HL uses a long hold open arm in a top jamb configuration. Confirm your local fire code before putting a mechanical hold open on a rated opening.
8) Is a Cal-Royal 400 Series closer an equal substitute for the Norton Rixson 7500?
No. The Cal-Royal 400 Series is a Grade 2 commercial hydraulic door closer, while the Norton Rixson 7500 is certified to ANSI/BHMA A156.4 Grade 1. If your specification calls for Grade 1, stay within the Cal-Royal line with the 500S barrier free closer or the 700S dual valve sized closer with adjustable tube arm, both of which are Grade 1. The Falcon SC91A is likewise a step down at Grade 3 light duty.
9) What heavy duty closer should I use if the door needs a slide track or flat arm instead of a regular arm?
The Norton Rixson 7500 tri pack is furnished with a regular arm. Where the opening calls for a track, the Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm standard for pull side mounting on 1-3/4 inch doors, and the Dorma 8916-JT is a heavy duty Grade 1 jamb track closer for frame face mounting on the pull side, adjustable size 1-6. For a flat arm, the Dormakaba 8616 AF86P FC SNB1 689 is a heavy duty Grade 1 closer with a flat non-hold open arm in a tri-pack.
10) Is the Arrow DC314 the same class of closer as the Norton Rixson 7500?
Both are Grade 1, but they are not the same class of service. The Arrow DC314 in the DC300 Series is a Grade 1 surface mounted closer rated light duty, and the Arrow DCN314 and DCN325 are light duty as well. The Norton Rixson 7500 is heavy duty with a high traffic rating. For an entrance or corridor door seeing constant use, look to the Design Hardware 116 or 416 Series, both heavy duty tri-packed non-hold open arm closers, rather than a light duty body.
11) I need a closer that pauses before it starts closing for accessible openings - what takes the place of the Norton Rixson 7500?
The 7500 Series offers adjustable closing speed, backcheck and latching but is not a delayed action model. For a delay before the swing begins, the Orca Hardware BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket for 1-3/4 inch doors, both tri-packed non-hold open arm. The Cal-Royal N900PBF in the 900 Series is a barrier free Grade 1 hydraulic surface closer, and the Calibre CA9901 is a Grade 1 tri-pack arm ADA closer in sizes 2-5.
12) Is the Norton Rixson 7500 heavy duty enough for a school or hospital entrance that gets hammered all day?
That is the application it is built for. The 7500 is rated heavy duty and high traffic, and it is certified to ANSI/BHMA A156.4 Grade 1, the top grade in the closer standard. Commercial-only product, not a residential closer.
13) What finishes does the Norton Rixson 7500 tri pack come in, and will it match the other closers in my building?
Two finishes: 689 aluminum and 690 dark bronze. Both are standard architectural closer finishes, so 689 will sit alongside the aluminum closers already on most commercial openings and 690 matches dark bronze storefront and entrance hardware. Both finishes are available in either the sex nuts and bolts build or the rust inhibitor build.
14) Can I adjust closing speed and latch speed on the 7500 after it is installed?
Yes, and you will need to. Closing speed, latching speed, and backcheck are all adjustable on the 7500. Set closing speed for the sweep, latching for the last few inches so the latch throws without slamming, and backcheck to stop the door being flung into the adjacent wall on a windy exterior opening. On a tri pack across three different doors, expect each one to end up at a slightly different setting.
15) I need closers for an exterior door on a coastal or wash-down building. Which 7500 version should I order?
Order the rust inhibitor version. It is one of the two builds offered on the 7500 tri pack and it is the one meant for openings where the closer body sees moisture, salt air, or regular cleaning. It comes in both 689 aluminum and 690 dark bronze, so you are not forced into a finish change to get it.
16) Is the Norton Rixson 7500 a delayed action closer?
No delayed action on the 7500. It sweeps, latches, and that is it. Delayed action, which holds the door near open for several seconds before the sweep begins, is what you want on an accessible or hospital opening where someone is coming through with a cart or a wheelchair. For that, Orca Hardware's BHDC1958DA and BHDC2011DA are delayed action closers with a regular arm and parallel bracket.
17) The door is a low traffic interior office door - is there a lighter closer than the Norton Rixson 7500?
Yes. The Norton Rixson 7500 is a heavy duty closer built for high traffic openings. For light traffic the BEST SL6000 Series is a Grade 1 light duty surface closer with adjustable spring sizes, the LCN 1250 Series is a light duty surface closer in sizes 1-5 with all-weather fluid, and the Falcon SC61A is a light to medium duty Grade 1 cast aluminum closer. The BEST HD7000 Series sits in between as a medium duty Grade 1 closer with adjustable spring power and backcheck control.
18) We standardize a whole building on one closer - which heavy duty closers cover the widest range of door sizes from a single part number?
The Norton Rixson 7500 uses an adjustable size spring, so one closer covers a range of door sizes rather than a fixed size. Among heavy duty peers, the BEST EHD9000 Series is an extra heavy-duty surface closer with adjustable spring sizes 1-6, the Imperial USA TC4300 is a Grade 1 heavy duty size 1-6 ADA closer, and the LCN 1460T is a heavy duty Grade 1 commercial closer in a powder coat finish. Each keeps your stocked SKU count down across a mix of openings.
19) The Norton Rixson 7500 comes with a metal cover - which comparable closers come without one?
The 7500 Series carries a metal cover. The Arrow DCN314 and DCN325 are supplied less cover, so the body is exposed unless you add one. Among covered options, the Dexter DCH1000 is a Grade 1 tri mount surface closer with a full cover and the Design Hardware 316 Series is a medium to heavy duty tri-packed non-hold open arm closer furnished with a cover. On a public corridor or a lobby where the closer is visible, the cover is usually part of the finish decision.
20) Our spec sheet lists a Corbin Russwin DC8200 - how does that line up against the Norton Rixson 7500?
The Corbin Russwin DC8200 Series is a Grade 1 surface door closer with a double lever regular arm for pull side mounting on 1-3/4 inch doors, and the DC6200 Series shares that same double lever regular arm and pull side arrangement. The DC3200 is a Grade 1 regular arm surface closer for 1-3/4 inch doors. The Norton Rixson 7500 is also Grade 1 with a regular arm and is supplied as a tri pack of three closers, so a one-for-one swap against a DC8200 count means dividing your door count by three.
21) Which of these closers is not actually a substitute for a Norton Rixson 7500?
A few items sit near door closers without being one. The Arrow DCN500DP is a parallel drop plate for the DCN500, a mounting accessory rather than a closer. The Stanley Security 327 and 341 are wardrobe pivots for 1-3/8 and 1-3/4 inch doors and for flush recessed or overlay doors, and the Stanley 57-0100 is a box of 100 steel machine screws for architectural hinges. The Norton Rixson 7500 is a complete surface mounted closer, so none of those will control a door on their own.
22) Are cast iron closers an alternative to the Norton Rixson 7500 on an exterior entrance?
They are a common choice for that duty. The Sargent 281 Powerglide is a cast iron surface door closer of heavy duty Grade 1 construction, and the LCN 1261 in the 1260 Series is a cast iron closer with adjustable spring sizes 1-5, rated light to medium duty. The Norton Rixson 7500 uses high-strength corrosion-resistant construction and is offered in a rust inhibitor version, which is the usual answer for weather exposure on this body.
23) What is the difference between the Sargent 1431 and the Sargent 1331 when replacing a Norton Rixson 7500?
The Sargent 1431 Powerglide is a heavy duty Grade 1 surface closer with adjustable spring power, which matches the heavy duty rating of the Norton Rixson 7500. The Sargent 1331 with its universal aluminum body and the Sargent 1131 are both Grade 1 but rated medium duty. On a high traffic opening the 1431 is the like-for-like move; the 1331 and 1131 suit doors seeing lighter cycles.
24) Is the Norton Rixson 7500 closer body exposed, or does it come with a cover?
A metal cover comes with it, not plastic. That matters on tenant-facing and institutional openings where a poly cover gets cracked or walks off. Worth noting against closers sold less cover, like the Arrow DCN314 and DCN325, where the cover is a separate line item.
25) I only need one closer, not three. Is there a single-closer equivalent to the 7500 tri pack?
The 7500 tri pack is sold as three units, so for a one-door repair you are buying two spares. Single Grade 1 heavy duty surface closers in the same class include the Falcon SC71A, the Sargent 1431, the BEST HD8000, and the LCN 1460T. That said, if you manage a building and expect to replace more closers over the next year, buying the tri pack and shelving two is usually the more practical move.
26) We are matching dark bronze hardware on the rest of the doors - what else comes close to the Norton Rixson 7500 in a darker finish?
The 7500 tri pack is offered in 689 aluminum and 690 dark bronze. If you are cross-shopping, the LCN 1460T is a heavy duty Grade 1 closer supplied in a powder coat finish, and the DORMA 7303 Series is a Grade 1 medium duty surface closer in a painted finish, as is the Dormakaba 7414 in sizes 1-4. Painted and powder coat bodies give you a color match route when a plated finish is not the requirement.
