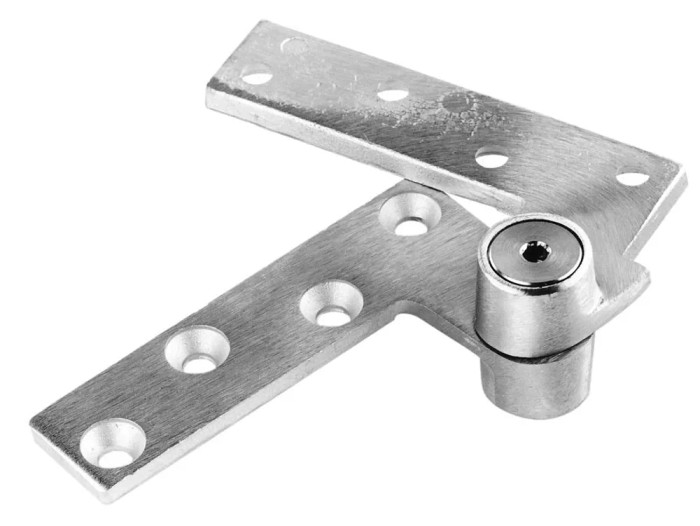

Norton Rixson Heavy Duty 3/4" Offset Top Pivot with Precision Needle Bearings

Norton Rixson Heavy Duty 3/4" Offset Top Pivot with Precision Needle Bearings

(No reviews yet) Write a Review

Model: H180 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$479.00
$294.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson Heavy Duty 3/4" Offset Top Pivot with Precision Needle Bearings

Commercial-Grade Top Pivot for High-Traffic Door Applications

The Norton Rixson H180 Heavy Duty Top Pivot delivers professional-grade performance for commercial doors requiring 3/4" offset pivot systems. This precision-engineered top pivot stabilizes doors at the head while bottom pivots or floor closers carry the weight, ensuring smooth operation and tight alignment in high-traffic environments. Built with anti-friction needle bearings and heavy-gauge construction, this Grade 1 pivot supports doors up to 300 lbs with mortise installation for tamper-resistant security.

Professional Features & Benefits

  • Precision 3/4" Offset Design: Matches standard offset pivot sets and floor closers with 3/4" offset from door face to pivot centerline for balanced operation.
  • Heavy-Duty Grade 1 Construction: ANSI/BHMA A156.4 Grade 1 rated components engineered for high-cycle commercial environments and demanding applications.
  • Anti-Friction Needle Bearings: Precision bearing pin system provides smooth, quiet rotation while maintaining door alignment over extended service life.
  • 300 lb Door Capacity: Supports doors up to 300 lbs when properly paired with weight-bearing bottom pivot or floor closer systems.
  • Mortise Installation: Clean, tamper-resistant mortise mounting into door top and frame header for professional appearance and security.
  • Universal Door Compatibility: Works with wood, hollow metal, and aluminum doors and frames with proper reinforcement for versatile commercial applications.
  • Professional Satin Chrome Finish: Durable US26D (626) satin chrome finish provides long-lasting professional appearance in commercial settings.
  • 2 Year Limited Warranty: Manufacturer warranty coverage provides confidence and protection for commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.4, Grade 1
  • Application: Standard Door
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Weight: Up to 300 lbs
  • Duty Level: Standard Duty
  • Electronic: No
  • Fire Rating: No
  • Grade: Grade 1
  • Hang Type: Center Hung
  • Mounting Method: Center Hung
  • Pivot Type: Top & Bottom
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Steel
  • Product Type: Pivot Hinges
  • Series: 128 Series
  • Subcategory: Center Hung
  • Warranty: 2 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (minimum 1-3/4"), offset dimensions, and frame header construction.
  2. Use manufacturer-provided templates to mark mortise locations accurately on door top and frame header surfaces for precise alignment.
  3. Prepare door and frame by cutting required mortises to specified dimensions and depth per manufacturer instructions.
  4. Install pivot assembly into door top mortise and secure frame component to header using provided fasteners per manufacturer torque specifications.
  5. Adjust pivot alignment for proper door clearances and smooth operation throughout the full range of motion with companion bottom pivot or floor closer.
  6. Test door operation to verify smooth swing, proper alignment, and secure mounting. Refer to manufacturer documentation for complete installation details and compatibility requirements with bottom pivot systems.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson pivot hardware delivers professional-grade reliability with heavy-gauge steel construction and precision anti-friction needle bearings rated for demanding commercial applications. ANSI/BHMA Grade 1 certification ensures consistent performance in high-traffic environments, while the 2 Year Limited warranty provides added confidence. Engineered for hospitals, schools, offices, and public buildings where dependable door operation and clean aesthetics are essential.

Manufacturer Resources

Product Specs

Series:
128 Series
Duty Level:
Standard Duty
Hang Type:
Center Hung
Grade:
Grade 1
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.4, Grade 1
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Offset Pivot Hinges
Subcategory:
Top Pivots
Door Weight:
Up to 300 lbs
Commercial/Residential:
Commercial
Electronic:
No
Pivot Type:
Top & Bottom
Mounting Method:
Center Hung
Application:
Standard Door
Product Attribute:
Pivots
Door Hand Direction:
Non-Handed
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

Norton Rixson H180 626 – Frequently Asked Questions

1) Does the Norton Rixson 128 Series top pivot come in a 1-1/2 inch offset as well as 3/4 inch?
Both offsets are offered. The 128 Series offset top pivot is ordered as either a 3/4 inch offset or a 1-1/2 inch offset, and the offset has to match the bottom pivot or floor closer already in the opening. Mixing a 3/4 inch top with a 1-1/2 inch bottom puts the door out of alignment and binds the swing.
2) Will this top pivot carry the weight of the door by itself?
No. The 128 Series top pivot only steadies the door at the head. The weight is carried by the bottom pivot or the floor closer underneath, and the 300 lb door rating applies to the assembly working together. Order the matching bottom pivot or floor closer with it.
3) Can I use this pivot on a fire rated door?
No. The 128 Series offset top pivot is not fire rated, so it should not go on a labeled opening. For a rated door you need pivot hardware carrying a fire label.
4) What door thickness does this Norton Rixson top pivot need?
Minimum 1-3/4 inch door thickness, which is the standard commercial leaf. Thinner doors do not give enough material for the mortise prep in the top of the door.
5) Will this work on an aluminum storefront door, or only wood and hollow metal?
Wood, hollow metal, and aluminum doors and frames all work, provided the door and header are reinforced for the mortise prep. The pivot mortises into the top of the door and into the frame header, so the header needs backing to take the fastener load.
6) Do I need to order a left hand and right hand version of this pivot?
No handing to specify. The 128 Series offset top pivot is non-handed, so the same part works on a left or right hand opening. You only pick the offset and the finish.
7) Is this a surface applied pivot or does the door have to be prepped?
It mortises in. The pivot sets into a cut in the top of the door and a matching mortise in the frame header, so you are cutting prep on both sides, not screwing a plate to the face. Templates are used to lay out the mortise locations. The upside is a concealed, tamper resistant installation.
8) Is this pivot rated for a high traffic entrance in a school or hospital?
Yes, it is built for commercial traffic. The pivot is ANSI/BHMA A156.4 Grade 1, which is the top grade in that standard for hinges and pivots, and it runs on anti-friction needle bearings for the cycle life a public entrance demands. Steel construction throughout.
9) What finishes can I get this Norton Rixson pivot in to match the rest of my door hardware?
Six finishes, in both offsets: 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, and 626 satin chrome. 626 satin chrome is the usual match for commercial openings already running 626 levers and closers.
