Norton Rixson 500/530 Switch Post with RF Transmitter and Hardwired Options

Professional Door Control Switch Post Solution

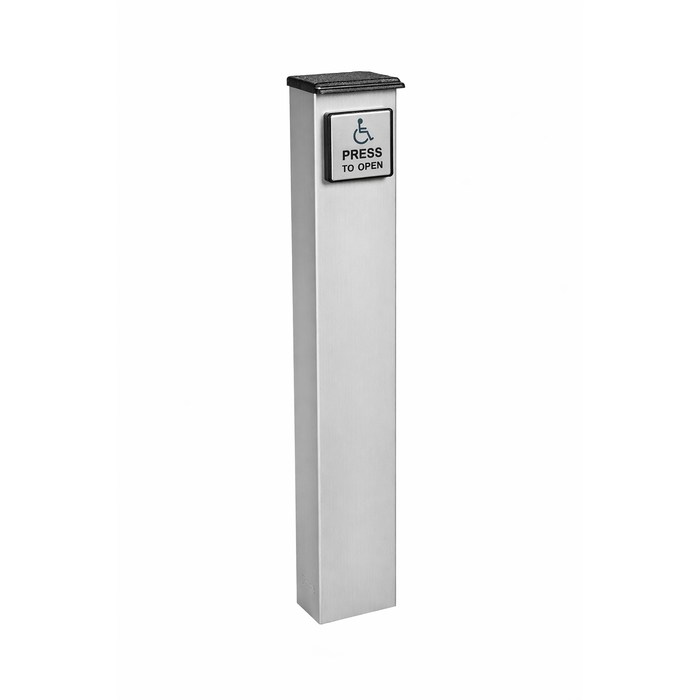

The Norton Rixson 500/530 Switch Post provides reliable surface-mounted activation for automatic door operators with both hardwired and radio frequency transmitter configurations. This 4" x 6" x 40" switch post features 3/16" wall thickness construction and operates with a 9 volt battery system across an RF temperature range of -4°F to 122°F. Available in 689 (aluminum) or 690 (dark bronze) finishes with standard formed plastic cap for professional installations.

Professional Features & Benefits

  • Robust Construction: 4" x 6" x 40" dimensions with 3/16" wall thickness provide durable surface-mounted installation above ground.
  • Dual Configuration Options: Model 500 offers hardwired switch operation while Model 530 includes radio frequency transmitter capability for flexible installation requirements.
  • Wide Temperature Range: RF operation rated from -4°F to 122°F ensures reliable performance in various environmental conditions.
  • Professional Finish Options: Available in 689 (aluminum) or 690 (dark bronze) finishes to complement architectural requirements.
  • Battery Operation: 9 volt battery power system provides reliable operation for wireless configurations.
  • Extensive Operator Compatibility: Works with Norton Rixson 5600, 5700, 6000, and 6300 Series operators for versatile system integration.
  • Modular Design: 530POST option available as post-only configuration allowing separate switch selection for custom applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Compatibilty: All Low Energy Operators Except 5800
  • Department: Door Hardware
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Electronic Access Controls
  • Product Model: 500/530
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Switch Post
  • Subcategory: Accessories

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 9 volt battery capacity and RF temperature range compatibility (-4°F to 122°F) before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified surface location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams for Model 500 hardwired configuration, or configure RF transmitter settings for Model 530. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including radio frequency transmitter parameters per application requirements for Model 530 installations.
  6. Restore power and test all functions including normal operation, RF transmission capabilities, and integration with compatible Norton Rixson operator series.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Establishment Entry Systems
  • Industrial Facility Monitoring
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson switch post products deliver professional-grade reliability with robust 3/16" wall thickness construction rated for extreme temperature operation from -4°F to 122°F. The dual configuration design with both hardwired and RF transmitter options provides installation flexibility while maintaining compatibility with multiple Norton Rixson operator series. Engineered for demanding commercial applications where dependable door control activation is essential.

Manufacturer Resources

Norton Rixson Warranty

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Switch Post
Subcategory:
Accessories
Commercial/Residential:
Commercial
Compatibility:
All Low Energy Operators Except 5800
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
500/530
Product Category:
Electronic Access Controls
Department:
Door Hardware

Norton Rixson 500-689 – Frequently Asked Questions

1) Will the Norton Rixson 500/530 switch post work with my 5800 low energy operator?
No. The 500/530 switch post works with all Norton Rixson low energy operators except the 5800. If your opening runs a 5800, this post is the wrong activation device for it. On 5600, 5700, 6000 and 6300 Series operators it is a match.
2) What is the difference between the Norton Rixson 500 and the 530 switch post?
Same post, different activation. The 500 is the hardwired version, so the actuator switch runs back to the operator on wire you pull. The 530 carries a radio frequency transmitter running on a 9 volt battery, which is the one to pick when you cannot trench or conduit a run out to the post. Pick the transmitter option, hard wired or radio frequency, when you order.
3) Do I need to run power to the location for a Norton Rixson 530 switch post?
Not to the post itself. The 530 uses a 9 volt battery and an RF transmitter, so the only wiring is at the operator end where the receiver lives. That is what makes it workable across a sidewalk or a finished lobby floor. The hardwired 500 does need a wire run from the post back to the operator, routed per the operator's wiring diagram.
4) How big is the Norton Rixson 500/530 bollard switch post, and how heavy is the wall?
The post measures 4 x 6 x 40 inches with a 3/16 inch wall thickness. That 40 inch height puts the actuator at push height for a surface mount above ground, and the 3/16 inch wall is what lets it stand up in a traffic path like a healthcare or retail entry vestibule where carts and chairs hit it.
5) Can the Norton Rixson 530 RF switch post be used outside in cold weather?
The RF operation is rated from -4 F to 122 F, so the wireless transmitter holds up through a normal northern winter and a hot exterior entry. Below -4 F you are outside the rated range and the hardwired 500 configuration is the safer call, since it does not depend on a battery transmitter.
6) Is the Norton Rixson 500/530 switch post a replacement part or a new install item?
Both. It is carried as a Norton Rixson replacement part for commercial low energy operator systems, so it drops in when an existing bollard on an automatic entry has been struck or corroded out, and it is equally the item you specify on a new low energy opening that needs a remote actuator away from the door.
