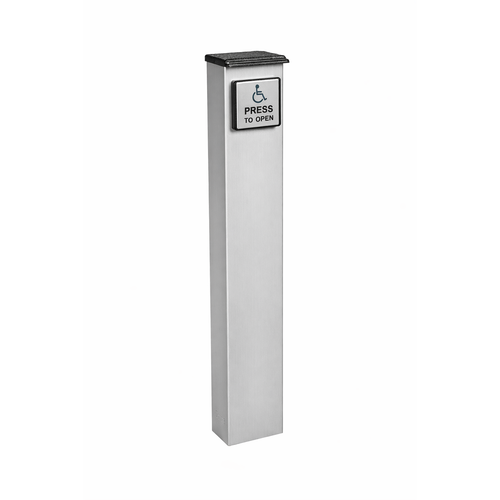

Norton Rixson 500/530 Switch Post with RF Transmitter and Hardwired Options
Model: NOR-500/530
Norton Rixson 500/530 Switch Post with RF Transmitter and Hardwired OptionsProfessional Door Control Switch Post SolutionThe Norton Rixson 500/530 Switch Post provides reliable surface-mounted...
Norton Rixson
Starting at
$1,279.26
$863.30
BEA 10TD900PB 900 MHz Hardwired Transmitter with Flagged Operation for Activation Plates
Model: BEA-10TD900PB
BEA 10TD900PB 900 MHz Hardwired Transmitter for Activation PlatesThe BEA 10TD900PB is a 900 MHz hardwired transmitter with flagged operation, designed for wireless activation of automatic door...
BEA
$78.40
$51.94
BEA 45S-900 ADA Wireless Push Plate Package, 900 MHz, Complete Kit with Transmitters, Receiver & Surface Mount Boxes
Model: BEA-45S-900
BEA 45S-900 Wireless Push Plate Package, 900 MHzThe BEA 45S-900 is a complete wireless push plate kit for commercial automatic door activation. The package ships with every component needed for a...
BEA
$435.54
$300.58
BEA 475S-900 Wireless Security Push Plate Package with 900 MHz Transmitters and Receiver
Model: BEA-PUSH PLATE 475S-900
BEA 475S-900 Wireless Security Push Plate Package with 900 MHz Transmitters and ReceiverComplete Wireless Access Control SolutionThe BEA 475S-900 wireless security push plate package provides a...
BEA
$460.02
$318.14
Norton Rixson 546 RF Transmitter - 900 MHz Hardwired Push Plate Converter
Professional Radio Frequency Conversion Solution
The Norton Rixson 546 Transmitter is a hardwired RF transmitter that converts existing hardwired push plates to work with radio frequency receivers. Operating at 900 MHz frequency, this transmitter includes a battery and requires the 537 receiver (sold separately) for complete system operation. Designed for commercial electronic access control applications, the 546 provides reliable wireless conversion for automatic door operator systems.
Professional Features & Benefits
- 900 MHz RF Operation: Operates on 900 MHz frequency for reliable wireless communication with compatible receivers.
- Hardwired Conversion: Converts existing hardwired push plates to radio frequency operation without replacing existing hardware.
- Battery Included: Complete with battery for immediate installation and operation.
- System Integration: Requires 537 receiver (sold separately) for complete wireless push plate system functionality.
- Wide Operator Compatibility: Compatible with Norton Rixson 5600, 5700, 6000, and 6300 Series automatic door operators.
- Commercial-Grade Design: Engineered for reliable performance in commercial electronic access control applications.
- Easy Installation: Hardwired design allows straightforward integration with existing push plate installations.
Technical Specifications
- Commercial/Residential: Commercial
- Compatibilty: All Low Energy Operators Except 5800
- Department: Door Hardware
- Electronic: Yes
- Product Category: Electronic Access Controls
- Product Group: Electronic Access Controls
- Product Subgroup: Sensors, Switches, Relays and Timers
- Product Type: Receivers and Transmitters
- Subcategory: Accessories
Installation & Operation
- Verify electrical requirements match available power supply. Confirm voltage per specifications and current capacity before proceeding.
- Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
- Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
- Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
- Configure operational settings including any configurable options per application requirements.
- Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
- Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
Professional Applications
- Commercial Building Security Systems
- Healthcare Facility Access Control
- Educational Institution Safety Systems
- Retail Loss Prevention
- Industrial Facility Monitoring
- Emergency Exit Compliance
- Automatic Door Operator Integration
Why Choose Norton Rixson Quality?
Norton Rixson electronic access control products deliver professional-grade reliability with 900 MHz RF technology designed for demanding commercial applications. The 546 Transmitter provides dependable wireless conversion capabilities with wide compatibility across multiple Norton Rixson operator series. Engineered for commercial installations where reliable automatic door operation and access control integration are essential.
Manufacturer Resources
Norton Rixson Warranty
Product Specs
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Receivers and Transmitters
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Compatibility:
- All Low Energy Operators Except 5800
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Norton Rixson 546 NOR – Frequently Asked Questions
1) Will the Norton Rixson 546 transmitter work with my low energy door operator?
The 546 works with all Norton Rixson low energy operators except the 5800. That covers the 5600, 5700, 6000 and 6300 Series. If your opening runs a 5800, this is the wrong transmitter for it.
2) Do I need anything else to make the Norton Rixson 546 transmitter work?
Yes, the 537 receiver, which is sold separately. The 546 only sends the signal; without the matching 900 MHz receiver wired to the operator, nothing actuates. The battery is in the box, so that is not a separate line item.
3) Can I go wireless without replacing my existing hardwired push plates?
That is exactly what the 546 does. It wires to the push plates you already have and converts their output to a 900 MHz RF signal, so the plates, their faceplates and their mounting stay put. Useful when the plate is fine but pulling wire back to the operator is the expensive part of the job.
4) What is the difference between the Norton Rixson 546 transmitter and the RCI 9RCT433 wireless transmitter and receiver series?
The Norton Rixson 546 is a hardwired RF transmitter that converts an existing hardwired push plate to 900 MHz radio frequency operation, and it works as one half of a system: the 537 receiver is required, sold separately, for complete operation. The RCI 9RCT433 Series is offered as wireless transmitters and receivers with rolling code security, so the transmitter and the matching receiver come from the same series. The 546 is the choice when the existing push plates stay in place and the goal is to cut the wire run back to a Norton Rixson low energy operator; the 9RCT433 Series is the choice when the transmitter and receiver are both being specified new and rolling code security is called for.
5) Can an RCI 9RCT433 transmitter be used in place of a Norton Rixson 546 on a Norton Rixson low energy operator?
Treat them as separate systems rather than drop-in replacements. The Norton Rixson 546 is specified for compatibility with all Norton Rixson low energy operators except the 5800, and it pairs with the Norton Rixson 537 receiver. The RCI 9RCT433 Series is its own transmitter and receiver family with rolling code security, so an RCI transmitter is matched to an RCI receiver in that series, not to the Norton Rixson 537. If the receiver already installed at the operator is the 537, the 546 is the transmitter that belongs with it; going to the 9RCT433 Series means changing out the receiver side as well.
6) Is the Norton Rixson 546 a transmitter or a receiver?
Transmitter. The 546 mounts at the actuator end and sends the signal; the 537 receiver sits on the operator side and takes it. Order both if you are building the system from scratch.
7) I manage a building with several automatic doors on different Norton Rixson operators. Can I standardize on the 546?
Across 5600, 5700, 6000 and 6300 Series openings, yes, and more broadly across any Norton Rixson low energy operator with the single exception of the 5800. Openings running a 5800 have to be handled another way. Each converted opening still needs its own 537 receiver at the operator.
