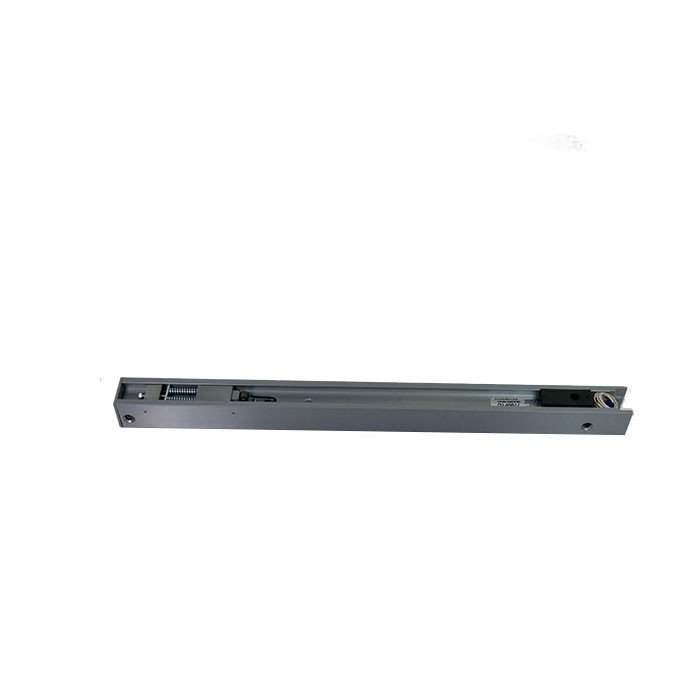

Norton Rixson 7700 Power Track Assembly - Hinge Side Track Assembly, Master or Support

Norton Rixson 7700 Series Power Track Assembly - Hinge Side Master/Support Track for Automatic Door Systems

(No reviews yet) Write a Review

Model: PTO24-689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$670.31
$596.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 7700 Series Power Track Assembly - Hinge Side Master/Support Track for Automatic Door Systems

Precision-Engineered Track Assembly for Multi-Door Automatic Systems

The Norton Rixson 7700 Power Track Assembly delivers professional-grade performance for automatic door systems requiring precise alignment and reliable operation. This hinge side track assembly functions as either a master or support track, providing flexibility for multi-door installations in commercial and institutional environments. Constructed from high-strength, corrosion-resistant materials, this track assembly ensures smooth door movement while maintaining proper alignment in high-traffic applications.

Professional Features & Benefits

  • Dual Function Design: Configurable as either master or support track assembly for versatile multi-door system integration and installation flexibility.
  • Hinge Side Installation: Specifically designed for hinge side mounting to ensure precise door alignment and stable operation throughout the door cycle.
  • Heavy-Duty Construction: High-strength, corrosion-resistant metal construction provides exceptional durability for demanding commercial applications.
  • Smooth Operation Technology: Precision-engineered track design ensures consistent door movement, reducing wear and maintaining proper functionality over time.
  • Low-Maintenance Design: Engineered for minimal upkeep requirements while delivering dependable performance in high-traffic environments.
  • ANSI/BHMA Certified: ANSI/BHMA A156.15 certification ensures compliance with industry standards for automatic door operators.
  • Manufacturer Warranty: 2 Year Limited warranty provides added confidence and protection for commercial installations.
  • Hold Open Feature: Integrated hold open capability enhances operational flexibility for various traffic patterns and accessibility requirements.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.15 certified
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Hold Open Feature: Yes
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Power Operators
  • Product Type: Low Energy Operators
  • Series: 7700PT Series
  • Spring Type: Fixed Size
  • Subcategory: Surface Closers
  • Warranty: 2 Year Limited

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the track assembly in the specified hinge side location ensuring adequate clearance for door operation, wiring access, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the automatic door system application.
  5. Configure operational settings including hold open features and master/support track functions per application requirements.
  6. Restore power and test all functions including normal door operation, hold open functionality, and integration with connected automatic door system components.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Building Entrances
  • Healthcare Facility Automatic Doors
  • Educational Institution Main Entrances
  • Retail Store Automatic Entry Systems
  • Multi-Tenant Residential Building Access
  • Government and Municipal Building Entrances
  • Industrial Facility Personnel Doors

Why Choose Norton Rixson Quality?

Norton Rixson 7700 Series track assemblies deliver professional-grade reliability with high-strength, corrosion-resistant construction engineered for demanding commercial applications. ANSI/BHMA A156.15 certification ensures compliance with industry standards, while the 2 Year Limited warranty provides added confidence for commercial installations. Precision-engineered for consistent performance where dependable automatic door operation is essential.

Manufacturer Resources

Product Specs

Series:
7700PT Series
Spring Type:
Fixed Size
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.15 certified
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Track Assembly
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Hold Open Feature:
Yes
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson PTO24-689 – Frequently Asked Questions

1) Is the Norton Rixson 7700 power track assembly a complete automatic door operator, or just the track?
It's the track assembly only, the hinge side power track for a Norton Rixson 7700 Series automatic door system. It mounts on the hinge side of the opening and carries the door, so you still need the operator and the rest of the 7700 system components to have a working door. If you're replacing a failed track on an existing 7700 installation, this is the part. If you're building a new automatic entrance from scratch, this is one piece of it.
2) What is the difference between a master track and a support track on a Norton Rixson 7700 system, and which one is this?
This one is both. The 7700 hinge side power track is configurable as either the master track or a support track, so on a multi-door entrance you order the same part for either position and set the function during installation. That's useful on a bank of automatic doors: one part number covers the driven leaf and the supporting leaves instead of stocking two.
3) Does the Norton Rixson 7700 power track meet ANSI/BHMA standards for automatic door operators?
Yes, it's certified to ANSI/BHMA A156.15, the standard covering power operated pedestrian doors. If you're specifying for a healthcare, education, or government facility where the submittal has to name a standard, that's the one to cite.
4) Does the Norton Rixson 7700 hinge side track need power run to it?
Yes. It's an electronic component of the automatic door system, so the installation includes routing and connecting wiring per the manufacturer's diagrams. Plan for wiring access at the track location and enough clearance to get back in for service later. Confirm your available supply and current capacity before you start, and kill the power before you mount anything.
5) Does the Norton Rixson 7700 track support a hold open function?
Hold open is built in. On the 7700 track you configure the hold open behavior along with the master or support setting during commissioning, which is what lets you park a door open for deliveries, moving traffic, or an accessible entrance during peak hours without defeating the operator.
6) What finish does the Norton Rixson 7700 power track assembly come in?
689 aluminum, and that's the only finish offered on this track. It's the standard painted aluminum finish, so it blends with aluminum storefront and most commercial entrance framing. If your other 7700 openings are 689, this matches them.
7) Is the Norton Rixson 7700 track assembly rated for commercial traffic or is it a residential part?
Commercial. The 7700 track is built for entrances that cycle constantly, office building and healthcare entrances, school main doors, retail entries, municipal buildings, and multi-tenant residential lobbies. It uses a corrosion resistant metal construction and is meant to run with minimal upkeep in that kind of traffic.
