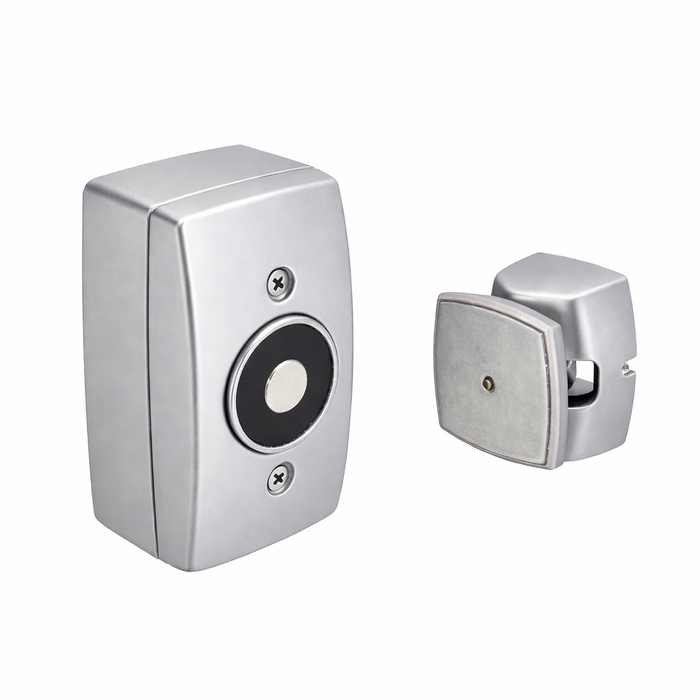

Norton Rixson 996M Wall-Mounted Electromagnetic Door Holder with Tri-Volt Operation

Norton Rixson 996M Wall-Mounted Electromagnetic Door Holder with Tri-Volt Operation

Professional Fire-Rated Door Control Solution

The Norton Rixson 996M electromagnetic door holder provides reliable wall-mounted door control with tri-volt operation (120VAC, 24VAC/DC, 12VDC) and 25-40 lbs. holding force. This surface-mounted unit features an adjustable armature with 4-1/8" total projection and requires 1-1/2" deep adapter housing for proper installation. ANSI/BHMA A156.15 Grade 1 certified and UL-cUL fire-rated up to 3 hours for commercial door applications.

Professional Features & Benefits

• Compact Wall-Mount Design: 4-1/8" total projection with surface mounting for versatile installation in space-constrained applications.
• Tri-Volt Operation: Compatible with 120VAC, 24VAC/DC, and 12VDC power systems for flexible integration with existing electrical infrastructure.
• Adjustable Holding Force: Standard 25-40 lbs. holding force with optional 50-55 lbs. capacity available for heavier door applications.
• Fail-Safe Operation: Power failure automatically releases door to close, ensuring fire safety compliance and emergency egress.
• Grade 1 Construction: ANSI/BHMA A156.15 Grade 1 certification ensures commercial-grade durability and performance standards.
• Fire-Rated Performance: UL-cUL listed and fire-rated up to 3 hours with CAL FIRE certification for critical fire safety applications.
• Surface Wiring Design: Eliminates need for in-wall conduit routing, simplifying installation and maintenance access.
• Manufacturer Warranty: 2-year limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

• ANSI/BHMA: ANSI/BHMA A156.15, Grade 1
• Application: Commercial Doors
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Electronic: Yes
• Grade: Grade 1
• Mounting Method: Wall
• Product Category: Door Controls
• Product Finish: Aluminum
• Product Group: Door Controls
• Product Subgroup: Electromagnetic Door Holder / Releases
• Product Type: Electromagnetic Door Holder / Releases
• Product Voltage: 120VAC, 24VAC/DC, 12VDC
• Subcategory: Electromechanical Closers & Holders
• Warranty: 2 Year Limited
• Wiring: Surface

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (120VAC, 24VAC/DC, or 12VDC) and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-safe operation per application requirements.
6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Fire Safety and Emergency Egress Systems
• Industrial Facility Monitoring
• Government and Municipal Buildings
• Multi-Tenant Commercial Properties

Why Choose Norton Rixson Quality?

Norton Rixson electromagnetic door holders deliver professional-grade reliability with aluminum construction and ANSI/BHMA Grade 1 certification for demanding commercial applications. UL-cUL fire-rated up to 3 hours with 2-year limited warranty coverage. Engineered for critical fire safety applications where dependable fail-safe operation is essential for life safety compliance.
