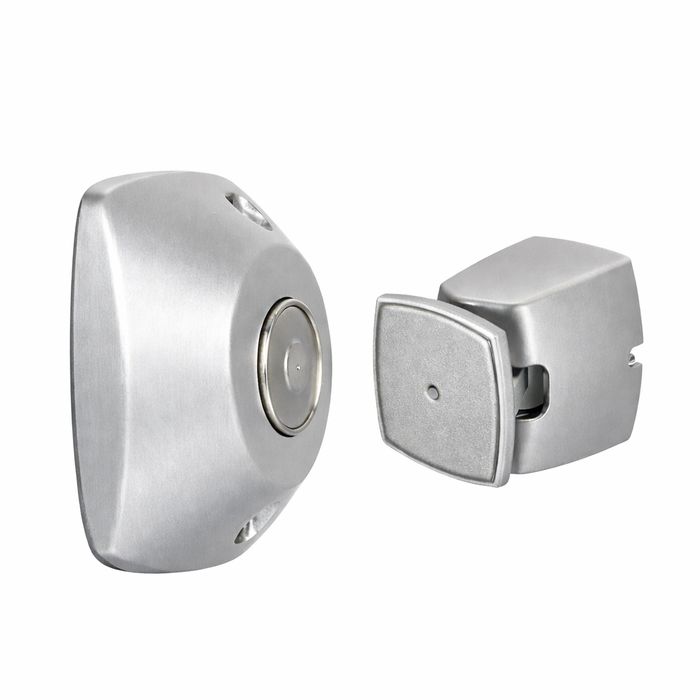

Norton Rixson 999M Universal Wall Mounted Electromagnetic Door Holder with Tri-Volt Operation

Norton Rixson 999M Universal Wall Mounted Electromagnetic Door Holder with Tri-Volt Operation

(No reviews yet) Write a Review

Model: RIX-999M 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$971.87
$558.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 999M Universal Wall Mounted Electromagnetic Door Holder with Tri-Volt Operation

Professional Fire-Rated Door Control Solution

The Norton Rixson 999M electromagnetic door holder provides reliable wall-mounted door control with universal mounting capabilities and tri-volt operation (120VAC, 24VAC/DC, 12VDC). This Grade 1 certified unit features a compact 4-3/8" total projection design and delivers 25-40 lbs. holding force with fail-safe operation for fire safety compliance. UL-cUL fire-rated up to 3 hours and ANSI/BHMA A156.15 Grade 1 certified for demanding commercial applications.

Professional Features & Benefits

  • Compact Wall Mount Design: 4-3/8" total projection with universal mounting accommodates 2" x 4" outlet box, 4" square box, or 4" octagonal box installations.
  • Tri-Volt Flexibility: Standard 120VAC, 24VAC/DC, and 12VDC operation provides compatibility with various building electrical systems and fire alarm configurations.
  • Reliable Holding Force: 25-40 lbs. standard holding force with optional 50-55 lbs. capacity available by specifying voltage requirements for heavy door applications.
  • Fail-Safe Fire Protection: Electromagnetic release operation ensures doors close automatically during power failure or fire alarm activation for life safety compliance.
  • Grade 1 Durability: ANSI/BHMA A156.15 Grade 1 certification ensures commercial-grade performance and reliability in high-traffic applications.
  • Fire-Rated Construction: UL-cUL listed and fire-rated up to 3 hours with CAL FIRE certification for code compliance in fire-rated door assemblies.
  • Concealed Wiring: Professional concealed wiring installation maintains clean appearance while providing secure electrical connections.
  • Manufacturer Warranty: 2-year limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.15, Grade 1
  • Application: Commercial Doors
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Electronic: Yes
  • Grade: Grade 1
  • Mounting Method: Wall
  • Product Category: Door Controls
  • Product Finish: Aluminum
  • Product Group: Door Controls
  • Product Subgroup: Electromagnetic Door Holder / Releases
  • Product Type: Electromagnetic Door Holder / Releases
  • Product Voltage: 120VAC, 24VAC/DC, 12VDC
  • Subcategory: Electromechanical Closers & Holders
  • Warranty: 2 Year Limited
  • Wiring: Concealed

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage (120VAC, 24VAC/DC, or 12VDC) and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-safe operation per application requirements.
  6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Fire-Rated Door Assembly Integration
  • Multi-Tenant Commercial Properties

Why Choose Norton Rixson Quality?

Norton Rixson electromagnetic door holders deliver professional-grade reliability with Grade 1 certification and UL-cUL fire rating up to 3 hours for demanding commercial applications. The 2-year limited warranty and fail-safe operation provide confidence in critical fire safety installations. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Condition:
New
Grade:
Grade 1
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.15, Grade 1
Product Group:
Door Controls
Product Subgroup:
Electromagnetic Door Holder / Releases
Product Type:
Electromagnetic Door Closers
Subcategory:
Electromechanical Closers & Holders
Commercial/Residential:
Commercial
Electronic:
Yes
Application:
Commercial Doors
Wiring:
Concealed
Product Voltage:
120VAC, 24VAC/DC, 12VDC
Product Finish:
Aluminum
Door Hand Direction:
Non-Handed
Mounting Method:
Wall
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson RIX-999M 689 – Frequently Asked Questions

1) Will the Norton Rixson 999M door holder work on my building's fire alarm power, or do I need a specific voltage?
The 999M is a tri-volt unit out of the box: 120VAC, 24VAC/DC, and 12VDC. That means the same part number ties into a line-voltage circuit, a 24V fire alarm panel output, or a 12VDC supply without ordering a different model. Wire it to whichever supply the alarm system drops, and confirm current capacity on that circuit before you connect it.
2) What happens to the door when the power drops or the fire alarm goes off?
It releases. The 999M is a fail-safe electromagnetic holder, so the magnet drops out on loss of power or on alarm signal and the door is free to close under its closer. That is the whole point of the device on a fire-rated opening: the door stays held open for daily traffic and self-closes the moment the alarm system de-energizes the circuit.
3) Can I use the Rixson 999M on a fire-rated door assembly?
Yes. It's UL-cUL listed and fire rated up to 3 hours, with CAL FIRE certification, and it carries ANSI/BHMA A156.15 Grade 1. That covers use as a hold-open release on rated openings in commercial, healthcare, and school buildings where the door must self-close on alarm.
4) What kind of electrical box do I need to rough in for a 999M wall holder?
Universal mounting, so it lands on any of three common boxes: a 2 inch by 4 inch outlet box, a 4 inch square box, or a 4 inch octagonal box. Wiring is concealed through the box, so plan the rough-in during framing rather than trying to surface-run conduit afterward.
5) Does the 999M replace the door closer, or do I still need one?
You still need a closer. The 999M only holds the door open and releases it; it supplies no closing force. Every opening using this holder needs a working door closer to actually pull the leaf shut and latch it once the magnet drops out. On a rated assembly the closer has to be capable of positive latching.
6) How far off the wall does the Rixson 999M stick out?
Total projection is 4-3/8 inches, measured from the wall face to the armature contact point. That number sets how far open the door will sit when held, and it's what you check against corridor clearance and against the strike plate position on the door face.
7) Do I have to specify handing for the 999M electromagnetic holder?
No. It's a non-handed device, so one part number covers left and right hand openings, and inswing or outswing. The wall-mounted magnet and the door-mounted armature find each other regardless of swing direction, which is useful when you're standardizing a stock of holders across a whole building.
8) Does the 999M hold the door closed, or does it hold it open?
It holds the door open. An electromagnetic door holder is not a maglock and provides no security function. The 999M energizes to hold a door in the open position for traffic flow, then releases it to close on alarm or power loss. If you need the door held shut under access control, you want a magnetic lock or an electric strike, not this device.
9) Is a wall-mounted holder the right choice, or should I use a floor-mounted one?
Wall mount is the call when the door swings to within reach of an adjacent wall and you can get a box into that wall. It keeps the hardware off the floor, out of the mop path, and the wiring concealed. Floor-mounted holders are the alternative where the door opens into open space with no wall behind it, or where the door swings well past any usable wall surface. The 999M is a wall-mount unit only, with 4-3/8 inches of projection to work with.
10) What finishes does the Norton Rixson 999M come in?
Five: 689 aluminum, 690 dark bronze, 691 light bronze, 693 flat black, and 696 satin brass painted. These are standard architectural finish numbers, so matching the holder to closers and push plates already on the opening is straightforward. 689 aluminum is the base finish.
