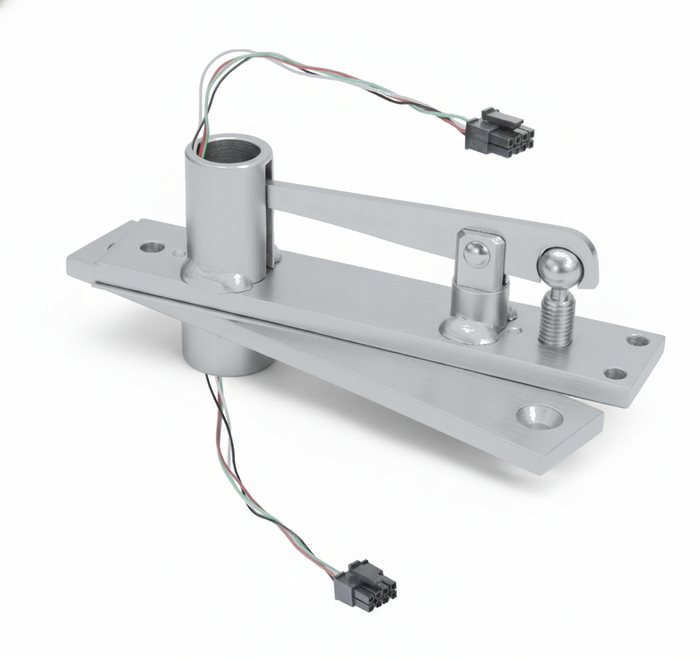

Norton Rixson EH340 Electrified Center Hung Heavy Duty Top Pivot with Power Transfer

Norton Rixson EH340 Electrified Center Hung Heavy Duty Top Pivot with Power Transfer

Professional Electrified Pivot Solution for Center Hung Door Systems

The Norton Rixson EH340 is a walking beam type electrified top pivot designed for center-hung door applications requiring power transfer capabilities. This heavy-duty pivot features an 11/16" (17mm) diameter pivot pin with 3/4" (19mm) engagement and can be used with any center hung bottom pivot or floor closer. The non-handed design provides installation flexibility while the heavy-duty needle bearing construction ensures reliable operation in demanding commercial applications.

Professional Features & Benefits

• Heavy-Duty Construction: Walking beam type pivot with 11/16" (17mm) diameter pivot pin and 3/4" (19mm) engagement for superior load capacity and durability.
• Flexible Wiring Options: Available with two, four, six, eight or twelve wires to accommodate various electrified door hardware requirements and system configurations.
• Professional Wire Specifications: Two-wire option available in 18 gauge, while four, six, eight and twelve wire configurations use 24 gauge wire with ElectroLynx® connectivity options.
• Universal Compatibility: Can be used with any center hung bottom pivot or floor closer, allowing for versatile system design and component selection.
• Precision Engineering: Heavy-duty needle bearing construction provides smooth operation and extended service life in high-traffic applications.
• Non-Handed Design: Universal installation capability eliminates the need for specific left or right-hand configurations, simplifying inventory and installation.
• Concealed Operation: Completely concealed when door is closed, maintaining clean architectural lines while providing essential power transfer functionality.
• Manufacturer Warranty: 2-year limited warranty provides confidence and protection for commercial installations.

Technical Specifications

• Application: Electrified, Heavy-Duty
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Duty Level: Heavy Duty
• Electronic: Yes
• Fire Rating: No
• Hang Type: Center Hung
• Mounting Method: Center Hung
• Pivot Type: Top & Bottom
• Product Attribute: Pivots
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Subgroup: Pivots and Pivot Sets
• Product Type: Pivot Hinges
• Subcategory: Center Hung
• Warranty: 2 Year Limited

Installation & Operation

1. Verify electrical requirements and wire count specifications match the intended electrified door hardware configuration before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the pivot in the specified center hung location ensuring proper alignment with the corresponding bottom pivot or floor closer system.
4. Route and connect wiring according to manufacturer wiring diagrams. Use ElectroLynx® connectors for four, six, eight and twelve wire configurations as specified.
5. Configure the pivot set ensuring the bottom pivot or floor closer is ordered LTP (less top pivot) to accommodate the EH340 as a separate component.
6. Restore power and test all functions including power transfer capability and integration with connected electrified hardware systems.
7. Complete final inspection and document wire configuration settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Access Control Systems
• Healthcare Facility Electrified Door Hardware
• Educational Institution Security Systems
• Office Building Automated Door Systems
• Retail Establishment Electronic Access
• Industrial Facility Controlled Entry Points
• Government and Municipal Building Security

Why Choose Norton Rixson Quality?

Norton Rixson EH340 electrified pivots deliver professional-grade reliability with heavy-duty needle bearing construction and precision-engineered walking beam design rated for demanding commercial applications. The 2-year limited warranty and ElectroLynx® connectivity options demonstrate the manufacturer’s commitment to quality and system integration. Engineered for demanding commercial applications where dependable power transfer and pivot operation is essential.
