Norton Rixson EM19 Electrified Intermediate Power Transfer Pivot with 3/4" Offset

Norton Rixson EM19 Electrified Intermediate Power Transfer Pivot with 3/4" Offset

Professional Electrified Pivot Solution for Standard-Duty Commercial Doors

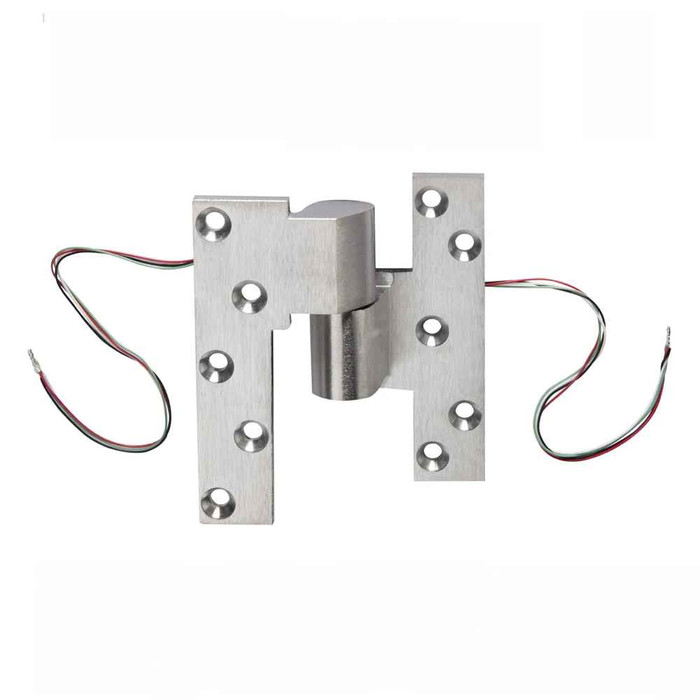

The Norton Rixson EM19 is an offset-hung, electrified power transfer pivot designed for standard-duty commercial door applications. This intermediate pivot features a 3/4" (19mm) offset design with power transfer capability for four, six, eight, or twelve wire configurations. The factory-assembled door and jamb portions provide reliable electrical continuity while maintaining proper door operation. Fire-rated options are available for assemblies requiring up to 3-hour fire ratings.

Professional Features & Benefits

• Power Transfer Design: 3/4" offset power transfer pivot enables electrical continuity through the door hinge line for electrified hardware integration.
• Wire Configuration Options: Available with four, six, eight, or twelve wire specifications to accommodate various electrical requirements and system complexity.
• Fire-Rated Construction: Available for fire door assemblies with ferrous material construction, supporting up to 3-hour fire ratings for code compliance.
• Factory Assembly: Door and jamb portions are factory assembled and cannot be separated, ensuring proper alignment and electrical continuity.
• Standard-Duty Rating: Engineered for standard-duty commercial applications with reliable performance in moderate-traffic environments.
• ElectroLynx® Compatibility: Optional ElectroLynx® quick-connect system available with suffix "QC#" for simplified wiring connections.
• Installation Flexibility: Available in 1-1/2" offset option and includes both wood and machine screws for various door and frame materials.
• Manufacturer Warranty: 2-year limited warranty provides confidence and protection for commercial installations.

Technical Specifications

• Application: Electrified
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Handed
• Duty Level: Standard Duty
• Electronic: No
• Fasteners: Torx Screws Optional
• Fire Rated Time: 3 hours
• Fire Rating: Yes
• Hang Type: Offset Hung
• Mounting Method: Center Hung
• Pivot Type: Intermediate
• Product Attribute: Pivots
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Subgroup: Pivots and Pivot Sets
• Product Type: Electrified Pivots
• Series: EM19 Series
• Subcategory: Intermediate Pivots
• Warranty: 2 Year Limited

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness and frame compatibility for the 3/4" offset design.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper alignment for electrical continuity.
3. Prepare door and frame by drilling required holes and routing as specified. Door edges must be beveled 1/8" in 2" per manufacturer requirements.
4. Install the factory-assembled pivot unit using provided wood and machine screws, ensuring secure mounting and proper electrical connections.
5. Route electrical wiring through the pivot assembly according to wire count specifications (four, six, eight, or twelve wires) and connect to electrified hardware.
6. Test pivot operation and electrical continuity to verify proper function throughout the full range of door movement. Always use M19 intermediate pivot for proper door installation.

Professional Applications

• Commercial Office Buildings with Electrified Access Control
• Educational Facilities with Security Systems
• Healthcare Institutions with Electronic Door Hardware
• Retail Establishments with Loss Prevention Systems
• Industrial Facilities with Automated Door Control
• Government Buildings with Integrated Security
• Fire-Rated Door Assemblies Requiring Electrical Continuity

Why Choose Norton Rixson Quality?

Norton Rixson EM19 pivots deliver professional-grade reliability with factory-assembled construction ensuring proper electrical continuity and door operation. The 2-year limited warranty and fire-rated options demonstrate the manufacturer's commitment to quality and code compliance. Engineered for demanding commercial applications where dependable electrified door hardware performance is essential.
