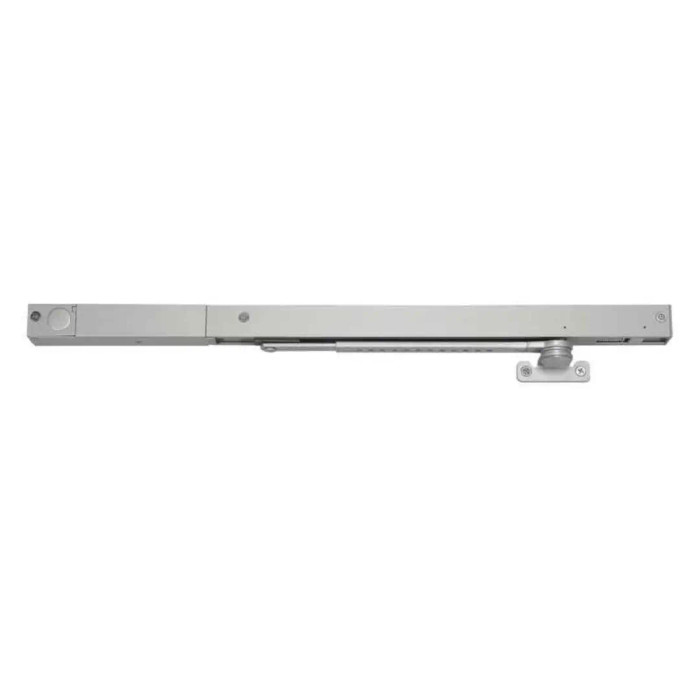

Norton Rixson Smok-Chek V Series Electrified Door Closer and Holder with Fire Safety Release

Norton Rixson Smok-Chek V Series Electrified Door Closer and Holder with Fire Safety Release

(No reviews yet) Write a Review

Model: 0601-24V-689
$1,513.00
$1,060.38
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,513.00
$1,060.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson Smok-Chek V Series Electrified Door Closer and Holder with Fire Safety Release

Professional Fire/Life-Safety Door Control Solution

The Norton Rixson Smok-Chek V Series combines electromechanical door closing and holding functions in a single-point system designed for fire and life safety applications. This versatile unit accommodates doors up to 4'0" and 250 lbs with 24VAC/DC or 120VAC operation, featuring automatic fire alarm integration that releases held doors for emergency egress. The non-handed design allows push or pull side mounting with adjustable spring surface closer functionality.

Professional Features & Benefits

  • Door Compatibility: Designed for doors up to 4'0" width with maximum 250 lbs door weight for versatile commercial applications.
  • Flexible Mounting Options: Push or pull side mounting capability with 2" header requirement and non-handed design for installation flexibility.
  • Dual Voltage Operation: Standard 24VAC/DC or 120VAC power options accommodate various electrical system requirements.
  • Fire Safety Integration: Concealed switch automatically disconnects hold open function when activated by fire alarm systems for code compliance.
  • Single-Point Design: Electromechanical closer and holder combination eliminates need for separate devices in space-constrained applications.
  • Adjustable Reveal Accommodation: Standard 3-1/2" reveal on push side, maximum 1/8" on pull side, with optional 550789 arm for reveals up to 5-1/2".
  • Fire Rating Certification: UL-cUL fire-rated up to 3 hours and CAL FIRE certified for code compliance in fire-rated openings.
  • Manufacturer Warranty: 2-year limited warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Weight: 250 lbs.
  • Electronic: Yes
  • Hold Open Feature: Yes
  • Holding Force: 35
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Power Operators
  • Product Type: Low Energy Operators
  • Series: Smok-Chek V
  • Subcategory: Surface Closers
  • Warranty: 2 Year Limited

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage (24VAC/DC or 120VAC) and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including hold open range per application requirements and mounting side selection.
  6. Restore power and test all functions including normal operation, fire alarm integration, and automatic door closing upon hold open release.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Cross Corridor Fire Doors
  • Healthcare Facility Fire Safety Systems
  • Educational Institution Emergency Egress
  • Commercial Building Fire Compartmentalization
  • Low Ceiling Clearance Applications
  • Multi-Tenant Residential Fire Doors
  • Government and Municipal Fire-Rated Openings

Why Choose Norton Rixson Quality?

Norton Rixson Smok-Chek V Series door closers deliver professional-grade fire safety performance with UL-cUL fire rating up to 3 hours and CAL FIRE certification. The 2-year limited warranty and electromechanical construction provide reliable operation in demanding commercial fire/life-safety applications. Engineered for code compliance where automatic door closing and fire alarm integration are essential for occupant protection.

Product Specs

Series:
Smok-Chek V
Warranty:
2 Year Limited
Product Group:
Door Controls
Product Subgroup:
Electromagnetic Door Holder / Releases
Product Type:
Electrified Door Closers
Subcategory:
Electromechanical Closers & Holders
Commercial/Residential:
Commercial
Electronic:
Yes
Holding Force:
35
Door Weight:
250 lbs.
Hold Open Feature:
Yes
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson 0601-24V-689 – Frequently Asked Questions

1) Will a Norton Rixson Smok-Chek V hold open a heavy cross-corridor fire door?
The Smok-Chek V handles doors up to 4 feet wide and 250 lbs, which covers most cross-corridor and stairwell fire doors. Holding force is 35 lbs. If the leaf is wider than 4'0" or heavier than 250 lbs, this is the wrong unit for that opening.
2) Does the Smok-Chek V closer release the door automatically when the fire alarm goes off?
Yes. A concealed switch drops the hold-open function when the fire alarm system signals, and the closer then shuts the door for compartmentalization and egress. That is the whole point of the unit: closer and electromagnetic holder in one body rather than a separate magnet and closer wired together.
3) Do I have to specify handing when ordering a Smok-Chek V electrified closer?
No handing to specify. The unit is non-handed and mounts push side or pull side. What you do have to choose is the arm configuration: push side mounting, pull side mounting, holder on the pull side with closer on the push side, deep reveal/180 degree swing versions, and holder-only versions without the closer.
4) What voltage does the Smok-Chek V run on, and can I tie it into an existing 120V circuit?
Two power options: 24VDC or 120VAC. Pick 120VAC if you are running the holder off building power at the header; pick 24VDC when it is fed from a fire alarm panel or low voltage power supply. Confirm your supply before ordering, because voltage is built into the part, not field selectable.
5) Is the Smok-Chek V fire rated for a 3-hour opening?
UL-cUL fire rated up to 3 hours, and CAL FIRE certified. That covers cross-corridor fire doors, stair doors, and fire compartmentation openings in healthcare, schools, and government buildings.
6) What should be used instead of a Smok-Chek V on a double egress cross corridor pair?
A double egress pair swings each leaf the opposite way, which is outside what a standard non-handed surface closer-holder arm set is arranged for. The Sargent 351EHTD is built for that opening specifically - it is an electromechanical double egress closer-holder with fire-rated hold open, Grade 1 heavy duty. On a normal single-swing corridor door, the Smok-Chek V covers doors to 250 lbs with push or pull side arms.
7) Can I get a Smok-Chek V holder without the door closer built in?
Yes. Three of the arm configurations are holder only: pull side mounting holder only, push side mounting holder only, and push side holder only with the deep reveal/180 degree swing arm. Use those where the door already has a closer you are keeping and you only need the electromagnetic hold-open with alarm release.
8) How much header space does a Smok-Chek V need above the door?
It needs 2 inches of header. That is why it gets specified in low ceiling clearance jobs where a separate wall magnet and surface closer will not fit, since the closing and holding functions live in one single-point unit.
9) Smok-Chek V or a multi-point hold open closer, which do I need?
The Smok-Chek V is a single-point unit: it holds at one position. If you need the door to hold at multiple points along the swing, the Sargent 2300 Grade 1 Fire Guard electromechanical closer is a multi-point hold open. The Sargent 2409 is the single-point equivalent in that line. Multi-point matters where traffic patterns want the door parked at different angles; single point is simpler and is what most cross-corridor doors get.
10) Can a standard non-electrified surface closer be used where a Smok-Chek V is called for?
No. A plain surface closer has no electrical connection and no way to receive a signal from the fire alarm, so a door held open by a mechanical hold open arm would stay open in an alarm. The Smok-Chek V is an electronic unit run on 24VDC or 120VAC, and the hold open drops out on alarm. Where a Grade 1 heavy duty electromechanical alternative is needed, the Sargent 2409 Fire Guard single point and 2300 Fire Guard multi-point work on the same principle.
11) What is the difference between a single-point and a multi-point electromechanical hold open closer?
Single point means the door holds at one preset position; multi-point means it can be held anywhere through a range of the swing. The Smok-Chek V is a single-point closer-holder with a 35 holding force. The Sargent 2300 Fire Guard is the multi-point arrangement, Grade 1 heavy duty in the 2300 Series, for openings where the door needs to stand open at more than one angle. Both drop the door on a fire alarm signal.
12) Is a magnetic door holder a substitute for a Smok-Chek V?
Not on its own. A wall or floor magnet only holds the door - it does not close it, so the opening still needs a separate surface closer and the two devices have to be coordinated. The Smok-Chek V is a combined electromechanical closer and holder in one unit, which is why it suits headers with limited space. If only the holding function is wanted because a closer is already on the door, the Smok-Chek V is also arranged as holder-only in both push side and pull side mounting.
13) Which electromechanical closer-holder should be specified when the opening calls for a Grade 1 heavy duty device by name?
When the drawing calls out ANSI Grade 1 heavy duty in writing, the Sargent Fire Guard units carry that designation: the 2409 Series single point and the 2300 Series multi-point are both listed Grade 1 heavy duty, as is the 351EHTD double egress closer-holder. All three are electromechanical hold open closers with fire alarm release, the same operating principle as the Smok-Chek V.
14) What finishes does the Smok-Chek V come in for matching the rest of a building's door hardware?
Six finishes: 689 aluminum, 690 dark bronze, 691 light bronze, 696 satin brass painted, BSP black suede powder, and WSP white suede powder. The suede powder finishes are the ones people pick to blend the unit into a painted header or ceiling.
