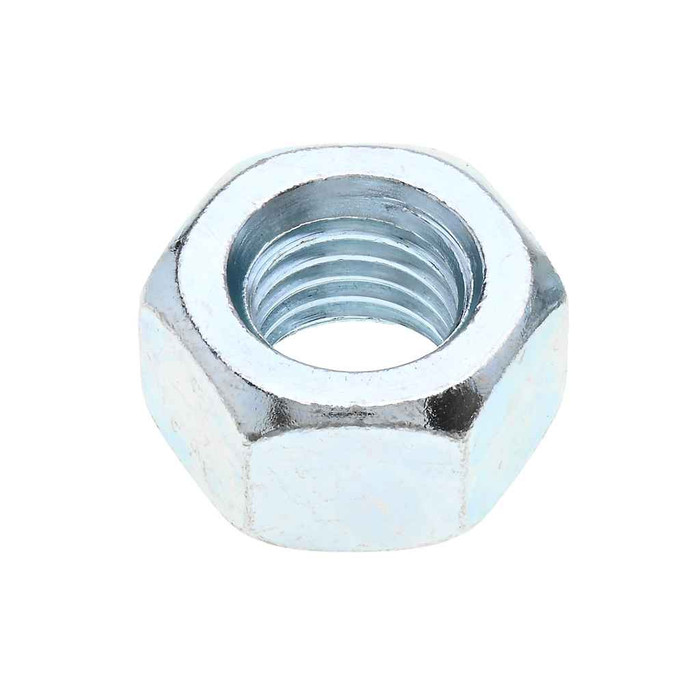

Nuts 3/4-10 Hvy Hx Nut St-zn (Jar 29)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Fastener Head Height:
- 47/64 in.
- Fastener Head Width:
- 1.212 - 1.250 in.
- Fastener Height:
- 0.710 - 0.758
- Fastener Width:
- 1.382 - 1.443
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 2
- Hardness:
- Rockwell B68-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Heavy_Hex_Nut_Gr_2_and_18-8_SS.pdf
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 4.73 lbs
- Product Width:
- 3.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 10
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Heavy Hexagon Nut
- Type2:
- Heavy Hexagon Nut
- Series:
- JHHN
- Product Finish:
- Zinc
- Product Details:
- Heavy Hexagon Nut
- Product Material:
- Steel
Metallics JHHN34 – Frequently Asked Questions
1) What thread does the Metallics JHHN34 heavy hex nut take, and will it run on 3/4 inch all-thread rod?
It's a 3/4-10 nut, 10 threads per inch, which is standard coarse 3/4 inch UNC. It threads onto 3/4-10 rod, anchor bolts, or hex bolts of the same pitch. It will not run on 3/4-16 fine thread.
2) Is a Grade 2 zinc heavy hex nut strong enough for overhead conduit and pipe hangers?
The JHHN34 is a Grade 2 steel nut with a zinc finish, hardness Rockwell B68 to C32, and it's sold for electrical, plumbing, heating and air conditioning work, which is exactly the hanger, strut and trapeze duty most 3/4-10 rod sees. If your drawing calls out a Grade 5 or Grade 8 nut for a structural or high-tension connection, Grade 2 is not a substitute.
3) Does the Metallics JHHN34 nut meet Buy American or ARRA requirements for a public job?
No. The JHHN34 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project has domestic-sourcing language in the specification, this nut will not satisfy it.
4) What wrench or socket size does this 3/4-10 heavy hex nut need?
Across the flats it measures 1.212 to 1.250 inches, so a 1-1/4 inch wrench or socket fits. Corner to corner it runs 1.382 to 1.443 inches, which is what you need clearance for in a tight channel or strut run.
5) How thick is the Metallics JHHN34 nut, and how much rod engagement do I need?
Nut height is 47/64 in. (roughly 0.710 to 0.758 in. measured), so plan on at least that much rod projecting past the connection plus a thread or two showing for a full-engagement inspection.
6) Can I use these zinc nuts outdoors or in a wet mechanical room?
Zinc plating over steel gives moderate corrosion protection, fine for interior mechanical rooms and dry service. For sustained wet, washdown, coastal or chemical exposure, specify an 18-8 stainless or hot dip galvanized heavy hex nut instead, since zinc plate will eventually sacrifice and rust-bloom.
7) How does the JHHN34 ship and what is the minimum I can order?
It ships in a jar, with a stated jar weight of 4.73 lbs, and the order minimum is 25 each. Jar packaging is practical for a van stock or a shop bin rather than loose bagged counts.
8) I need a different size or a larger count of Metallics heavy hex nuts. Is that possible?
Yes. Beyond the 3/4-10 JHHN34, other sizes and quantities in the Metallics JHHN heavy hex nut series are available by request.
