NUVO Lighting NUV-63-505 20 Watt - 34 Inch LED White Under Cabinet Light - CCT Selectable

NUVO Lighting 63-505 20W, 34in LED White Under Cabinet Light, CCT Selectable

(No reviews yet) Write a Review

Model: 63-505
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.99
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting 63-505 20W, 34in LED White Under Cabinet Light, CCT Selectable

SATCO|NUVO CounterQUICK Under Cabinet Fixtures were developed with a simple purpose – design a high quality under cabinet lighting solution that is easy to install. Now with smart Wi-Fi technology, CounterQUICK has become apart of the STARFISH Smart Home Family !

No matter how you hang it, install it, connect it, link it, wire it, or light it— CounterQUICK is designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long maintenance free life. Plus, sku-saving selectable CCT at the switch! It's that quick. It's that easy!

20 Watt - 34 Inch LED White Under Cabinet Light - CCT Selectable

  • Warranty: 5 Year Limited - Fixtures
  • Dimensions: L:34.00" W:3.50" H:1.00"

63-505 Spec Sheet

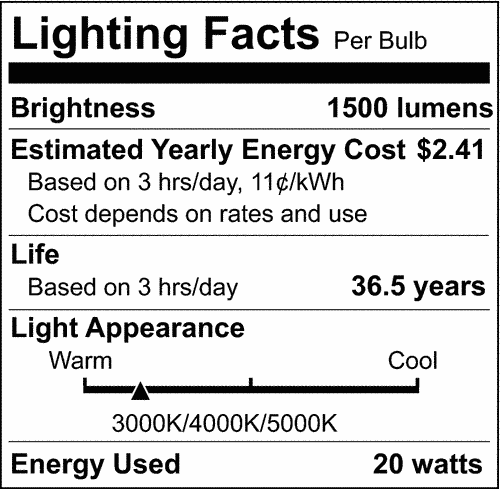

63-505 Lighting Facts Label

63-505 Instructions

Manufacturer Resources

Product Specs

CCT Selectable:
Yes
CRI:
90+
Dimmable:
Yes
Lamp Base:
Integrated
Lamp Shape:
Integrated LED
Location Rating:
Dry
Lumens:
1500L
Product Type:
Under Cabinet
RoHS Compliant:
Yes
Safety Listing:
cETLus
Subcategory:
Linear Strip
Technology:
LED
Warranty:
5 Year Limited - Fixtures
Bulb Base:
Integrated LED
Bulbs Included:
Integrated
Product Group:
Indoor Lighting
Product Subgroup:
Under Cabinet
Avg Rated Hours:
40000
CA Prop 65 Chemicals:
Lead
Base Material:
Aluminum
Location Indoor/ Outdoor:
Indoor
Product Voltage:
120V
Product Length:
34.00"
Mounting Method:
Under Cabinet
Product Style:
Utility
Product Height:
1"
Product Category:
Under Cabinet & Cove
Product Weight:
1.88lbs
Product Width:
3.5"
Product Wattage:
20W

NUVO Lighting 63-505 – Frequently Asked Questions

1) Can I change the color temperature on the NUVO CounterQUICK 63-505, or do I order a fixed Kelvin?
Color temperature is selectable on the fixture itself, set by a switch on the unit rather than by ordering a specific Kelvin version. That is the point of the CounterQUICK line: one part number covers the range, so you can stock a single SKU and match whatever the rest of the kitchen or breakroom is running.
2) Can the NUVO 63-505 under cabinet light be used in a garage, covered patio, or damp bathroom?
No. It carries a dry location rating and is listed for indoor use only, so keep it to kitchens, offices, breakrooms, display cases, and similar conditioned interior spaces. A covered patio, an unconditioned garage, or a spot exposed to shower steam needs a damp or wet rated fixture instead.
3) Is the NUVO 63-505 under cabinet fixture dimmable, and what voltage does it run on?
It is a dimmable 120V fixture drawing 20 watts. That means it wires to standard line voltage residential or commercial branch circuits with no transformer or driver box, and it can be put on a dimmer where the room calls for it.
4) Do I need to buy bulbs for the NUVO 63-505, and will lamps ever need changing?
No lamps to buy. The LED is integrated into the fixture and rated for 40,000 hours, so there is no relamping cycle to schedule. For an MRO or property maintenance program that is the appeal: install it and it comes off the lamp replacement list.
5) Is the NUVO 63-505 safety listed for commercial jobs?
It carries a cETLus safety listing, which covers both US and Canadian requirements, so it can be specified on jobs on either side of the border. It is also RoHS compliant.
6) Can I link several NUVO CounterQUICK fixtures together along a run of cabinets?
The CounterQUICK line is built around linking and connection options so a run of cabinets can be fed from one supply point, and the 63-505 is part of that family. For a long wall, plan the layout in 34 inch increments against your cabinet widths and pick shorter CounterQUICK lengths for the filler sections.
7) Does the NUVO 63-505 carry a California Prop 65 warning?
Yes, lead is the listed Prop 65 chemical for this fixture. If you are shipping to a California jobsite or selling into that market, the warning has to travel with the product.
