NUVO Lighting TH217 1-Light, P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$24.99

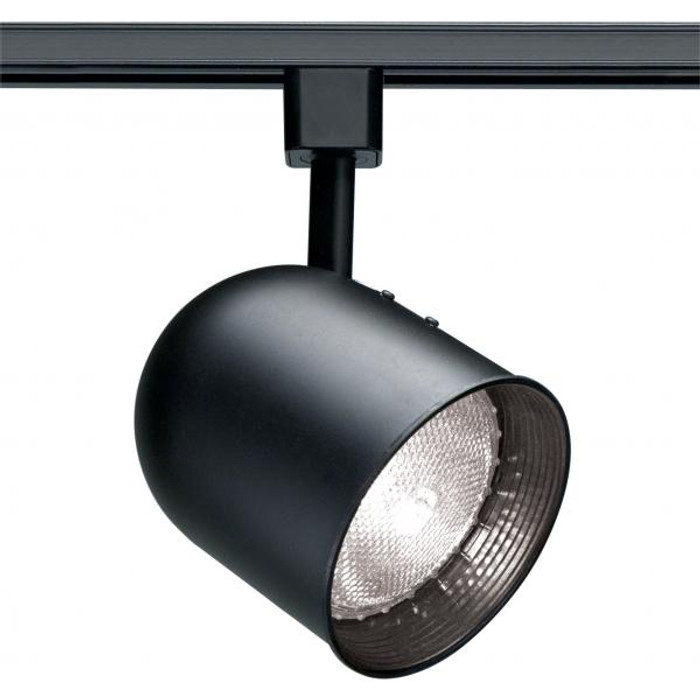

NUVO Lighting NUV-TH217 1 Light - PAR20 - Track Head - Short Bullet Cylinder - Black Finish

NUVO Lighting TH217 1-Light, PAR20, Track Head, Short Bullet Cylinder, Black Finish

(No reviews yet) Write a Review

Model: TH217
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting TH217 1-Light, PAR20, Track Head, Short Bullet Cylinder, Black Finish

1 Light - PAR20 - Track Head - Short Bullet Cylinder - Black Finish

  • Warranty: 1 Year Limited - Fixtures
  • Dimensions: L:4.50" W:3.50" H:3.50" E:7.50"

    • Manufacturer Resources

    Product Specs

    CCT Selectable:
    No
    Dimmable:
    Lamp Dependent
    Lamp Base:
    Medium
    Lamp Shape:
    PAR20
    Location Rating:
    Dry
    Number of Bulbs:
    1
    Product Type:
    Track Head
    RoHS Compliant:
    Yes
    Safety Listing:
    cETLus
    Subcategory:
    Track Head
    Technology:
    Incandescent
    Warranty:
    1 Year Limited - Fixtures
    Bulb Base:
    E26
    Bulbs Included:
    No
    Extension:
    7.5"
    Product Group:
    Indoor Lighting
    Product Subgroup:
    Track Lights
    CA Prop 65 Chemicals:
    Lead
    Base Material:
    Glass / Metal
    Location Indoor/ Outdoor:
    Indoor
    Instructions:
    https://assets.satco.com/dj18eqo18/image/upload/v1713463030/products/TH217/TH217_Instructions.pdf
    Specifications:
    https://media.satco.com/specsheets/pdf/TH217.pdf
    Product Voltage:
    120V
    Product Length:
    4.50"
    Mounting Method:
    Ceiling
    Product Style:
    Transitional
    Product Height:
    3.5"
    Product Category:
    Track Lighting
    Product Weight:
    0.98lbs
    Product Width:
    3.5"
    Product Wattage:
    50W

    NUVO Lighting TH217 – Frequently Asked Questions

    1) What bulb does the NUVO TH217 track head take, and does it come with one?
    The TH217 takes a single PAR20 lamp with a medium E26 screw base, and no bulb is included. Max wattage is 50W, so pick a PAR20 at or under that rating. An LED PAR20 with an E26 base drops straight in and will run far cooler than the incandescent lamp the head is rated around.
    2) Is the TH217 track head safe for a covered porch or a bathroom over a shower?
    No. The TH217 is rated for dry locations and indoor use only, so keep it out of covered exterior soffits, unenclosed porches, and any damp or wet area like a shower or above a tub. For those spots you need a head carrying a damp or wet location rating.
    3) Can I dim this NUVO track head?
    Dimming on the TH217 is lamp dependent. The head itself has no driver or dimming electronics, it is an incandescent-technology PAR20 holder, so whether it dims comes down to the lamp you install and the dimmer on the circuit. A dimmable PAR20 on a compatible 120V dimmer will dim; a non-dimmable LED lamp will not.
    4) How far does the NUVO TH217 bullet cylinder head hang below the track?
    Extension is 7.5 inches. The head body itself measures 4.50 inches long by 3.50 by 3.50, and the whole assembly weighs 0.98 lbs, light enough that a standard ceiling-mounted track run carries a full row of them without trouble. If you are working under a low ceiling or near a doorway, that 7.5 inch drop is the number to check for head clearance.
    5) Does the TH217 have a safety listing I can show an inspector?
    It carries a cETLus safety listing, which covers both the US and Canada, and the fixture is RoHS compliant. Worth noting for submittals: the Prop 65 chemical disclosure on this head is lead, which matters if you are specifying into California work.
    6) Is the TH217 a 120V line voltage head or does it need a transformer?
    Line voltage, 120V. No low-voltage transformer or remote driver is involved, so it goes onto a standard 120V track circuit as is. Single lamp head, one PAR20 socket.
    7) Where do I get installation instructions and the spec sheet for the NUVO TH217?
    Satco publishes both for the TH217: an installation instruction PDF and a full specification sheet, linked in the product data. Pull the spec sheet before you submit it on a job, it has the photometrics and mounting detail an electrical reviewer will ask for.
