NUVO Lighting TH220 1-Light, P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$19.99

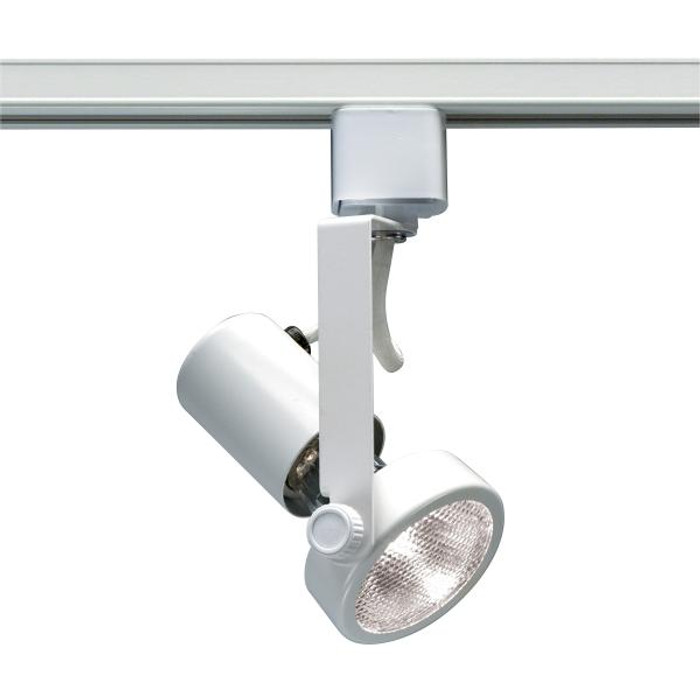

NUVO Lighting NUV-TH220 1 Light - PAR20 - Track Head - Gimbal Ring - White Finish

NUVO Lighting TH220 1-Light, PAR20, Track Head, Gimbal Ring, White Finish

(No reviews yet) Write a Review

Model: TH220
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting TH220 1-Light, PAR20, Track Head, Gimbal Ring, White Finish

1 Light - PAR20 - Track Head - Gimbal Ring - White Finish

  • Warranty: 1 Year Limited - Fixtures
  • Dimensions: W:2.75" H:2.75" E:6.63"

    • Manufacturer Resources

    Product Specs

    CCT Selectable:
    No
    Dimmable:
    Lamp Dependent
    Lamp Base:
    Medium
    Lamp Shape:
    PAR20
    Location Rating:
    Dry
    Number of Bulbs:
    1
    Product Type:
    Track Head
    RoHS Compliant:
    Yes
    Safety Listing:
    cETLus
    Subcategory:
    Track Head
    Technology:
    Incandescent
    Warranty:
    1 Year Limited - Fixtures
    Bulb Base:
    E26
    Bulbs Included:
    No
    Extension:
    6.63"
    Product Group:
    Indoor Lighting
    Product Subgroup:
    Track Lights
    CA Prop 65 Chemicals:
    Lead
    Base Material:
    Glass / Metal
    Location Indoor/ Outdoor:
    Indoor
    Instructions:
    https://assets.satco.com/dj18eqo18/image/upload/v1713463030/products/TH220/TH220_Instructions.pdf
    Specifications:
    https://media.satco.com/specsheets/pdf/TH220.pdf
    Product Voltage:
    120V
    Mounting Method:
    Ceiling
    Product Style:
    Transitional
    Product Height:
    2.75"
    Product Category:
    Track Lighting
    Product Weight:
    0.74lbs
    Product Width:
    2.75"
    Product Wattage:
    50W

    NUVO Lighting TH220 – Frequently Asked Questions

    1) What bulb does the NUVO TH220 track head take, and is one included?
    The TH220 takes a single PAR20 lamp with an E26 medium base, and no bulb ships with the head. Maximum wattage is 50W at 120V, so any PAR20 you fit needs to stay at or under that. Dimming depends entirely on the lamp you install, not the fixture.
    2) Can I put a NUVO TH220 track head in a covered exterior walkway or a bathroom over a shower?
    No. The TH220 is a dry location, indoor only track head. Keep it out of damp or wet areas, which rules out covered exterior walkways, shower and tub zones, and unconditioned spaces where condensation forms. For those openings you need a head with a damp or wet location rating.
    3) How far does this PAR20 gimbal track head hang below the track, and how much space does it need to aim?
    Extension is 6.63 inches from the track, and the head itself measures 2.75 inches wide by 2.75 inches high. It weighs 0.74 lbs, so it adds very little load per head on a run. The gimbal ring lets you rotate and tilt the lamp for accent aiming, so allow clearance around that 6.63 inch drop for the full swing.
    4) Is the TH220 an LED fixture or does it need an incandescent lamp?
    The TH220 is an incandescent technology track head, meaning it is a lampholder with no integrated LED or driver. Because it uses an E26 medium base, you can lamp it with an LED PAR20 retrofit instead of an incandescent as long as you stay within the 50W maximum. Dimming behavior follows whatever lamp you choose.
    5) Does the NUVO TH220 track head carry a safety listing for a commercial job?
    Yes, it is cETLus listed, which covers both US and Canadian requirements for a dry location indoor fixture. It is also RoHS compliant. Note the California Prop 65 declaration for lead, which matters if you are specifying into a California facility.
    6) What is the TH220 track head made of and what finish does it come in?
    Glass and metal construction, offered in white only. There is a single orderable configuration, so if you are standardizing heads across a retail floor or lobby every unit will match.
    7) Is the TH220 a ceiling mounted track head, and can I get install instructions before I order?
    It is a ceiling mount track head that installs onto a track run rather than directly to a junction box. NUVO publishes both a spec sheet and an installation instruction PDF for the TH220, so you can confirm the track connector and aiming detail before committing to a quantity.
    8) How many lamps does one TH220 head hold if I am counting circuit load on a track run?
    One lamp per head, rated 50W maximum at 120V. Count 50W per head when you total the run against the track circuit capacity, less if you lamp it with LED PAR20 retrofits.
