NUVO Lighting TH492 LED, 12W F...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$69.99

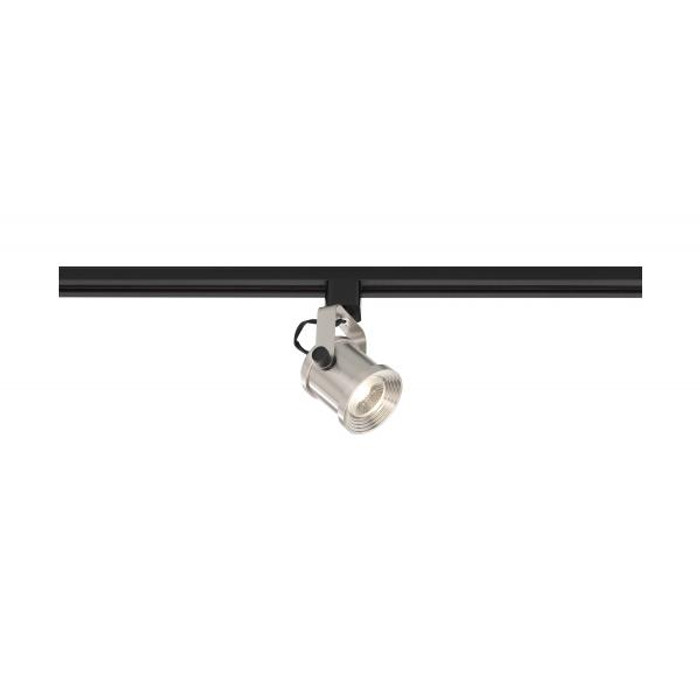

NUVO Lighting NUV-TH492 LED - 12 Watt Forged Track Head - Brushed Nickel - 24 deg. Beam Angle

NUVO Lighting TH492 LED, 12W Forged Track Head, Brushed Nickel, 24 degree Beam Angle

(No reviews yet) Write a Review

Model: TH492
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$69.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting TH492 LED, 12W Forged Track Head, Brushed Nickel, 24 degree Beam Angle

LED - 12 Watt Forged Track Head - Brushed Nickel - 24 deg. Beam Angle

  • Warranty: 3 Year Limited - Fixtures
  • Dimensions: L:3.00" W:2.75" H:2.75" E:6.25"

    • Manufacturer Resources

    Product Specs

    CCT Selectable:
    No
    CRI:
    90
    Dimmable:
    Yes
    Lamp Base:
    Integrated
    Lamp Shape:
    Integrated LED
    Location Rating:
    Dry
    Lumens:
    1020L
    Product Type:
    Track Head
    RoHS Compliant:
    Yes
    Safety Listing:
    cETLus
    Subcategory:
    Track Head
    Technology:
    LED
    Warranty:
    3 Year Limited - Fixtures
    Bulb Base:
    Integrated LED
    Bulbs Included:
    Integrated
    Extension:
    6.25"
    Product Group:
    Indoor Lighting
    Product Subgroup:
    Track Lights
    Avg Rated Hours:
    30000
    CA Prop 65 Chemicals:
    Lead
    Base Material:
    Aluminum
    Location Indoor/ Outdoor:
    Indoor
    Instructions:
    https://assets.satco.com/dj18eqo18/image/upload/v1713463030/products/TH492/TH492_Instructions.pdf
    Specifications:
    https://media.satco.com/specsheets/pdf/TH492.pdf
    Product Voltage:
    120V
    Product Length:
    3.00"
    Mounting Method:
    Ceiling
    Product Style:
    Contemporary
    Product Height:
    2.75"
    Product Category:
    Track Lighting
    Product Weight:
    0.64lbs
    Product Width:
    2.75"
    Product Wattage:
    12W

    NUVO Lighting TH492 – Frequently Asked Questions

    1) Can this forged track head be used in a covered exterior walkway or a bathroom?
    No. The TH492 is rated for dry locations and indoor use only. Covered exterior soffits, walkways, parking structures, and shower or tub zones need a damp or wet rated fixture instead. Dry interior retail, gallery, lobby, and residential ceilings are where this head belongs.
    2) Does the NUVO TH492 carry a safety listing for commercial installation?
    The TH492 is cETLus listed, which covers both US and Canadian safety requirements, and it is RoHS compliant. Note the California Prop 65 content listing for lead, which matters if you are specifying for a California facility and need to pass that disclosure through.
    3) Can I switch the color temperature on the TH492, or is it fixed?
    Fixed. The TH492 is not CCT selectable, so there is no field switch for color temperature. If you are adding heads to an existing run and need them to match, confirm the color temperature of what is already installed before you order, because you cannot adjust this one after the fact.
    4) How much clearance does the TH492 need below the ceiling?
    Figure on 6.25 inches of extension from the track, which is the drop from the mounting point to the head. That is the number to check against sprinkler heads, soffit depth, cabinet doors, and any low-clearance ceiling condition. The head itself is 3.00 inches long and 2.75 inches in both height and width, so aiming clearance between adjacent heads is tight but workable.
    5) What finish does the TH492 come in, and what is the housing made of?
    Brushed nickel is the only finish on the TH492, and the body is aluminum. Aluminum housings help pull heat off an integrated LED, which is part of what supports the 30,000 hour rated life. If you need black or white heads to match an existing track run, this model will not get you there.
