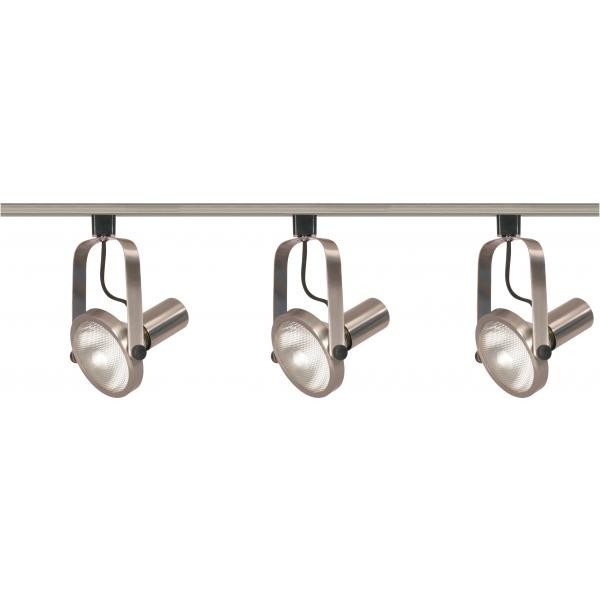

NUVO Lighting TK343 3 Light, PAR30, Gimbal Ring Track Kit, 4 foot Track, Brushed Nickel

The TK343 kit ships with a 4 foot TR127 track section, one TP155 floating power feed, three TH301 gimbal ring track heads, and all required mounting hardware. The only thing you add is lamps: three PAR30 bulbs with an E26 medium base, which are not included.

No. The TK343 is rated for indoor dry locations only, so it should not go in a bath area exposed to shower moisture, an unconditioned garage that sees condensation, or any covered exterior space. For those spots you need a damp- or wet-location rated fixture.

Dimming on the TK343 depends entirely on the lamp you install, since no driver or ballast is built into the heads. Install dimmable PAR30 lamps on a 120V dimmer matched to the lamp type (incandescent/halogen dimmer for filament PAR30s, an LED-compatible dimmer for dimmable LED PAR30s) and the fixture will dim.

Extension from the mounting surface is 9.38 inches with the heads in place. The track itself runs 48 inches long and the assembly measures 4 inches in width and height. Factor the 9.38 inch drop into clearance over stairs, cabinet runs, or low ceilings before you lay out the run.

Ceiling mount is the stated mounting method for the TK343, and the kit's hardware is supplied for that. The floating power feed lets you bring the branch circuit in at a point along the track rather than only at one end, which helps when your existing ceiling box does not line up with where you want the run to start.

The TK343 carries a cETLus safety listing, valid for both US and Canadian installations, and is RoHS compliant and listed ADA compliant. Note the California Prop 65 disclosure for lead, which matters on public-facility submittals in California.

Yes, the TH301 heads use a gimbal ring, so each PAR30 lamp pivots within the ring for aiming at wall art, display shelving, or a retail feature wall. Three heads on a 48 inch track gives you roughly even spacing for a typical wall section, and the beam spread is set by which PAR30 lamp you choose, narrow spot through flood.

The TK343 is a single-circuit 120V system in brushed nickel, built from NUVO TR127 track with TH301 heads. It mates with other NUVO/Satco single-circuit track components, but it is not interchangeable with Halo, Juno, or Lightolier track profiles, so do not plan on hanging these heads on an existing run of another brand without confirming the track profile.

The complete kit weighs 5.88 lbs, light enough to be supported by the ceiling outlet box plus the supplied mounting hardware at the feed point, with the track fastened to the ceiling along its 48 inch length. Fasten into joists or use appropriate drywall anchors at the track's mounting points.
