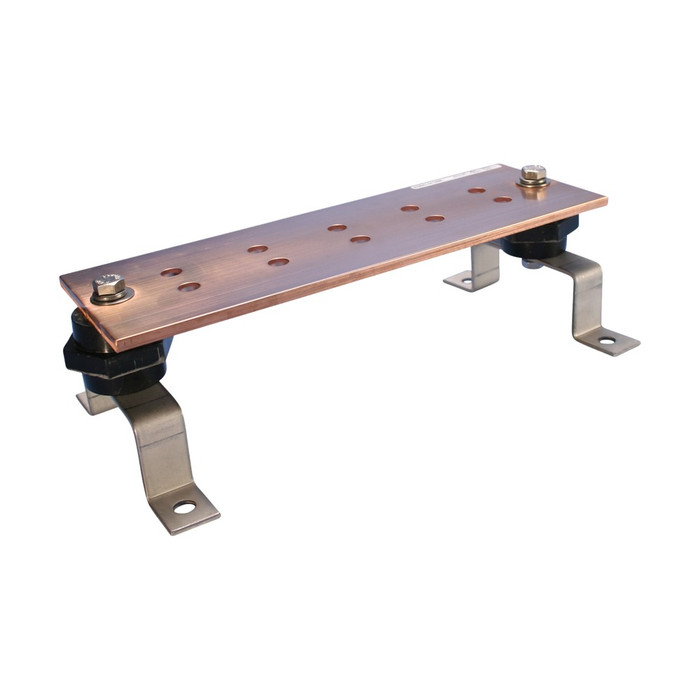

nVent CADDY EGBA144 Series Copper CC Grounding Busbar
The nVent CADDY EGBA144 Series is a family of copper grounding busbars engineered to serve as a single, organized termination point for multiple ground conductors in commercial, industrial, and telecommunications electrical systems. Built from solid copper measuring 4-Inch in width by 1/4-Inch in thickness, this CC-style busbar family is available in 12-Inch or 24-Inch lengths (models EGBA14412CC and EGBA14424CC), each drilled with a hole pattern that gives installers flexibility when laying out grounding connections. Its solid copper construction and CC busbar design make it a dependable choice for consolidating grounding and bonding conductors where a clean, centralized ground point is required.
Key Features
- Trade Dimensions: 4-Inch width x 1/4-Inch thickness across the series, available in 12-Inch or 24-Inch lengths (EGBA14412CC and EGBA14424CC) to fit standard grounding busbar mounting brackets and enclosures.
- Copper Construction: Solid copper material provides excellent electrical conductivity and long-term corrosion resistance for dependable grounding connections.
- CC Grounding Busbar Design: Configured as a CC-style grounding busbar for consolidating and distributing ground conductor terminations from a central point.
- Drilled Hole Pattern: Multiple mounting holes (15 holes on the 12-Inch EGBA14412CC length) allow ground conductors to be landed and organized on a single busbar without daisy-chaining.
- 1/4-Inch Thickness: The 1/4-Inch thick copper bar adds mechanical rigidity, helping the busbar hold its shape under repeated lug tightening.
- EGBA144 Series: Part of the nVent CADDY Erico EGBA144 series of grounding busbars, offered in both 12-Inch and 24-Inch lengths to suit different installation footprints.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Grounding and Bonding Systems
- Telecommunications and Data Center Grounding
- Commercial and Industrial Electrical Installations
- Panelboard and Equipment Grounding Assemblies
- Renovation and New Construction Electrical Projects
Why nVent CADDY?
nVent CADDY builds the EGBA144 series from solid copper for dependable long-term conductivity, with a drilled hole pattern that gives electricians and low-voltage installers flexibility when organizing ground conductor terminations at a single busbar. Offered in 12-Inch and 24-Inch lengths at 4-Inch width by 1/4-Inch thickness, this CC-style grounding busbar family delivers consistent, code-conscious grounding and bonding performance for commercial, industrial, and data/telecom electrical projects.
Manufacturer Resources
nVent CADDY Full Catalog
Product Specs
- list_batch:
- CDY-20260915
- Product Type:
- Ground Bar
- Series:
- EGBA144
- Configuration:
- CC Busbar
- Department:
- Electrical
- Product Group:
- Grounding & Bonding
- Product Subgroup:
- Grounding & Bonding
- Product Material:
- Copper
- Product Size:
- 12-Inch - 24-Inch
nVent CADDY EGBA14424CC – Frequently Asked Questions
1) What sizes does the nVent CADDY EGBA144 grounding busbar come in?
Two lengths: 12 inch (EGBA14412CC) and 24 inch (EGBA14424CC). Both are 4 inches wide and 1/4 inch thick solid copper. Pick the 12 inch where panel or closet wall space is tight and you only need to land a handful of grounds; go to the 24 inch when you are consolidating a larger number of conductors at one point, such as a telecom room where every rack, cable tray and conduit bonds back to the same bar.
2) Will the EGBA144 fit standard grounding busbar mounting brackets?
The 4 inch by 1/4 inch bar section is the standard trade dimension used with grounding busbar mounting brackets and enclosures, so it lands on typical wall-mount insulator brackets. Note that insulators, standoff brackets and lugs are separate items, not part of the bar itself, so order them alongside it.
3) How many holes are on the 12 inch EGBA14412CC busbar?
The 12 inch EGBA14412CC is drilled with 15 holes. That lets each ground conductor be landed on its own lug position instead of daisy-chaining terminations, which is what an inspector wants to see in a telecom ground bar or equipment grounding assembly.
4) Is the EGBA144 busbar solid copper or plated?
Solid copper, not a plated or aluminum bar. That matters for two reasons on a grounding job: conductivity stays consistent over the life of the installation, and copper resists the corrosion that would otherwise build resistance at a lug face in a damp electrical room or a rooftop enclosure.
5) Is a copper grounding busbar the right choice instead of just bonding grounds together in the panel?
A busbar is what you use when several ground and bonding conductors need to terminate at one place, which is the normal condition in a telecom room, data center, or panelboard grounding assembly. Instead of daisy-chaining conductors, each one lands on its own hole on the bar, so a single connection can be removed or re-torqued without disturbing the others. The 1/4 inch copper section adds enough rigidity that the bar holds its shape under repeated lug tightening.
6) What does the CC in EGBA14412CC mean?
CC identifies the busbar configuration, the hole and drilling pattern layout of this nVent CADDY Erico grounding bar family. Both the 12 inch and 24 inch versions are CC style, so the hole layout is consistent whichever length you specify, and a facility can standardize on one pattern across multiple rooms.
7) Can the EGBA144 busbar be used for data center and telecom grounding, not just power?
Yes. Typical uses run from telecommunications and data center grounding to commercial and industrial electrical installations, panelboard and equipment grounding assemblies, and both renovation and new construction work. It is the same bar in each case, only the length changes with how many conductors you are landing.
